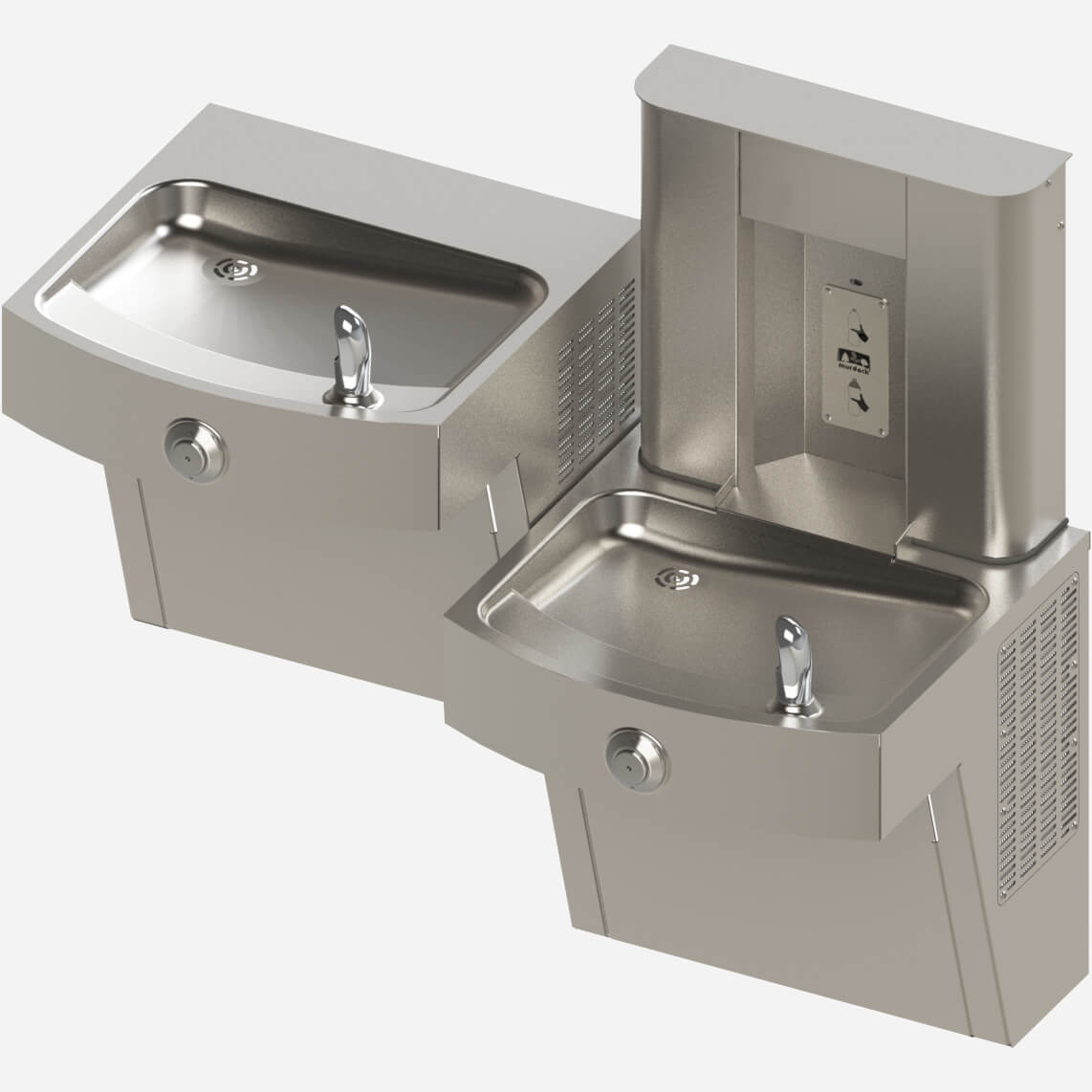

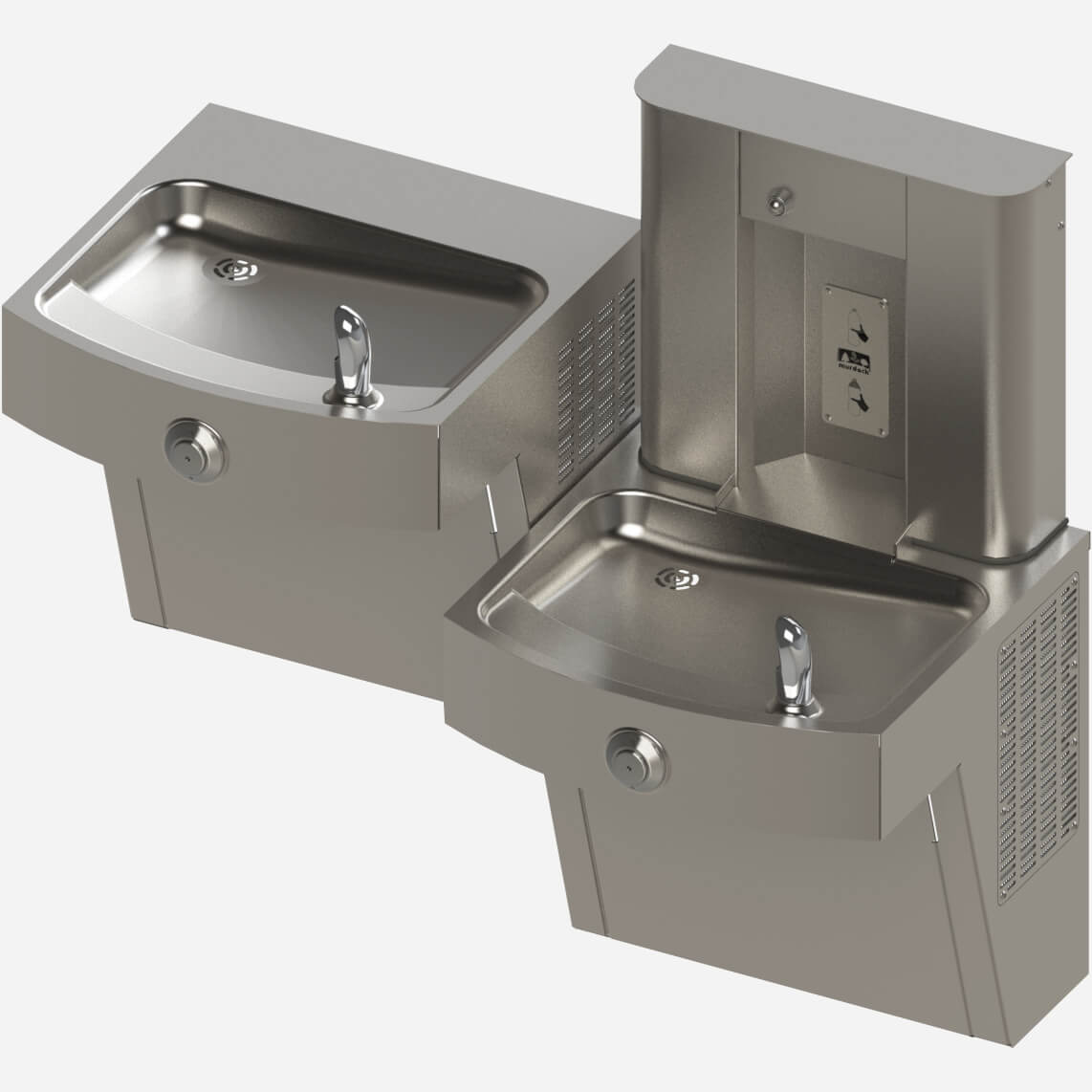

Model A172408S-FG-VR-BFS Series
14GA Stainless Steel, Vandal-Resistant, Wall-Mounted, Bi-Level Drinking Fountain with Heavy-Duty Water Bottle Filling Station - In-Unit Refrigeration (8GPH)
Murdock's 14-gauge vandal resistant water cooler is available as a ADA Bi-level wall mount unit. The water cooler is refridgerated with a in-unit chiller rated at 8 gallon (30.3 liter) per minute. The bottle filler is connected to the refrigerated water from the water cooler typically mounted on the deck of deck of the ADA lower unit. The lower water cooler can be positioned on the left side if -RBL is specified. The heavy-duty bottle filler features a hemispherical push button or sensor activation.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Barrier-Free 14-Gage Stainless Steel Wall Mount Bi-Level Water Cooler, 8 gph (30.3 lph) Refrigeration [Standard Model A172408S-FG-VR] | 0 | 2 MB | ||
| | Barrier-Free Bi-Level 14 Gage Stainless Steel, Vandal Resistant Water Cooler with Pushbutton Heavy Duty Bottle Filler (Standard Model A172408S-FG-VR-BF1S] | 0 | 256 KB | ||
 | | 14GA Stainless Steel, Vandal-Resistant, Wall-Mounted, Bi-Level Drinking Fountain with Push Button Heavy-Duty Water Bottle Filling Station - In-Unit Refrigeration (8GPH) | 0 | 690 KB | ||
| | 14GA Stainless Steel, Vandal-Resistant, Wall-Mounted, Bi-Level Drinking Fountain with Push Button Heavy-Duty Water Bottle Filling Station - In-Unit Refrigeration (8GPH) | 0 | 1 MB | ||
| | Pushbutton Deck Mounted Bottle Filler for Barrier-Free Water Cooler/Drinking Fountain (Standard Model BF1S) | 0 | 749 KB | ||
| | Sensor Activated Deck Mounted Bottle Filler for Barrier-Free Water Cooler/Drinking Fountain (BF2S, BF2S-BCD, BF2S-BAT) | 0 | 869 KB | ||
| | Option: Concealed Support Carrier – Wall-Mounted, Bi-Level Drinking Fountains [typically for A172408S-FG-VR, A172400S-FG-VR including installation with BFS bottle fillers] | 0 | 318 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Pressure Water Coolers | 0 | 146 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 0 | 219 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | 14 Gauge, All-Stainless Steel |
| Compliances | ANSI/ASHRAE 18, ASME A112.19.3, IAPMO tested to NSF/ANSI 61, Section 9, UPC, Lead-Free Federal Law 111-380, CE complaint for 220 V electrical |
| Refrigeration | In-Unit 8 GPH Refrigeration |
| Product Features | Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Heavy-Duty 14 Gauge Stainless Steel Construction, Maintenance Advantage® – Easy Maintenance Design, Round Vandal-Resistant Pushbutton, Heavy Duty Deck Mount Bottle Filler |
| Activation | Drinking fountain - round vandal-resistant button, Bottle filler - hemispherical pushbutton |
| Accessibility | ADA Compliant |
| Style | A17 Series, 14-Gauge Stainless Steel Drinking Fountain |
| No. of Stations | 2 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler) |
Options
Models
Barrier-Free 14 Gauge Stainless Steel Bi-Level Wall-Mounted Water Cooler with Heavy-Duty Bottle FillerA172408S-FG-VR-BF1SLower ADA Drinking Fountain on Right Side with Pushbutton Heavy-Duty Bottle FillerA172408S-FG-VR-RBL-BF1SLower ADA Drinking Fountain on Left Side with Pushbutton Heavy-Duty Bottle Filler
