Model ECO-BF Series
Economy Outdoor Pedestal Bottle Filler

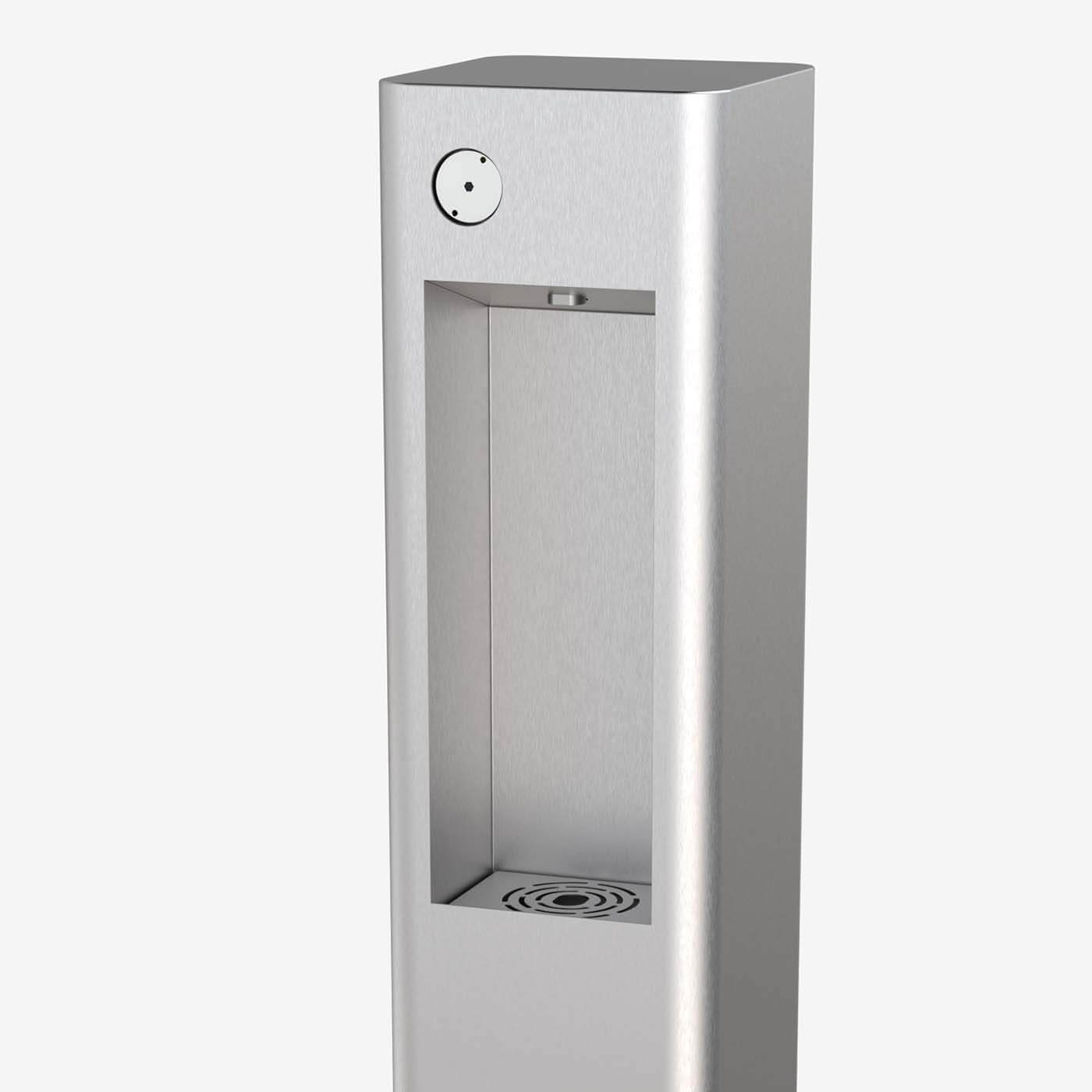

ECO-BF is an economical outdoor pedestal bottle filling station. The pedestal is 48" (1,219 mm) high x 7-7/8" (200 mm) wide x 7-7/8" front-to-back.
- Hand button operation is standard

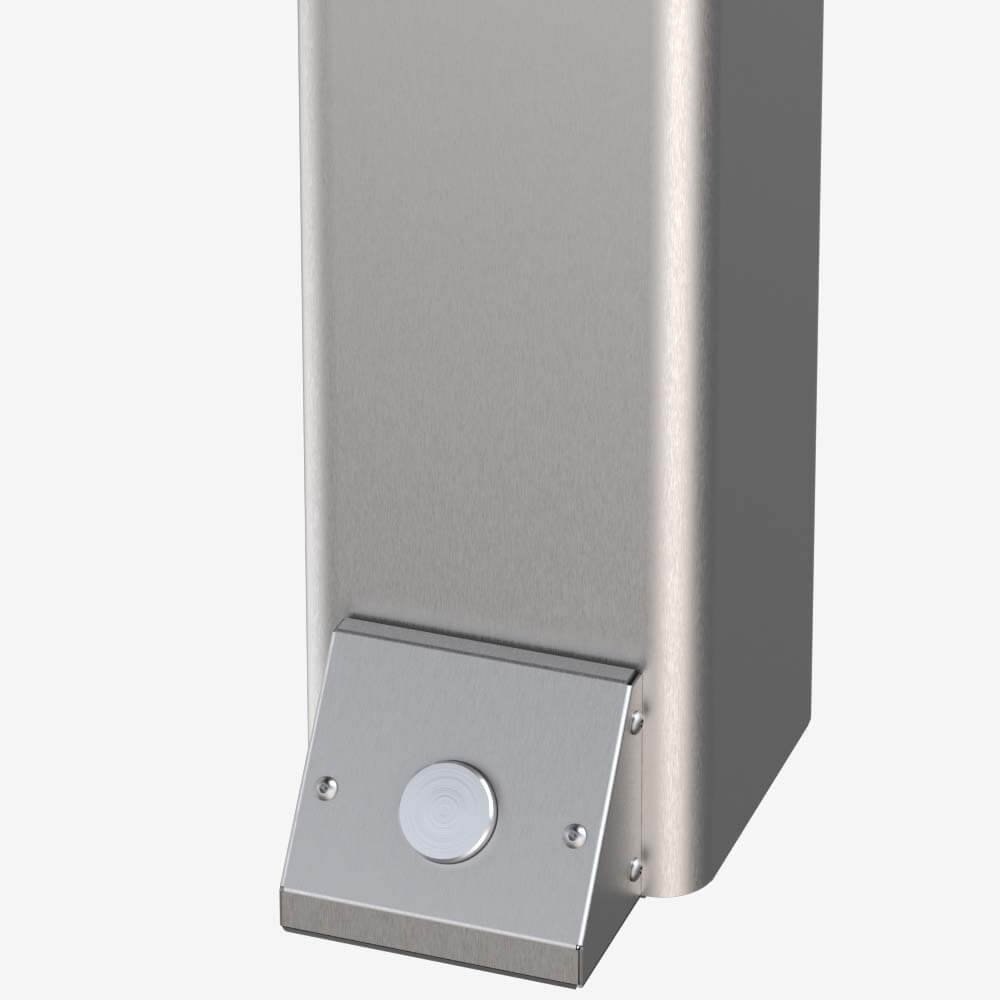

- Optional foot button for dual hand/foot control
- All-Stainless steel construction
- Meets ADA side reach requirements
- Laminar flow spout
- 100 mesh inlet strainer
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ECO Series Outdoor Economy Drinking Fountain and Bottle Fillers [ECO-BF | Bottle Filler; ECO-DF | Drinking Fountain; ECO-DF-BF | Drinking Fountain with Bottle Filler] | 0 | 1 MB | ||
| | Economy Outdoor Pedestal Bottle Filler [ECO-BF | Hand Pushbutton; ECO-BF-F | Hand and Foot Pushbutton] | 0 | 143 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB |
Specifications
| Material | Stainless Steel |
| Material Detail | 18 gauge Type 304 stainless steel |
| Mounting | Pedestal |
| Usage | Outdoor |
| Activation | Foot Pedal, Push Button |
| Style | Economy |
| Compliances | Lead-Free Federal Law 111-380, IAPMO tested to NSF/ANSI 61, Section 9 |
| Accessibility | ADA Compliant |
Models
The model numbers are defined with push-button controls operating the unit

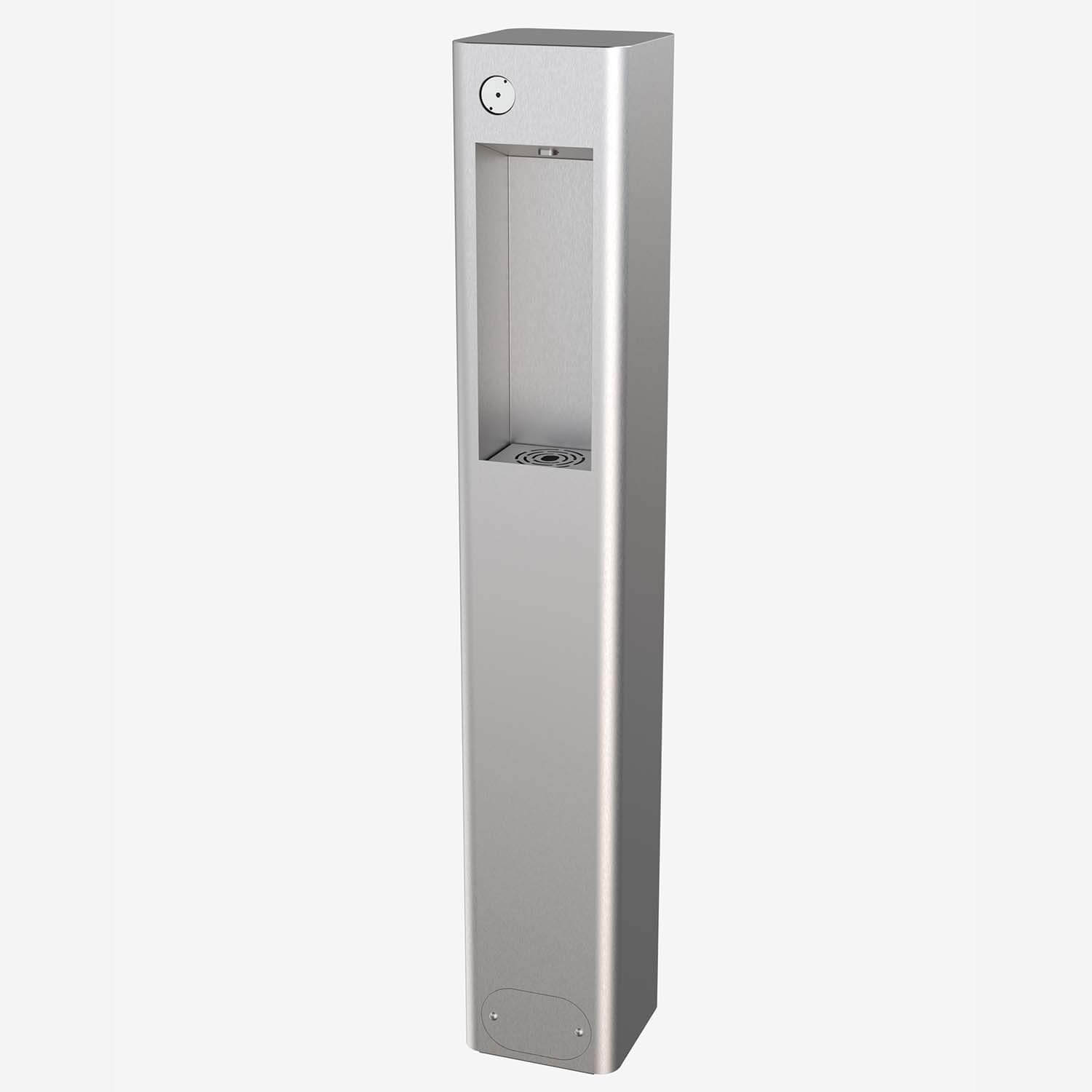

Model Number ECO-BF Standard Bottle Filler - Hand push-button operation only

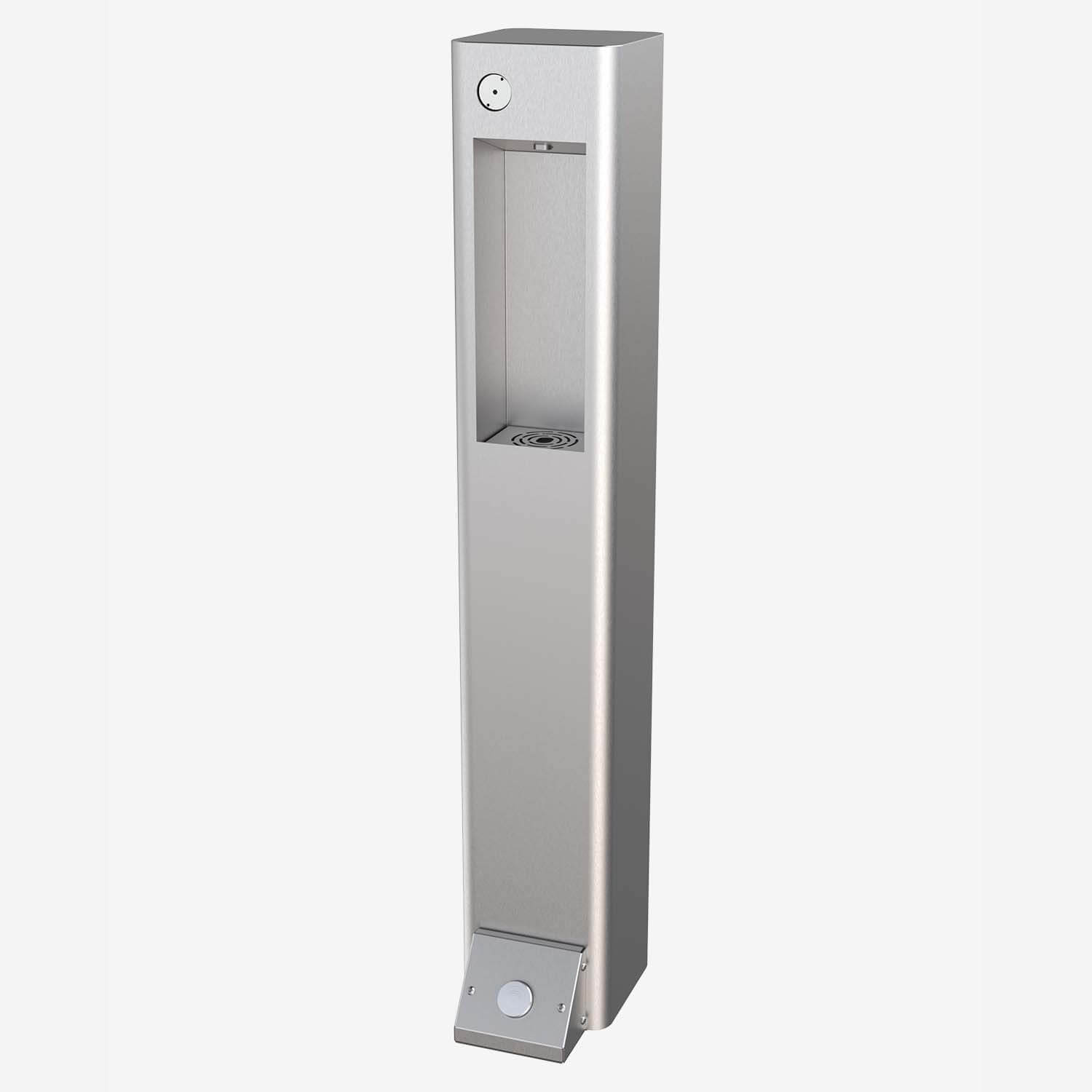

Model Number ECO-BF-F Hand/Foot Control
Popular Options -EG - Enviro-Glaze® Powder Coating -WF1 - 1500-Gallon Capacity, NSF 42+53, 1-Micron Lead Reduction Filter
Other options/accessories may be available - see submittal
