Wall-Mounted, SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - In-Wall Refrigeration (8 GPH), ADA, Standalone

The SpringH20™ BF168S Bottle Filler is a standalone sensor-operated stainless steel bottle filler. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance

This bottle filler is provided with an in-wall refrigeration chiller. A back panel is provided with a ventilation louver grille for the chiller.

Standard Features

• Heavy-gauge type 304 stainless steel polished to #4 satin finish
• Vandal resistant, seamless alcove
• ADA compliant
• Touchless sensor operation
• In-wall chiller shall deliver a minimum of 8.0 gallons (30.3 liters) per hour of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. Cooling system shall use R-134a refrigerant and be capillary tube regulated.
• Back Panel and Louvered Grille
• 120V AC/9V DC plug-in transformer
• 1.2 gallon (4.54 liters) per minute laminar flow nozzle
• 20 second maximum run time
• Bottle counter display with LED illumination and filter status lights (optional)
• Standalone unit
• Auto-Purge Sensor function shall activate Bottle Filler for 10 second duration 24 hours after last activation as standard and allow for purge cycle adjustment. (optional remote to change intervals available.)
• Rated for indoor use

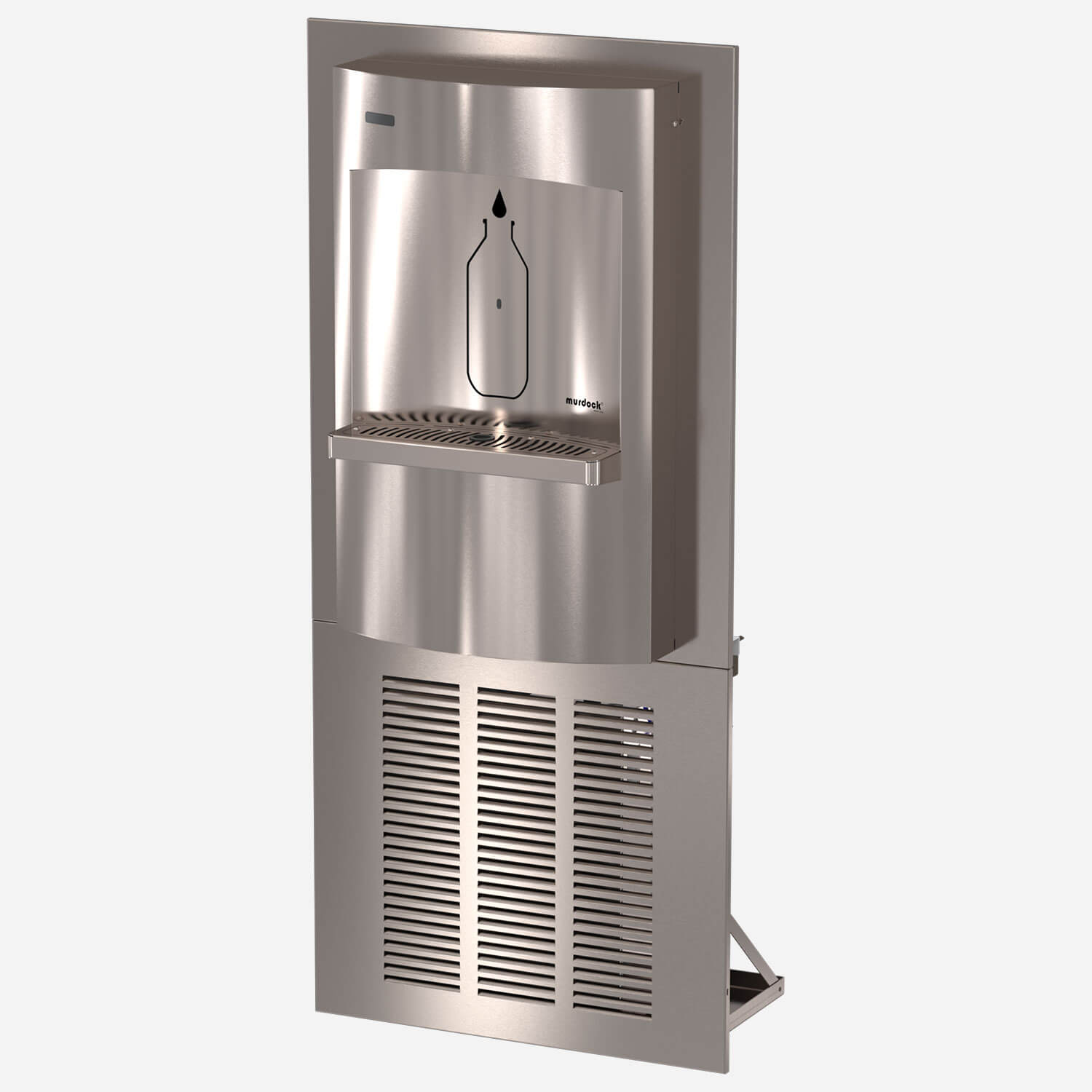

Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.
