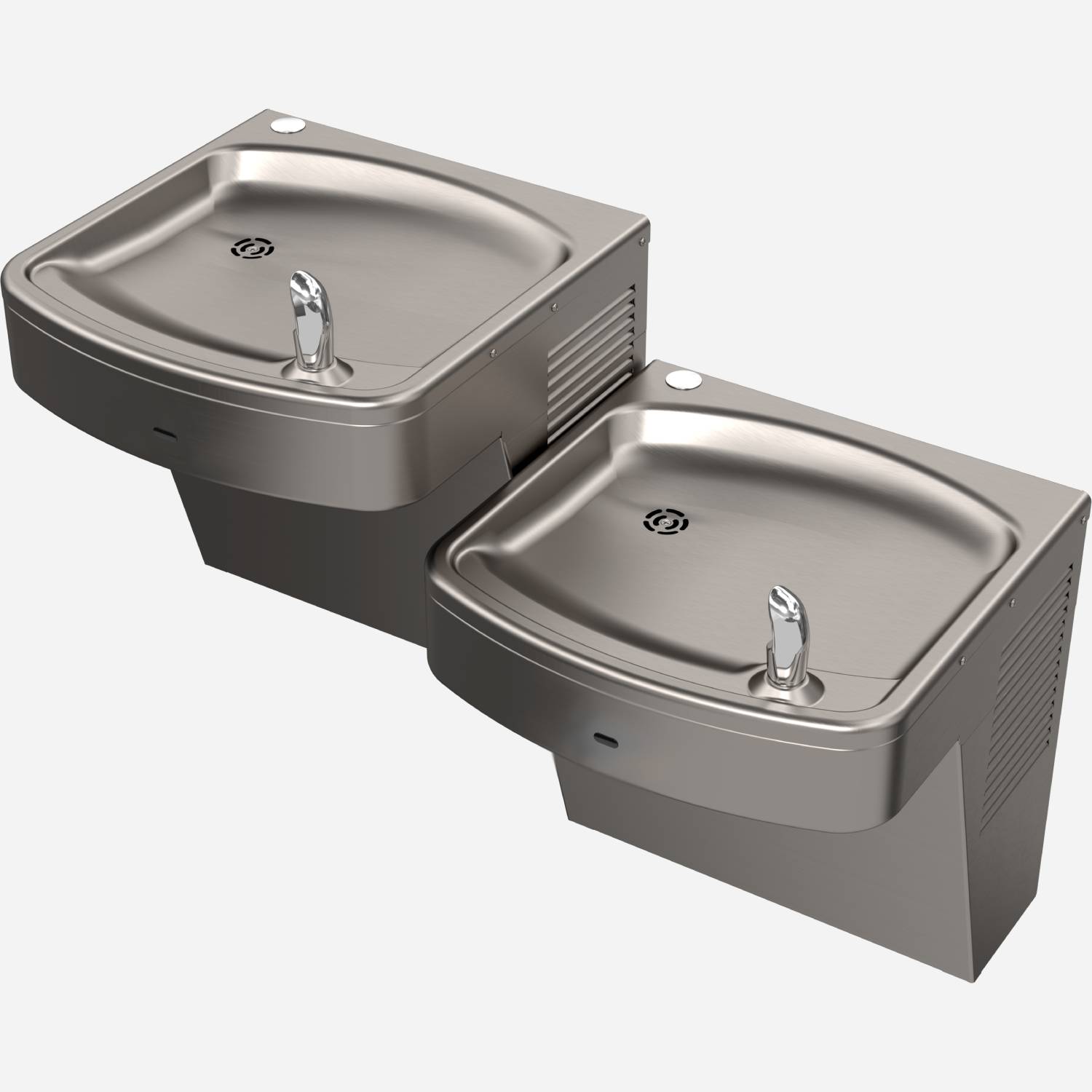

Model A172.8-UG-SO Series
Wall-Mounted, Universal Bi-Level Touchless Drinking Fountain - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
A172.8-UG-SO self-contained, pressurized universal bi-level water cooler that delivers a minimum of 8.0 GPH (30.3 LPH) of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. Cabinet shall be either galvanized steel with granite powder coat or stainless steel. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Self-Contained Universal Bi-Level Wall Mount Water Coolers [Model A172.8-UG | Standard (Rectangular Pushbutton), A172.8-UG-SO | Sensor-Activated, A172.8-UG-VR | Vandal Resistant Push Button] - includes parts manuals | 0 | 2 MB | ||
| | ADA Self-Contained Universal Bi-Level Wall Mount Water Cooler with Sensor Activation | 0 | 230 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Pressure Water Coolers | 0 | 146 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 0 | 219 KB | ||
| | MM - Maintenace Advantage (pdf) | 0 | 6 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | cUPC, ANSI/ASHRAE 18, CE complaint for 220 V electrical, Lead-Free Federal Law 111-380, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada) |
| Refrigeration | In-Unit 8 GPH Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Hands-Free Operation, Universal bi-level - can be installed left high or right high |
| Activation | Drinking fountain - sensor |
| Accessibility | ADA Compliant |
| Style | A17 Series |
| No. of Stations | 2 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SK5 | Accessory: Skirt Assembly for ADA Bi-Level Water Cooler | ||
 | WB2 | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler - Orientation Right Unit Low | ||
 | WB3 | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler - Orientation Left Unit Low | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Models
These are the basic models available for the A172.8-UG-SO Series refrigerated water cooler
A172408S-UG-SO All-Stainless Steel Finish Stainless Steel Bubbler
A172408F-UG-SO All-Stainless Steel Finish Flexible Bubbler

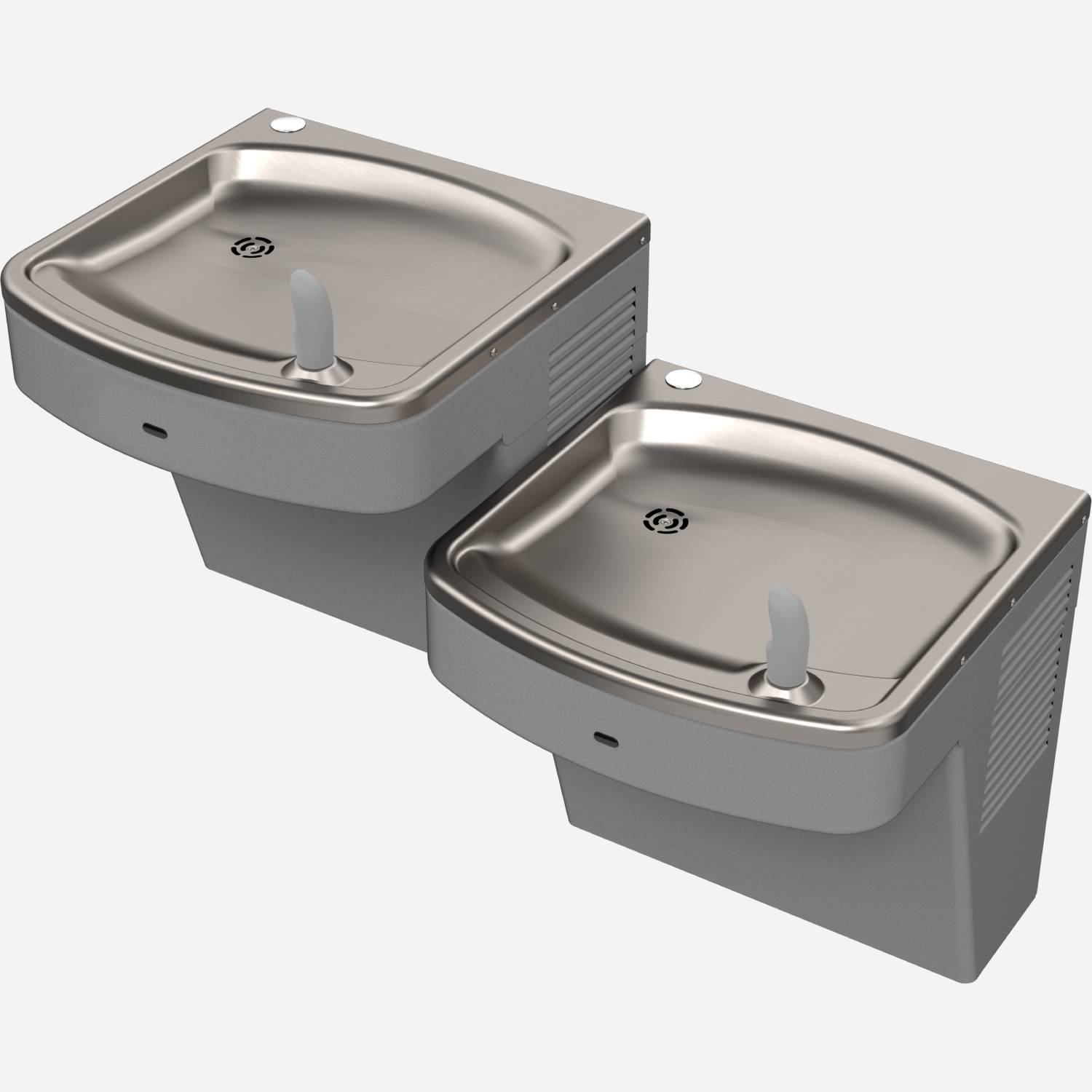

A172108S-UG-SO Textural Grey Finish Stainless Steel Bubbler
A172108F-UG-SO Textural Grey Finish Flexible Bubbler
Popular Options-220V | 220 Volt / 50 Hz or 60Hz Compressor -WF1 | 1,500-Gallon Capacity, NSF 42+53, 1-Micron Lead Reduction Filter -WF3 | 3,000-Gallon Capacity, NSF 42+53, 1-Micron Lead Reduction Filter -SK5 | Cane Detection Skirt Other options or accessories may be available see the submittal
