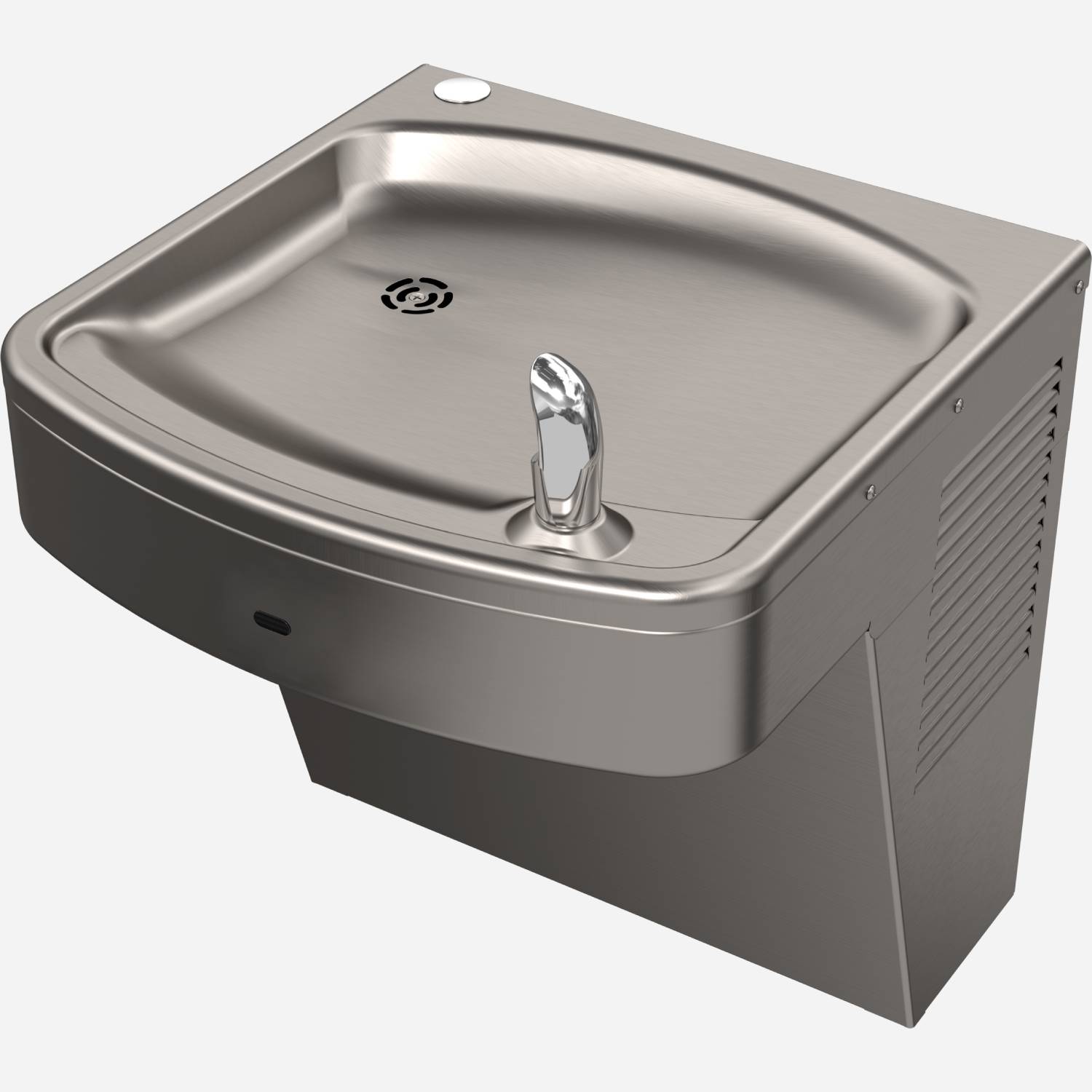

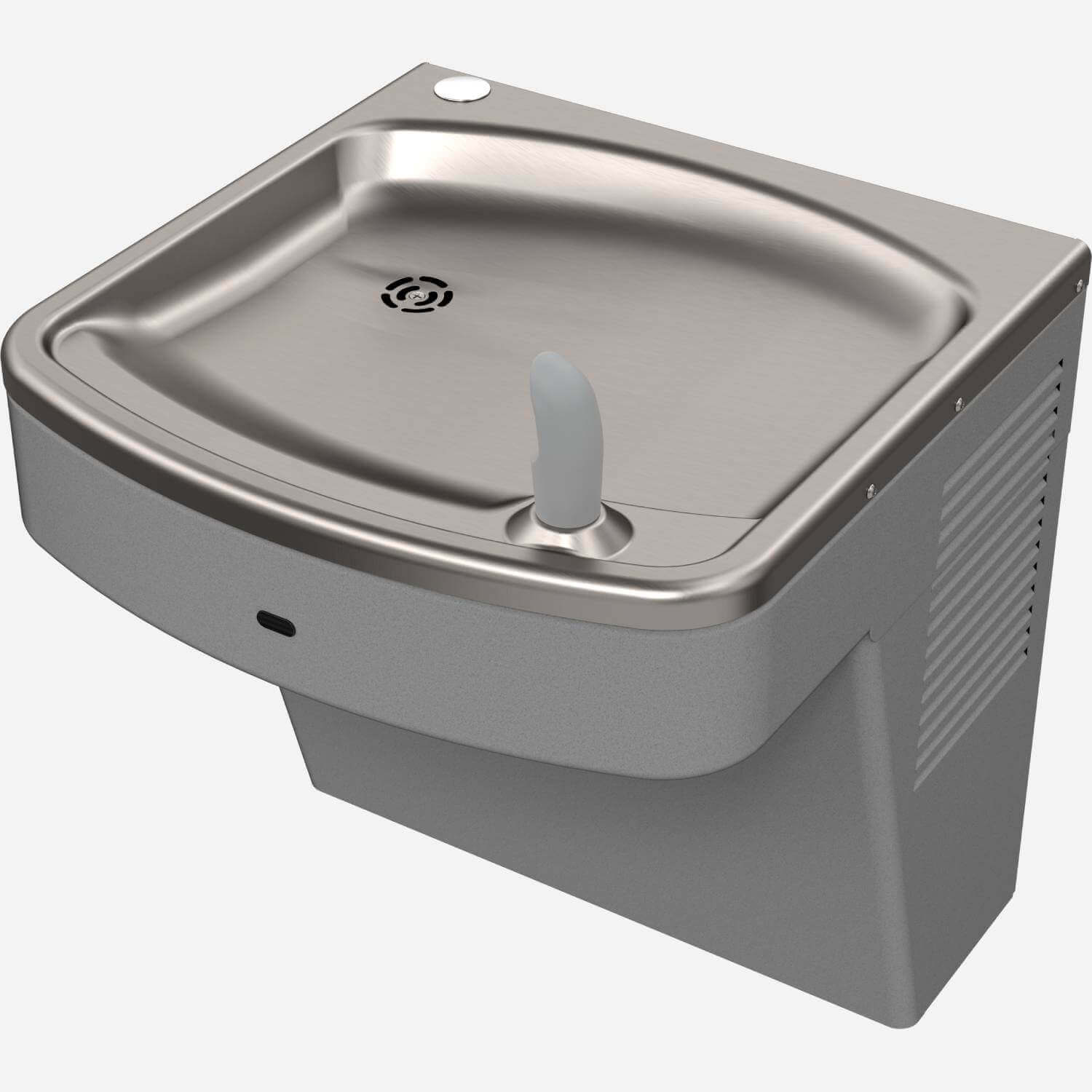

Wall-Mounted Touchless Drinking Fountain - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
This durable, self-contained, pressurized water cooler features a self contained 8 gallon per hour chiller. The cabinet shall be either galvanized steel with granite powder coat or stainless steel. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately.
Standard Features
- Rough-Ins Match Other Manufacturer’s for Easy Replacement
- Lead-Free
- Child or Adult ADA Compliant (When Properly Installed)
- Apron and One-Piece Bottom Wrapper is Satin Finish or Gray Powder Coat Finish
- Flexible, Low Flow, Anti-Rotation, Non-Squirt Bubbler
- 100-Mesh Inlet Strainer
- Hanging Bracket Provided
- 9 Volt Sensor Operation
- Chiller Includes Water Leak Detection Auto Shut-Off Valve
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Self-Contained Wall Mount Water Coolers [Model A171.8-UG - Standard (Rectangular Pushbutton, A171.8-UG-SO Sensor-Activated, A171.8-UG-VR with Round Vandal Resistant Pushbutton] - includes parts manuals | 0 | 2 MB | ||
| | ADA Self-Contained Wall Mount Water Cooler with Sensor Activation | 0 | 238 KB | ||
| | ADA Wall Mount Drink Fountain with Sensor Activation - No Refrigeration | 0 | 201 KB | ||
| | ADA Wall Mount Drink Fountain [Model A171-UG - Standard, A171-UG-SO Sensor Activated, A171-UG-VR with Vandal Resistant Push Button] - includes parts manuals | 0 | 2 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Pressure Water Coolers | 0 | 146 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 0 | 219 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | ANSI/ASHRAE 18, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada), CE complaint for 220 V electrical, Lead-Free Federal Law 111-380, cUPC |
| Refrigeration | In-Unit 8 GPH Refrigeration |
| Product Features | Hands-Free Operation, Maintenance Advantage® – Easy Maintenance Design, Auto-Stop (Servicing Strainer Shuts Off Water Supply) |
| Activation | Drinking fountain - sensor |
| Usage | Corporate Campus, Indoor, School Campus, Train Station |
| Accessibility | ADA Compliant |
| Style | A17 Series |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
Options
Models
These are the basic models available for the A171.8-UG-SO Series refrigerated water cooler
A171408S-UG-SO All-Stainless Steel Finish Stainless Steel Bubbler
A171408F-UG-SO All-Stainless Steel Finish Flexible Bubbler
A171108S-UG-SO Textural Grey Finish Stainless Steel Bubbler
A171108F-UG-SO Textural Grey Finish Flexible Bubbler
Popular Options-220V | 220 Volt / 50 Hz or 60Hz Compressor -WF3000 | 3,000-Gallon PFAS Water Filter Other options or accessories may be available see the submittal
