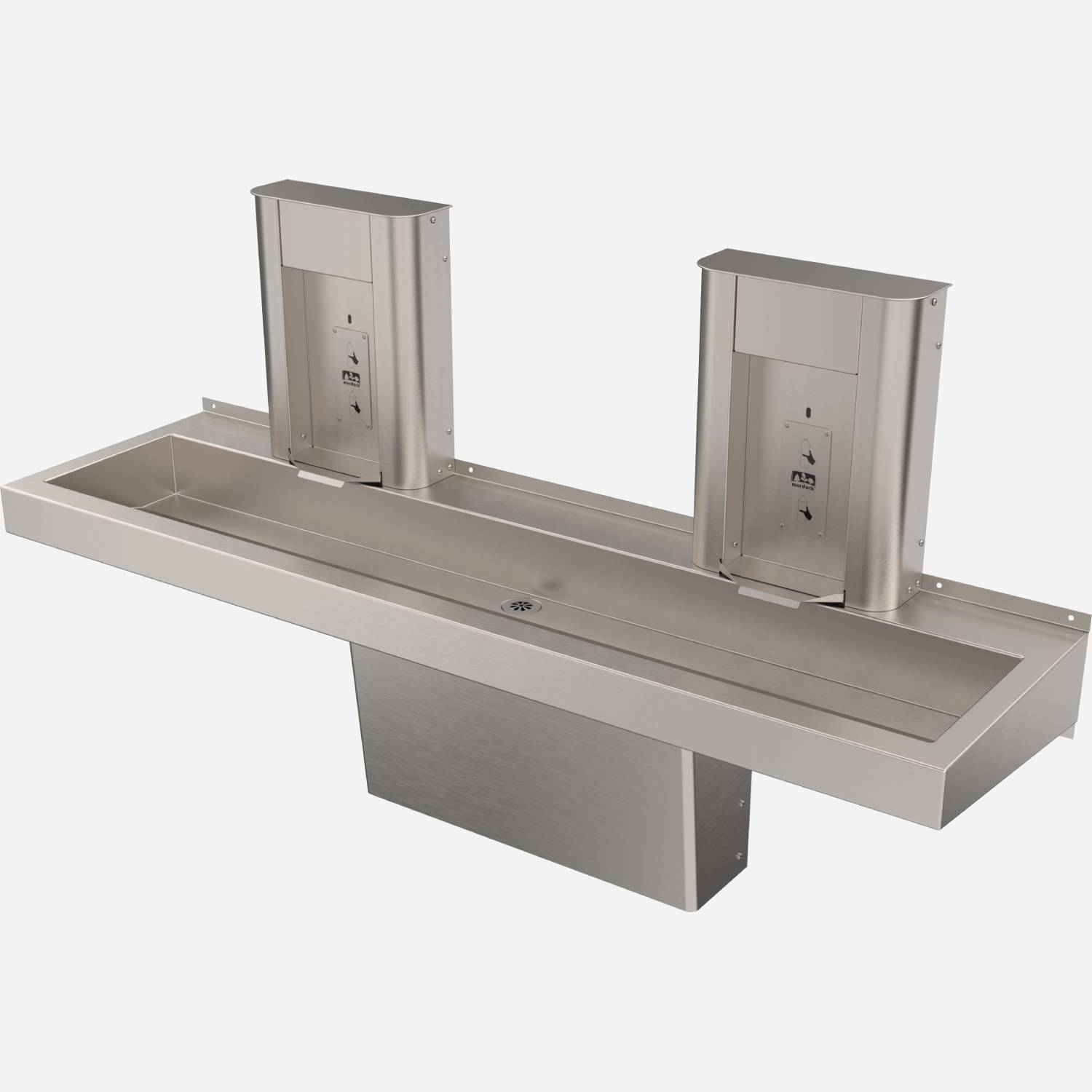

Wall-Mounted, 2-Station, Stainless Steel Trough Sink & Water Bottle Filler - ADA
The MD-DSW260 wall-mounted deluxe troughs with water bottle filling stations are a compact, convenient alternative to single-use plastic and also provide the option of adding hand-washing capability. This model is 60" (1,524 mm) wide and features two barrier-free, ADA-compliant stations. Water refill stations are available with either push-button or sensor activation, and the stainless steel trough is designed to catch and drain any excess water to help avoid slippery floors.

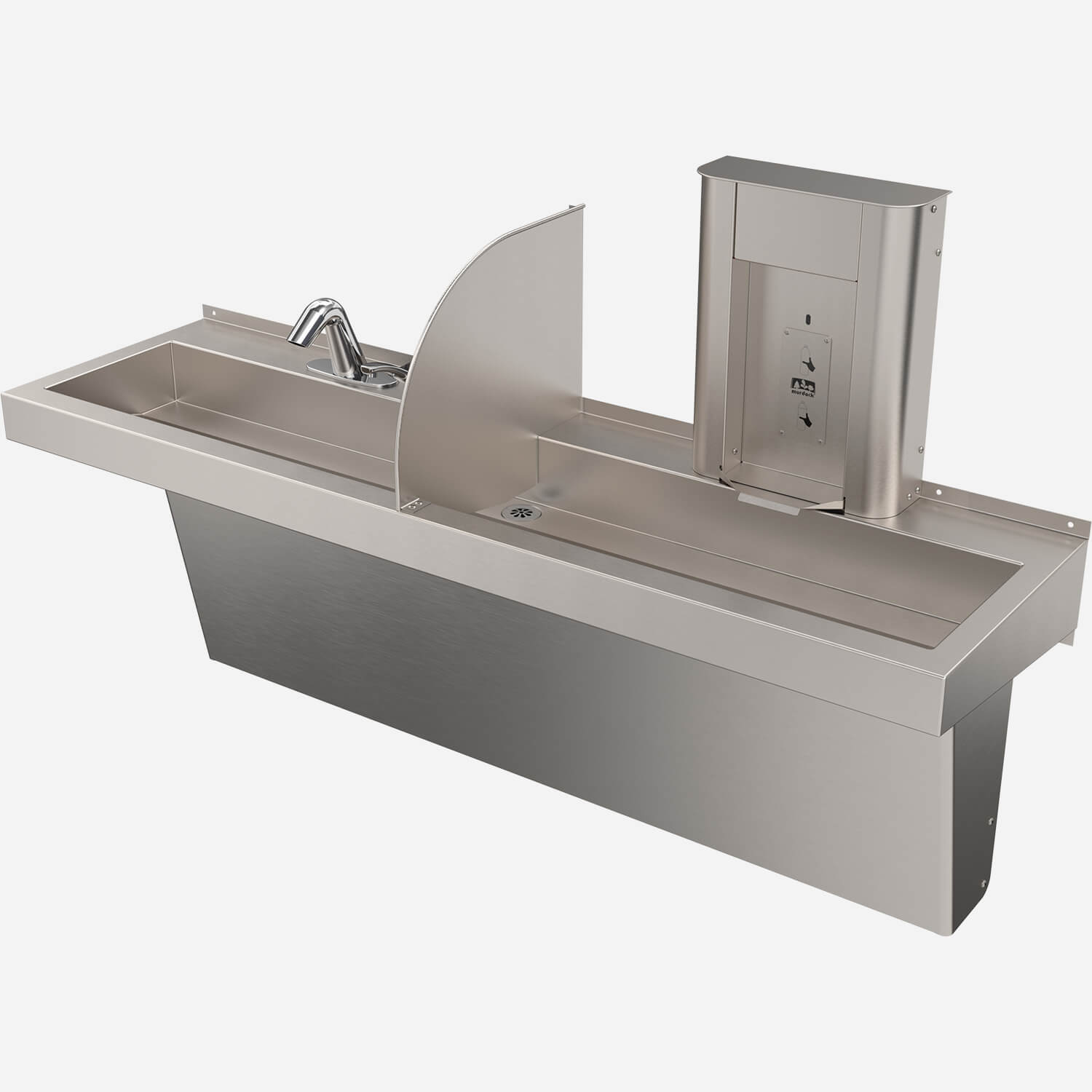

A faucet can be specified in place of a water bottle filler to create a hand washing station. Additional options include a soap dispenser, trap enclosure, and splash guards.
Features
- Two stations, 60" (1,524 mm) wide
- 16-gauge, type 304 stainless steel with an easy-to-clean satin finish
- Choice of water bottle filler or faucet at each station; manual and touchless sensor operation available for both
- Pre-drilled for a 4" (102 mm) centerset faucet, when specified; multiple faucet styles available
- Pre-drilled backsplash return provided for mounting the unit to a reinforced wall
- Basin is punched to accept a 1-1/2" drain assembly
- Complies with UPC/cUPC and ASME A112.19.3
- ADA compliant
- Options: Soap dispenser, splash guards, stainless steel trap enclosure (24" or 54" wide), Enviro-Glaze® powder coated color
Interested? Let’s talk.
For more information or to place an order, call (800) 453-7465, email [email protected], or use the form below!
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Two-Station Deluxe Stainless Steel Trough & Water Refill Station - 60" wide | 0 | 413 KB | ||
| | Deluxe Stainless Steel Trough Refill and Hand Wash Station [MD-DSW130 one-station 30"; MD-DSW260 two-station 60"; MD-DSW390 three-station 90"; MD-DSW4120 four-station 120"] | 0 | 305 KB | ||
 | | Deluxe Stainless Steel Trough & Water Refill Station [MD-DSW130 One-Station 30"; MD-DSW260 Two-Station 60"; MD-DSW390 Three Station 90"; MD-DSW4120 Four-Station 120"] | 0 | 2 MB | ||
| | Deluxe Stainless Steel Trough & Water Refill Station [MD-DSW130 One-Station 30"; MD-DSW260 Two-Station 60"; MD-DSW390 Three Station 90"; MD-DSW4120 Four-Station 120"] | 0 | 1 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
| | Deluxe Trough with Bottle Filler (pdf) | 0 | 406 KB |
Specifications
| Style | Trough |
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| Usage | Indoor, Outdoor |
| No. of Stations | 2 |
| Compliances | cUPC, ASME A112.19.3 |
| Patent | US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler), Patent Pending |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -DSW000-SG | Accessory: Splash Guard for Mult-Station Deluxe Bottle Filler Trough | ||
 | DSW000-TC1 | Accessory: Single 24" Wide Trap Enclosure for Deluxe Trough Sink | ||
 | DSW000-TC2 | Accessory: Single 54" Wide Trap Enclosure for Deluxe Trough Sink | ||
 | SW000-PT | Accessory: Daisy Strainer with Tailpiece and 1-1/2” P-Trap | ||
 | SW000-PTC | Accessory: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap | ||
 | WH-DECAL | Accessory: 10" Round Decal with "Wash Your Hands" Reminder |
