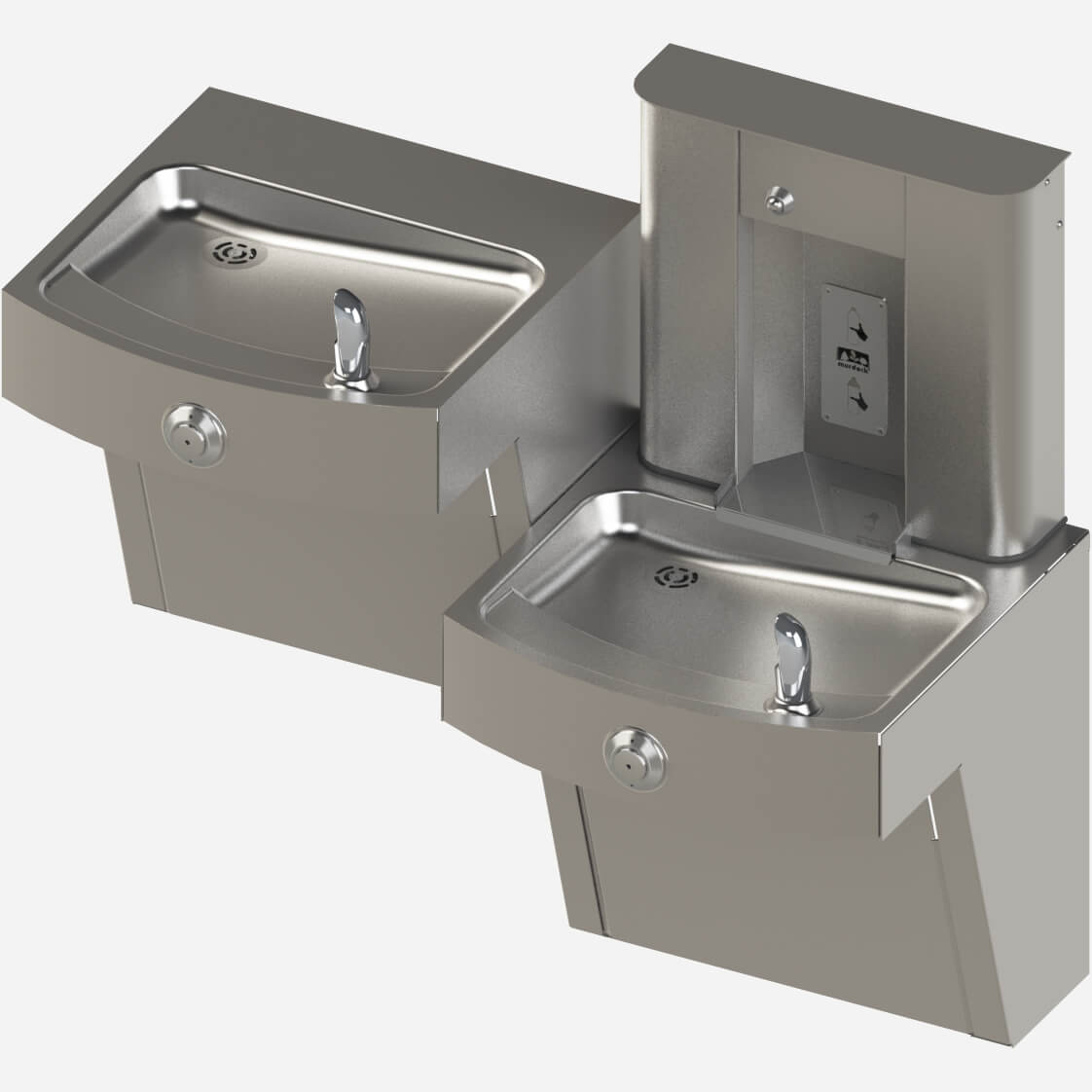

Model A172400S-FG-VR-BFS Series
14GA Stainless Steel, Vandal-Resistant, Wall-Mounted, Bi-Level Drinking Fountain with Heavy-Duty Water Bottle Filling Station - Non-Refrigerated, ADA
Murdock's 14-gauge vandal resistant drink fountain is available as a ADA Bi-level wall mount unit. The unit does not provide refridgerated water. The bottle filler is connected to the water from the drink fountain typically mounted on the deck of deck of the ADA lower unit. The lower drink fountain can be positioned on the left side if -RBL is specified. The heavy-duty bottle filler features a hemispherical push button or sensor activation.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Barrier-Free 14-Gage Stainless Steel Bi-Level Wall Mounted Drinking Fountain (No Refrigeration) including Parts Breakdown | 0 | 1 MB | ||
| | ADA Complaint Vandal Resistant 14 Gage Stainless Steel Drinking Fountain with Heavy Duty Push Button Bottle Filler | 0 | 250 KB | ||
| | ADA Complaint Vandal Resistant 14 Gage Stainless Steel Drinking Fountain with Heavy Duty Sensor Activated Button Bottle Filler | 0 | 241 KB | ||
| | Pushbutton Deck Mounted Bottle Filler for Barrier-Free Water Cooler/Drinking Fountain (Standard Model BF1S) | 0 | 749 KB | ||
| | Sensor Activated Deck Mounted Bottle Filler for Barrier-Free Water Cooler/Drinking Fountain (BF2S, BF2S-BCD, BF2S-BAT) | 0 | 869 KB | ||
| | Option: Concealed Support Carrier – Wall-Mounted, Bi-Level Drinking Fountains [typically for A172408S-FG-VR, A172400S-FG-VR including installation with BFS bottle fillers] | 0 | 318 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | 14 Gauge, All-Stainless Steel |
| Compliances | ASME A112.19.3, IAPMO tested to NSF/ANSI 61, Section 9, UPC, CHSC 116875 - No Lead, Lead-Free Federal Law 111-380 |
| Refrigeration | No Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Heavy-Duty 14 Gauge Stainless Steel Construction, Maintenance Advantage® – Easy Maintenance Design, Round Vandal-Resistant Pushbutton, Heavy Duty Deck Mount Bottle Filler |
| Activation | Drinking fountain - round vandal-resistant button, Bottle filler - hemispherical pushbutton |
| Accessibility | ADA Compliant |
| Style | A17 Series, 14-Gauge Stainless Steel Drinking Fountain |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler) |
| No. of Stations | 2 |
Options
Accessories
Miscellaneous
Models
Barrier-Free 14 Gauge Stainless Steel Bi-Level Wall-Mounted Drinking Fountain with Heavy-Duty Bottle FillerA172400S-FG-VR-BF1SLower ADA Drinking Fountain on Right Side with Pushbutton Heavy-Duty Bottle FillerA172400S-FG-VR-RBL-BF1SLower ADA Drinking Fountain on Left Side with Pushbutton Heavy-Duty Bottle Filler
