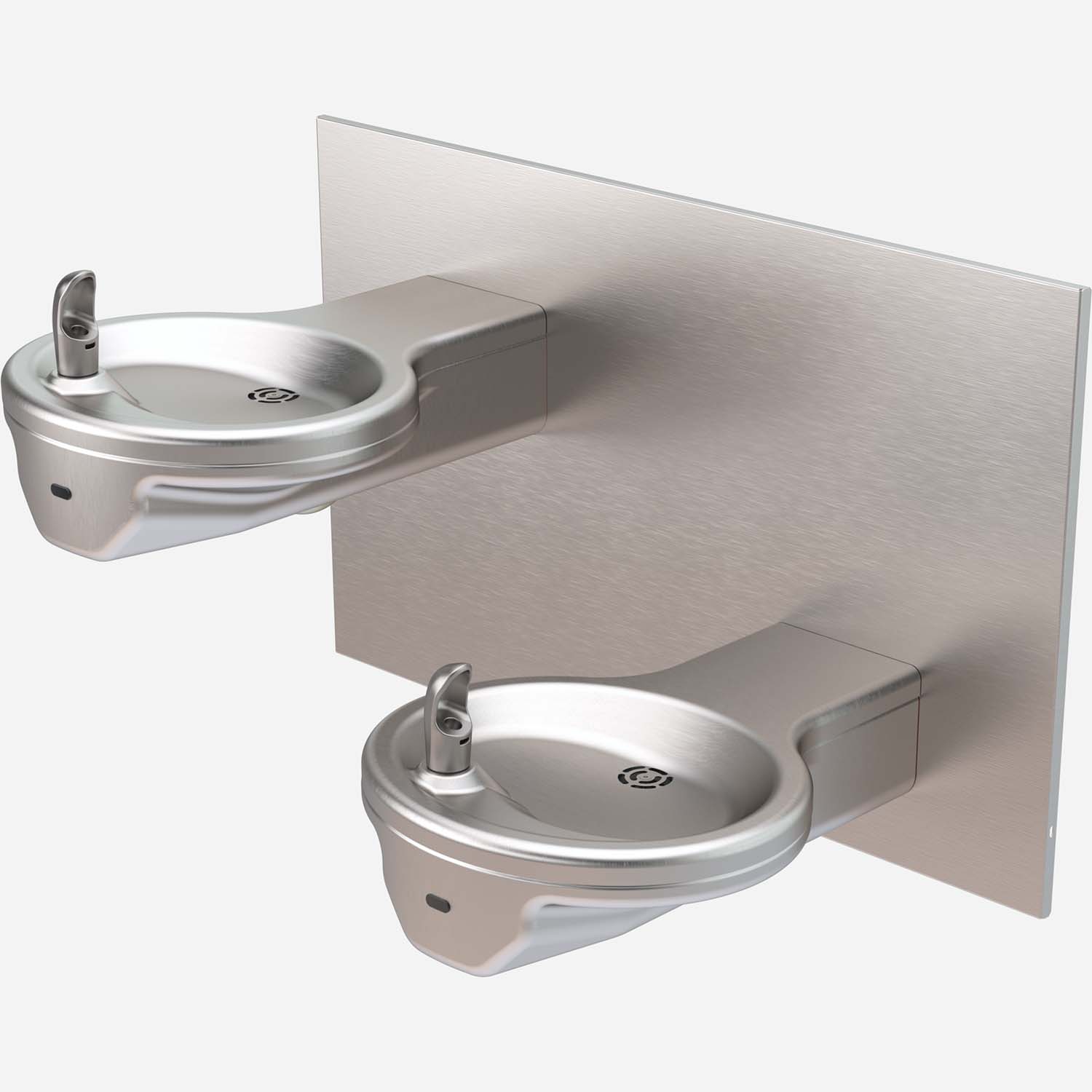

Oval, Barrier-Free, Bi-Level Wall Mount Drinking Fountain - Sensor Activated
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Oval Bowl Barrier-Free Wall Mount Bi-Level Drinking Fountain [A132400S-VR | Standard Model; A132400S-SO | Sensor Operation ] | 0 | 1 MB | ||
| | Oval, Barrier-Free, Bi-Level Wall Mount Drinking Fountain - Sensor Activated | 0 | 168 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Bronze, High-Polish Gold |
| Mounting | Wall-Mounted |
| Style | Indoor Oval Bowl |
| Refrigeration | No Refrigeration |
| No. of Stations | 2 |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D546,607 S (Ornamental Design of Oval Fountain) |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton, Hands-Free Operation |
| Activation | Sensor |
| Usage | Indoor, Corporate Campus, School Campus, Train Station |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -AP3 | Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains | ||
 | -MF8 | Accessory: Mounting Frame for a Bi-Level A132 or A152 Fountain | ||
 | -W32-CSC | Accessory: Concealed Support Carrier for Bi-Level A132 or A152 Drinking Fountain | ||
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | SK4-18 | Accessory: Skirt Assembly for Bi-Level Oval Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Models
Typical models are shown below
A132400S-SO All-Stainless Steel Lead-Free Stainless Steel Bubbler
A132400F-SO All-Stainless Steel, Flexible Bubbler
A132400S-HP-SO High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A132200S-SO Bronze Finish with matching finish bubbler
A132300S-SO High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:
-W32-CSC | Concealed support carrier -MF8 | Mounting frame for dual fountain -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -RBL | Reverse bi-Level - right fountain high, left fountain low -SK4-18 | Skirt kit for upper fountain
Other options are available. See Options List and/or Submittal
Note: Mounting plate A0000000-MP2-W32 may be ordered in advance for a pre-mounted rough-in.
