Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain - Non-Refrigerated, ADA, Stainless Steel
Model A132400S-VR is a Vandal Resistant, Wall Mounted, Bi-Level Drinking Fountain made from 18 gauge, 304 stainless steel with a brushed finish. Unit shall be activated by Chrome Plated Brass Pushbutton using less than 5 pounds of force. Bubblers shall be polished stainless steel with non-squirt features and operate on a water pressure range of 20-105 psig. Unit shall have uniquely designed, two-piece contoured bowls with P-traps integral to the unit. The unit is certified to ANSI A117.1, Public Law 111-380 (NOLEAD), and NSF/ANSI/CAN 61. The fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately.

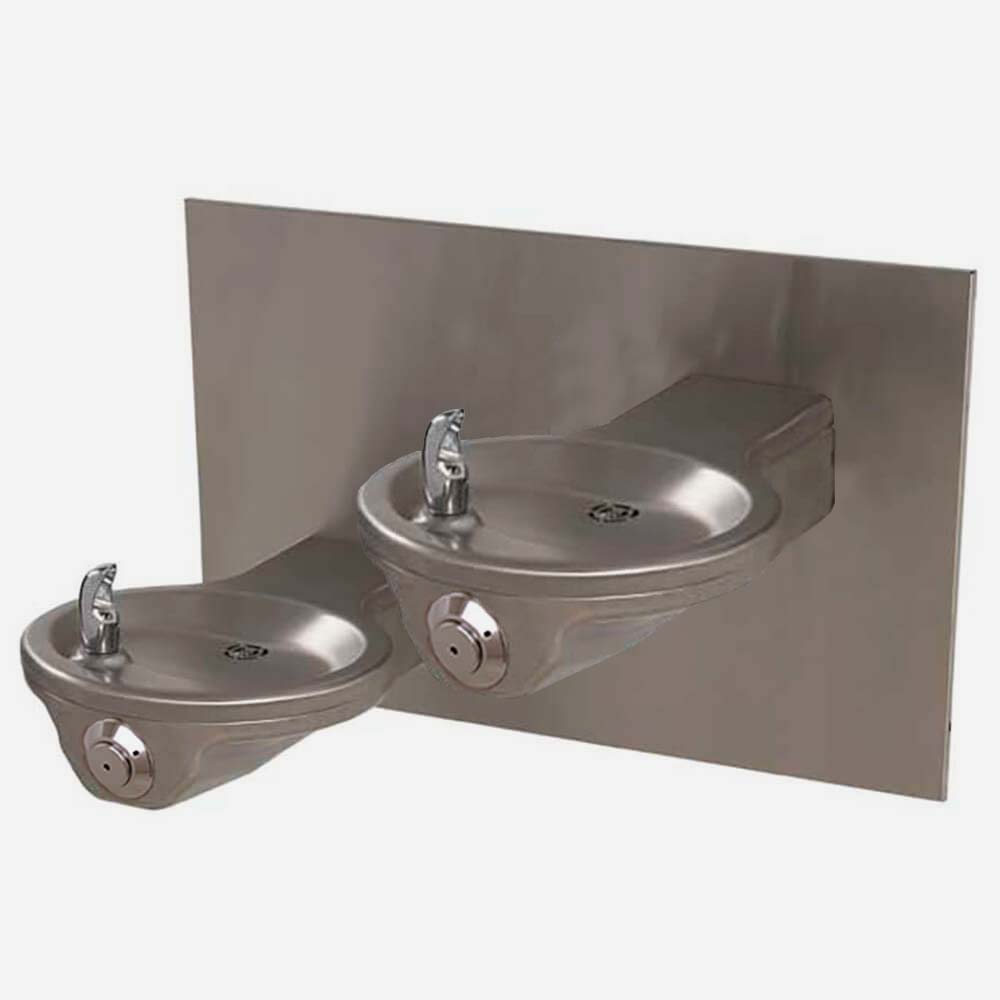

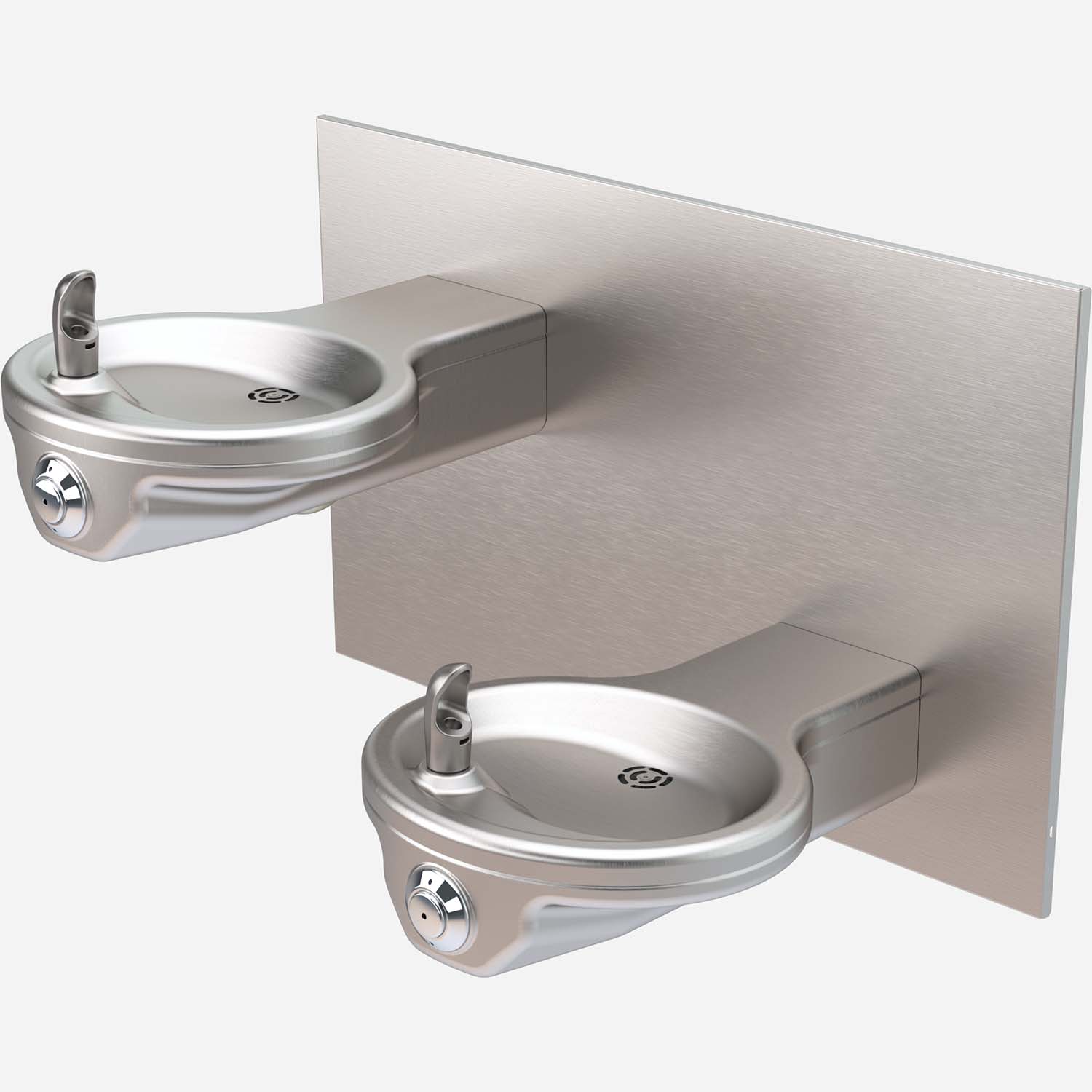

A132-VR Series includes a bi-level oval bowl drinking fountain mounted on 32 inches (8,128 mm) panel.
A132-VR Series Drinking Fountain Features
- Child Or Adult Ada Compliant (When Properly Installed)
- 18 Gauge, 304 Stainless Steel Oval Basin and VanlFlush Mounted Chrome Plated Brass Button
- Polished Stainless Steel, Vandal Resistant, Anti-rotation, Non-squirt Bubbler
- 100-mesh Inlet Strainer
- Vandal Resistant Screws
- Integral P-trap
- Mounting Plate With Hardware
- 32-inch (813 mm) Trim Panel
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Oval Bowl Barrier-Free Wall Mount Bi-Level Drinking Fountain [A132400S-VR | Standard Model; A132400S-SO | Sensor Operation ] | 0 | 1 MB | ||
| | Oval, Barrier-Free, Bi-Level Wall Mount Drinking Fountain with Vandal Resistant Button and Auto Stop | 0 | 176 KB | ||
| | Option -FRA4 In-Wall freeze-resistance for Bi-Level Wall Mount Drink Fountain | 0 | 271 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| Style | Indoor Oval Bowl |
| Refrigeration | No Refrigeration |
| No. of Stations | 2 |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D546,607 S (Ornamental Design of Oval Fountain) |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton |
| Activation | Push Button |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -AP3 | Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains | ||
 | -MF8 | Accessory: Mounting Frame for a Bi-Level A132 or A152 Fountain | ||
 | -W32-CSC | Accessory: Concealed Support Carrier for Bi-Level A132 or A152 Drinking Fountain | ||
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | SK4-18 | Accessory: Skirt Assembly for Bi-Level Oval Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Models
Typical models are shown below
A132400S-VR All-Stainless Steel Lead-Free Stainless Steel Bubbler
A132400F-VR All-Stainless Steel, Flexible Bubbler
A132400S-VR-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A132200S-VR Bronze Finish with matching finish bubbler
A132300S-VR High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:-AP3 | Access Panel for a Dual Fountain -RBL | Reverse Bi-Level (Bottle Filler Opposite) -SK4-18 | Skirt Kit, Stainless Steel, for upper unit -WF1 | 1500-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter -WF3 | 3000-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter
Other options are available. See Options List and/or Submittal Note: Mounting plate A0000000-MP2-W32 may be ordered in advance for a premounted rough-in..
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A13-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
