14GA Stainless Steel, Wall-Mounted, Bi-Level Drinking Fountain with Water Bottle Filling Station - Non-Refrigerated, ADA

Model A152-FG-BF Series

14GA Stainless Steel, Wall-Mounted, Bi-Level Drinking Fountain with Water Bottle Filling Station - Non-Refrigerated, ADA

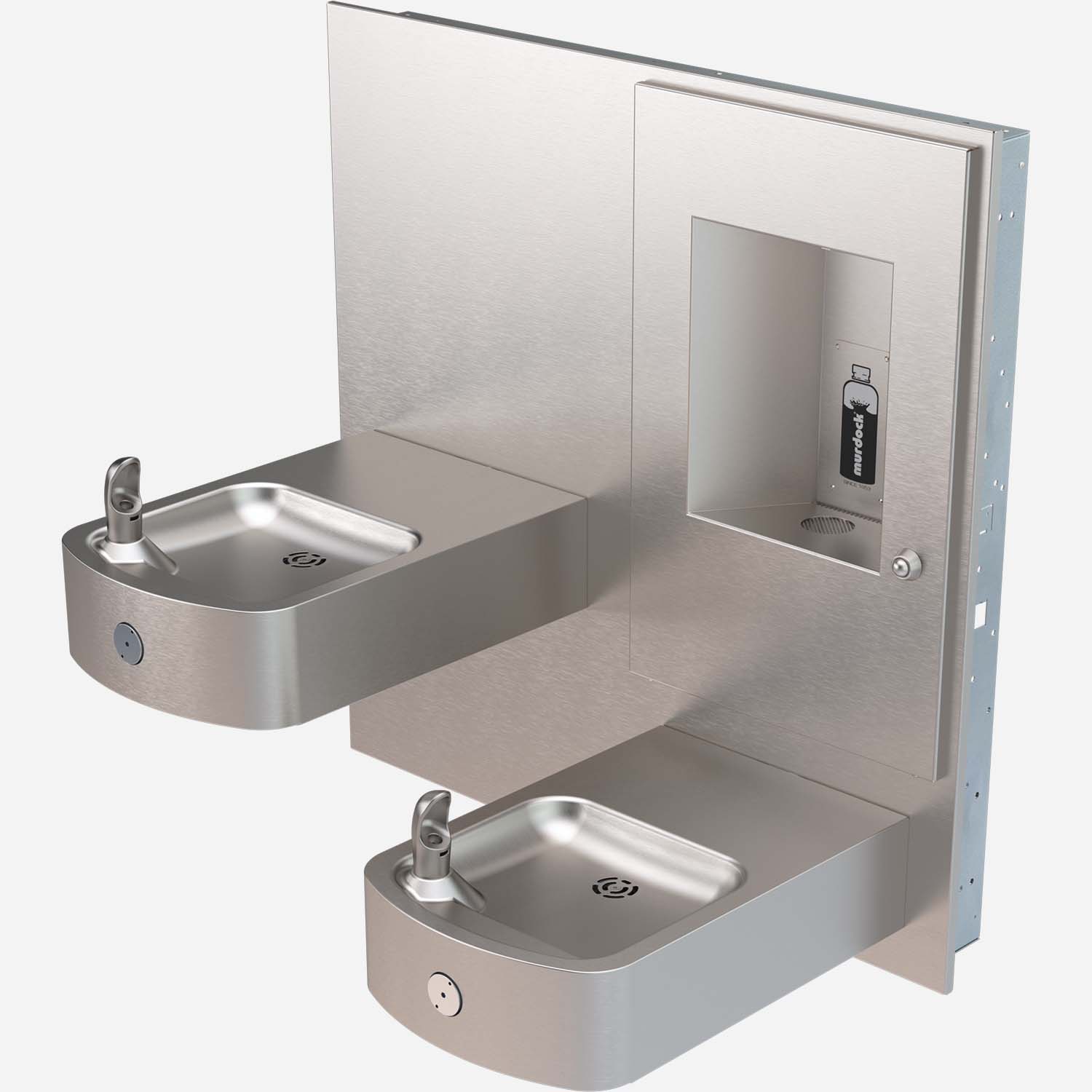

Murdock provides this barrier-free bi-level wall mount drinking fountain with a bottle filler. The unit features 14-gauge box fountains - a short unit on left and ADA compliant unit on the right. Above the ADA drink fountain, a recessed bottle is provided. The bottle filler meets ADA Forward and Side Reach Requirements and can be provided with sensor or pushbutton activation. Above the lower unit, typically on the right side, a recessed bottle filler is provided - BF3 pushbutton or BF4 sensor. Option -RBL provides the lower ADA unit and bottle filler on the left side.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual A152-FG-BF4 Series Drinking Fountain-Bottle Filler	14GA Stainless Steel, Wall-Mounted, Bi-Level Drinking Fountain with Water Bottle Filling Station - Non-Refrigerated, ADA	2 MB
Submittals	Submittal A152-FG Series Drink Fountain and BF4 Bottle Filler	Barrier-Free 14-Gauge Stainless Steel Box Style Bi-Level Drinking Fountain with Sensor Heavy Duty Bottle Filler [Standard Model A152400S-FG-BF4]	177 KB
Submittals	Submittal A152-FG Series Drink Fountain and BF3 Bottle Filler	Barrier-Free 14-Gauge Stainless Steel Box Style Bi-Level Drinking Fountain with Push Button Heavy Duty Bottle Filler [Standard Model A152400S-FG-BF3]	179 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Product MasterSpec	MasterSpec: 224713, Drinking Fountains (doc)	Murdock Mfg - Drinking Fountains	164 KB
Product MasterSpec	MasterSpec: 224713, Drinking Fountains (pdf)	Murdock Mfg - Drinking Fountains	169 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Material Detail	14 Gauge
Product Features	Heavy-Duty 14 Gauge Stainless Steel Construction, Bottle Filler Shares Drinking Fountain/Water Cooler Supply
No. of Stations	2
Refrigeration	No Refrigeration
Compliances	IAPMO tested to NSF/ANSI 61, Section 9, Lead-Free Federal Law 111-380, cUPC
Accessibility	ADA Compliant
Style	14-Gauge Stainless Steel Drinking Fountain

Options

Accessories

Model	Description	Downloads
-AP3	Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains	Submittal
SK2-18	Accessory: Skirt Assembly for Bi-Level 14 Gauge Stainless Steel Box Fountain	Submittal Install Guide
WF3000	Accessory: 3,000 Gallon PFAS Water Filter	Submittal Install Guide

Miscellaneous

	Image	Model	Description	Downloads
		-RBL	Option: Reverse Bi-Level - Left Low/Right High	Submittal
		BCD	Option: Bottle Counter Display	Submittal

Models

Typical models are shown below

A152400S-FG-BF4 All-Stainless Steel Lead-Free Stainless Steel Bubbler

A152400F-FG-BF4 All-Stainless Steel, Flexible Bubbler

A152400S-FG-BF4-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler

-BF4 Sensor, Plug-in Powered

-BF4-BAT Sensor, Battery-Powered

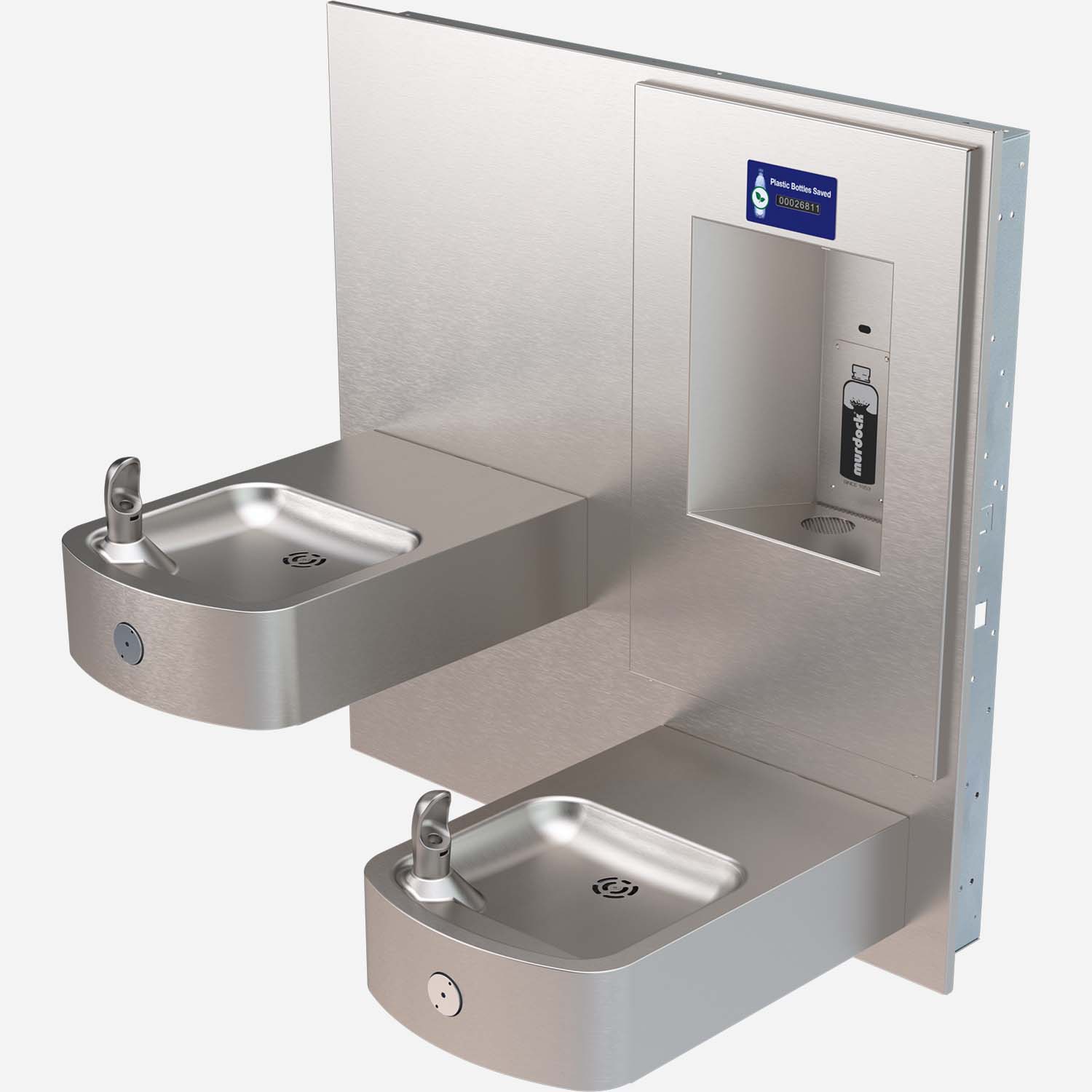

-BF4-BCD Sensor, Plug-in, Bottle Counter Display

-BF3 Push Button Activated, No Electrical

Popular Options/Accessories include:-AP3 | Access panel for a dual fountain -BCD | Bottle Counter Display (Bottle Filler) -HP | High-polished stainless steel -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -WF3 | 3000 gallon capacity, NSF 42+53, 1-micron lead reduction filter -SK2-18 | Skirt kit, 14 gauge stainless steel, for upper unit -RBL | Reverse Bi-Level (Bottle Filler Opposite)

Other options are available. See Options List and/or Submittal
