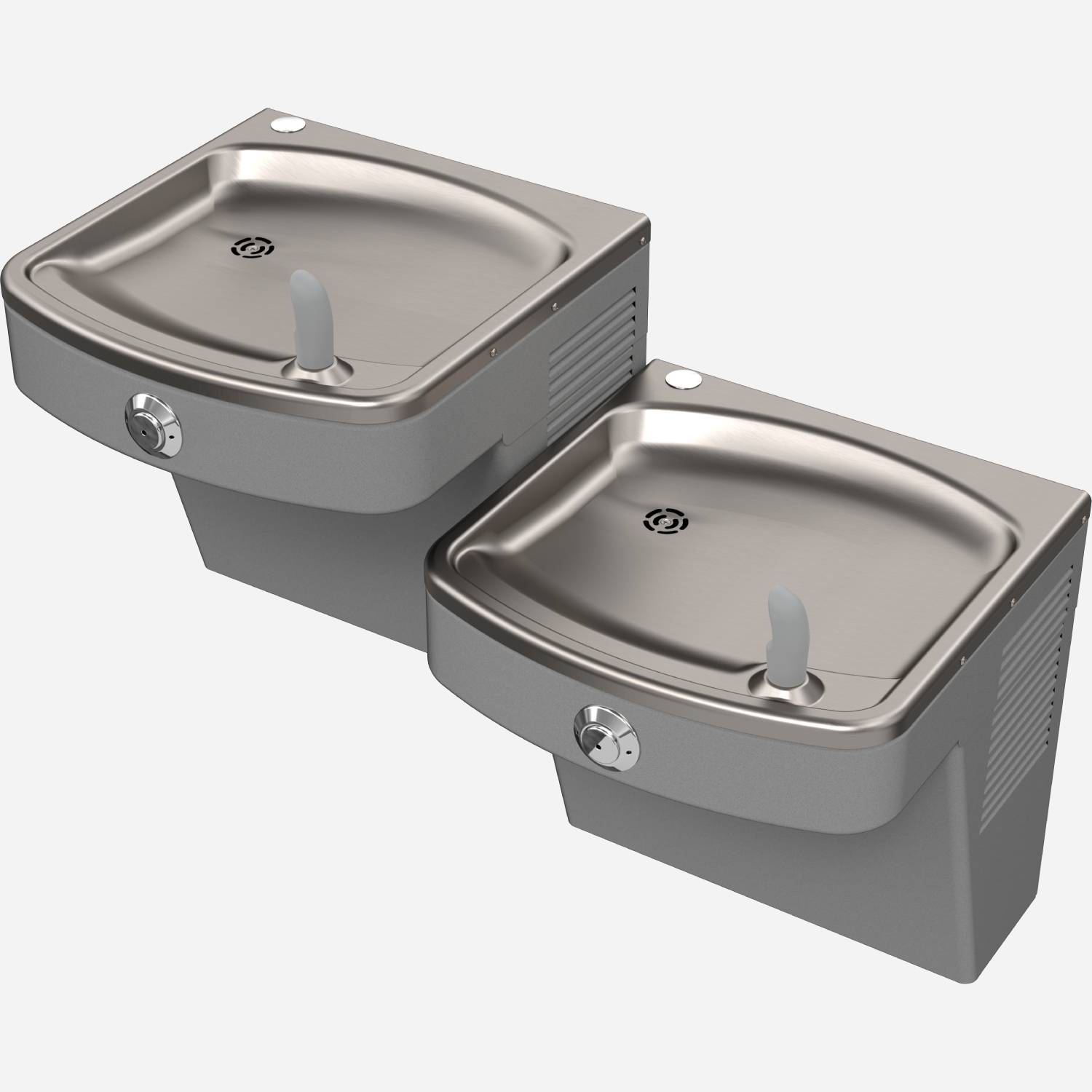

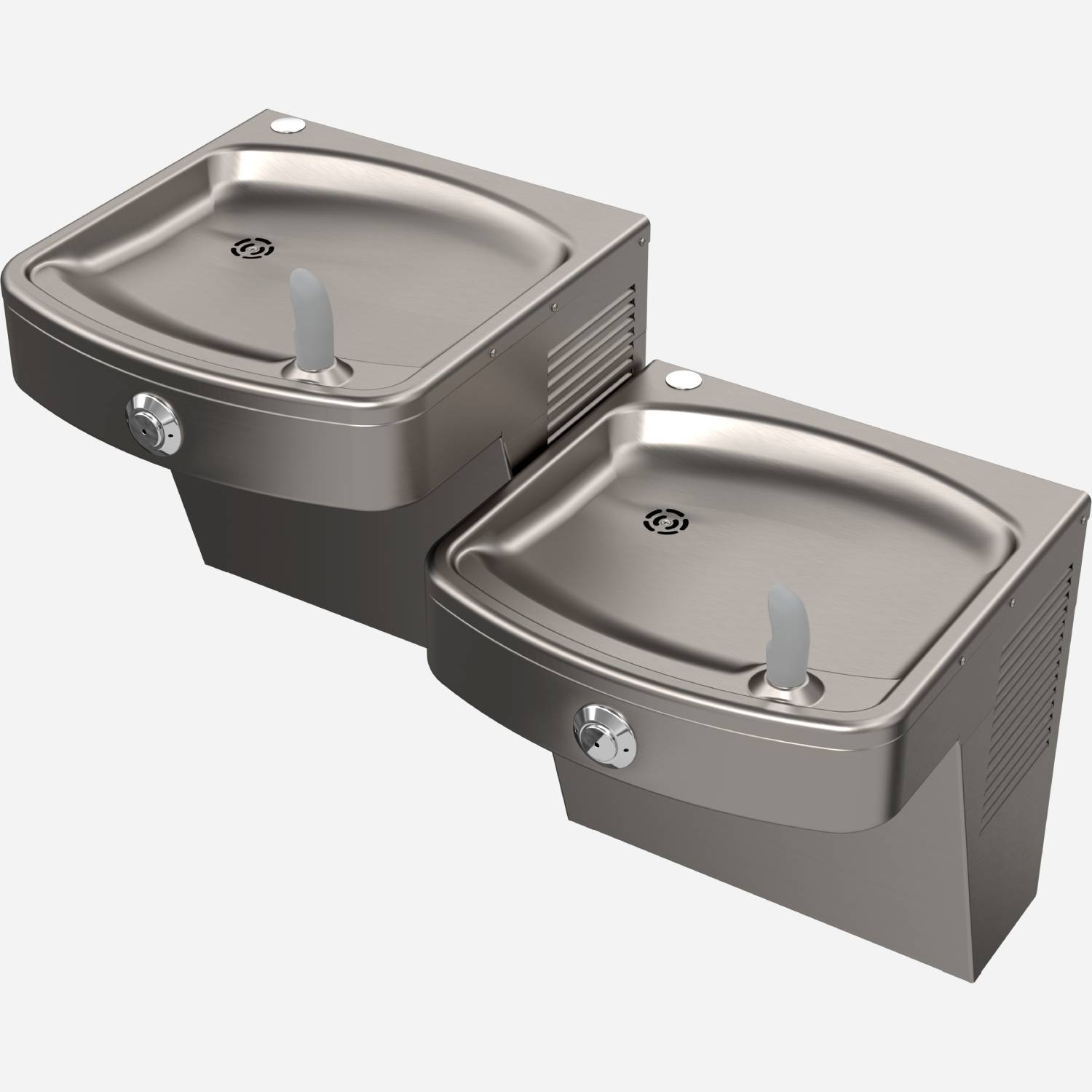

Model A172-UG-VR Series
Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain - Non-Refrigerated, ADA, Stainless Steel
Non-Refrigerated Universal Bi-Level Vandal-Resistant Drinking Fountain Features
- Universal Bi-Level allows for left-side or right-side high on drinking fountain
- Designed for vandal-resistance
- Each drinking fountain station features a single uncomplicated vandal-restistant round mechanical activation button
- Flexible, antimicrobial, non-squirt bubblers or stainless steel bubblers
- Available in galvanized steel with grey textured powder coat or all-stainless steel
- Child or Adult ADA Compliant when properly installed
Model Variations
- A172100F-UG-VR | Textured Grey Finish Bottom, Flexible Bubblers
- A172100S-UG-VR | Textured Grey Finish Bottom, Lead-Free Stainless Steel Bubblers
- A172400F-UG-VR | All-Stainless Steel, Flexible Bubblers
- A172400S-UG-VR | All-Stainless Steel, Flexible Bubblers
Water Filter
Water filters in 3,000 gallon capacity are available for A171 and A172 Series water cooler/drinking fountains. Upgrade your water cooler/drinking fountain with the EZ Door® Filter option, which allows for fast and easy water filter changes without removing the shroud. The filter is NSF 42, 53, 401 compliant.
- NSF 42The NSF 42 standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
- NSF 53NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
- NSF 401NSF 401 addresses PFAS Reduction including PFOA, PFOS, PFHpA, PFHxS, and PFNA.
This drinking fountain provides no refrigeration. Please see A172.8-UG-VR Series if refrigeration is required.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Universal Bi-Level Wall Mount Drink Fountain [Model A172-UG - Standard, A172-UG-SO Sensor Activated, A172-UG-VR with Vandal Resistant Push Button] - includes parts manuals | 0 | 2 MB | ||
| | ADA Universal Bi-Level Wall Mount Drink Fountain with Vandal Resistant Push Buttons - No Refrigeration | 0 | 281 KB | ||
| | Option: 3,000-Gallon Capacity EZ Door® Filter | 0 | 924 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB | ||
| | Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series) | 0 | 101 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | Lead-Free Federal Law 111-380, cUPC, NSF/ANSI/CAN 61 |
| Refrigeration | No Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Round Vandal-Resistant Pushbutton, Universal bi-level - can be installed left high or right high |
| Activation | Drinking fountain - round vandal-resistant button |
| Accessibility | ADA Compliant |
| Style | A17 Series |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US 12,410,592 B2 (Drop-down Filter) |
| No. of Stations | 2 |
| Usage | Indoor, Outdoor, Corporate Campus, School Campus, Train Station |
| Brand | Maintenance Advantage®, EZ Door™ |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SK5 | Accessory: Skirt Assembly for ADA Bi-Level Water Cooler | ||

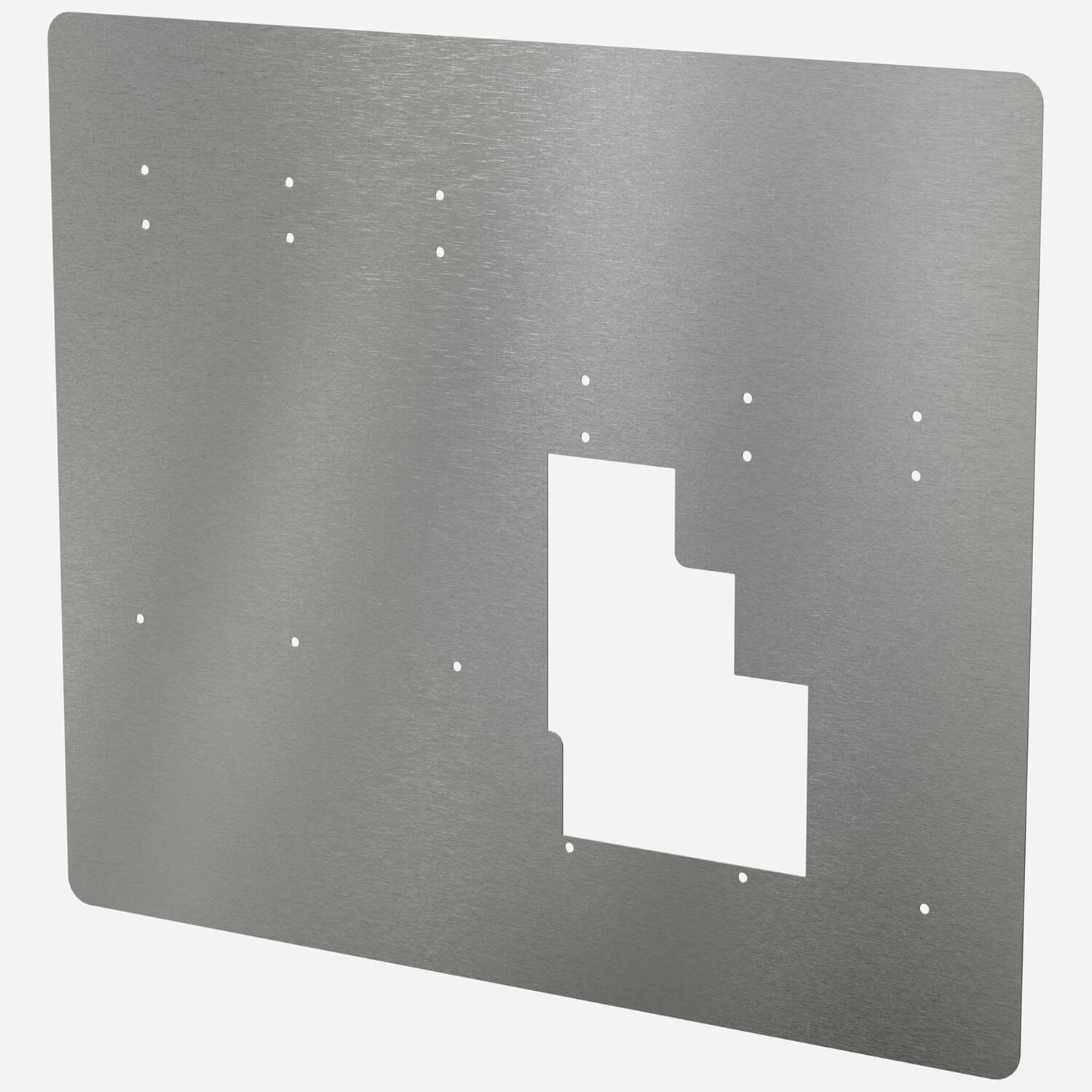

 | WB2 | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler - Orientation Right Unit Low | ||

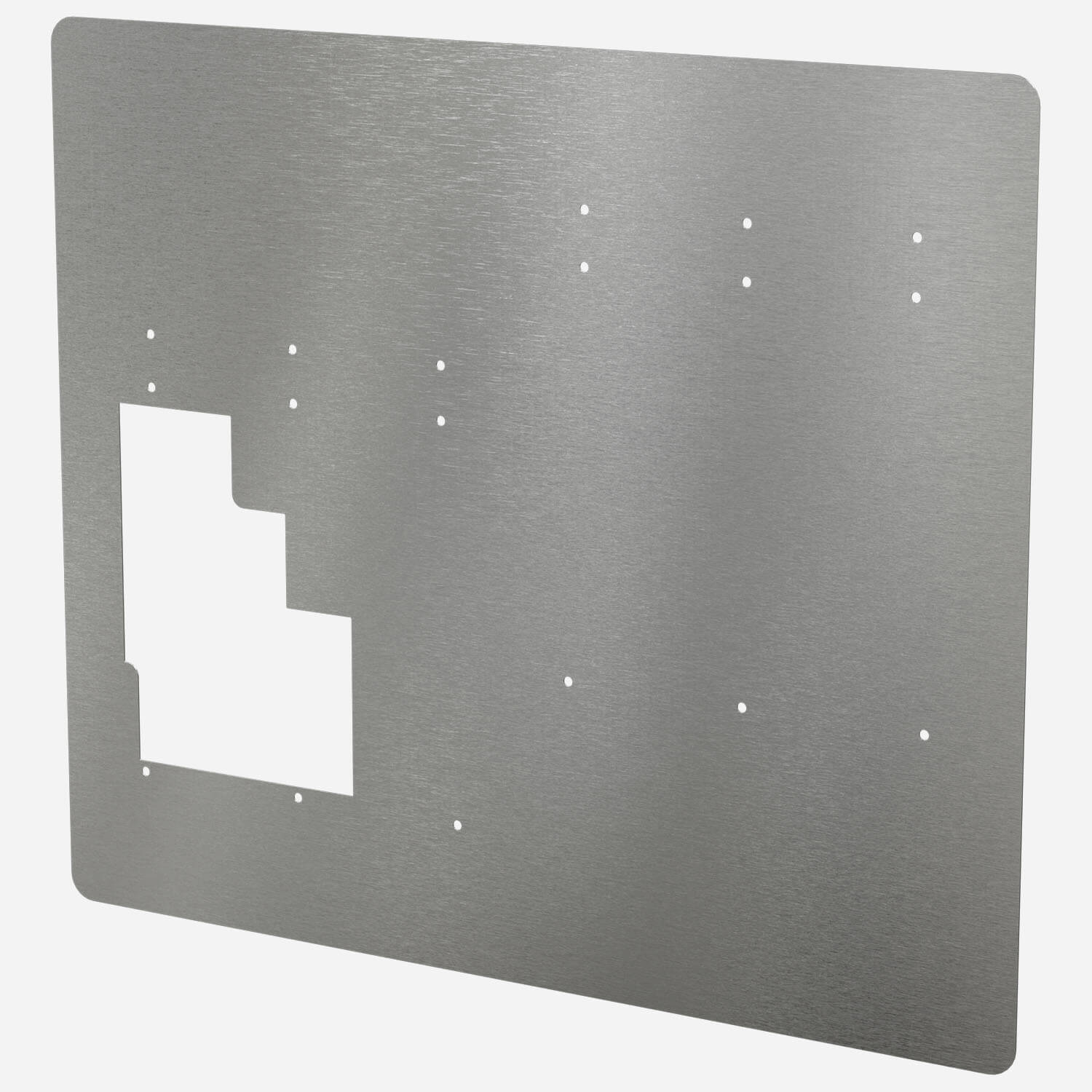

 | WB3 | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler - Orientation Left Unit Low |
Miscellaneous
Models
Bi-Level Drinking Fountain- each fountain features the following:
A172400S-UG-VR All-Stainless Steel Finish Stainless Steel Bubbler
A172400F-UG-VR All-Stainless Steel Finish Flexible Bubbler
A172100S-UG-VR Textural Grey Finish Stainless Steel Bubbler
A172100F-UG-VR Textural Grey Finish Flexible Bubbler
