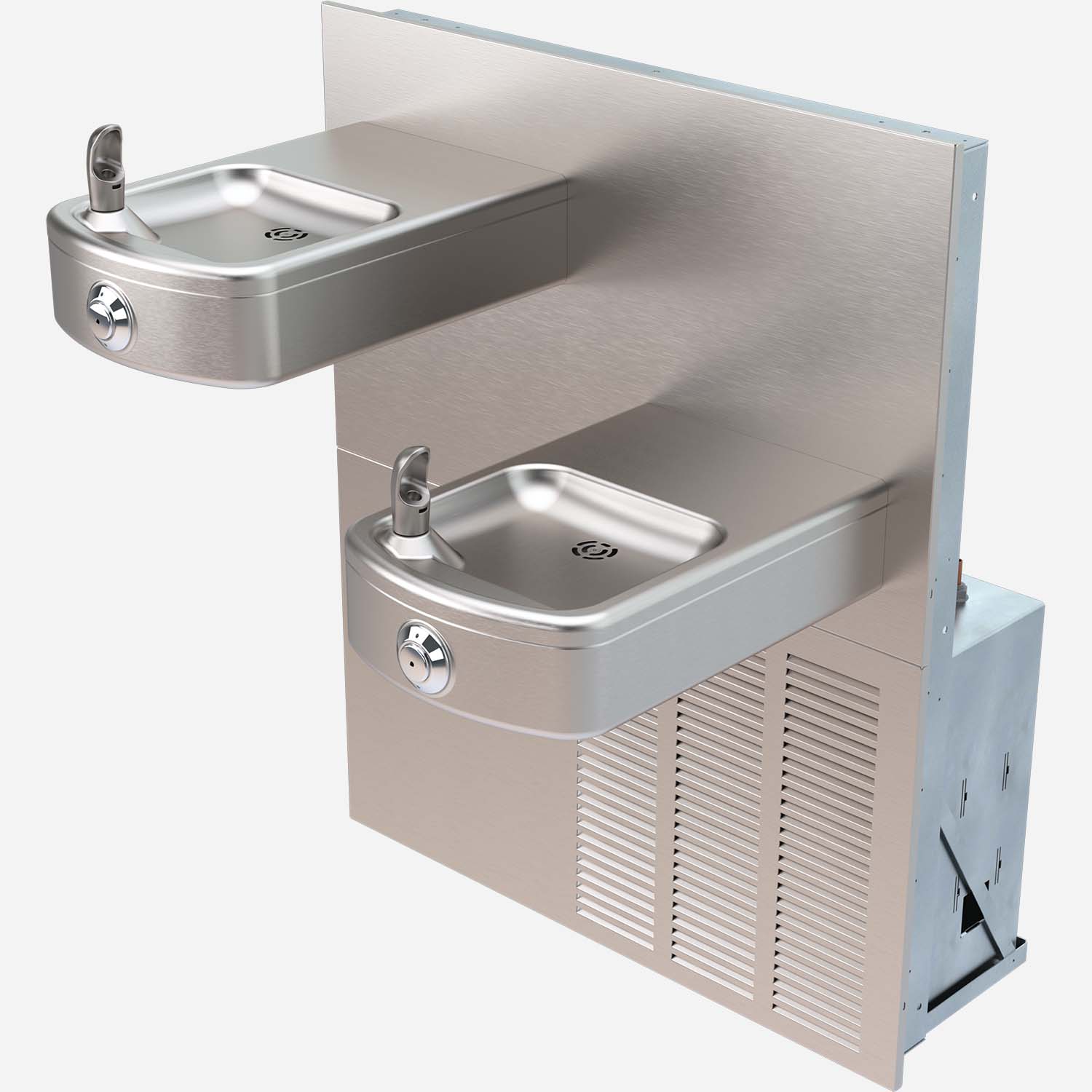

Vandal-Resistant, Wall-Mounted, Bi-Level, Square Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel

Find A Representative
Model A152.8-VR Series
ANSI/ASHRAE 18
IAPMO tested to NSF/ANSI 61, Section 9
UL Listed (US and Canada)
Installation Instructions
Manual A152.8-VR Series Water Cooler
View
Submittal
Submittal A152.8-VR Series Drink Fountain
View
Model A152.8-VR Series

Vandal-Resistant, Wall-Mounted, Bi-Level, Square Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel

This barrier-Free, vandal resistant, bi-level, rounded box drinking fountain features an 8 gallons per hour chiller. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when installed properly. The patented push button auto stop feature seamlessly incorporates the heavy-duty vandal resistant button for additional security while allowing easy access to the push button for routine maintenance. The stream height exiting the bubbler is easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit!

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual A152.8-VR Series Water Cooler
Rounded Box Chilled Barrier-Free Wall Mount Bi-Level Drinking Fountain [Standard Model A152408S-VR]; Sensor Activation [A152408S-SO]01 MB
PDF icon
Submittals
PDF icon
Submittal A152.8-VR Series Drink Fountain
Rounded Box Barrier-Free, Wall Mount Bi-Level Refrigerated Drink Fountain with Vandal Resistant Button [Standard Model A152408S-VR]0206 KB
PDF icon
Installation Instructions
PDF icon
Manual A9100080-A Chiller (pdf)
8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual0886 KB
PDF icon
Technical Data Sheets
PDF icon
Murdock Care and Cleaning Guide
Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products095 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 224716, Pressure Water Coolers (doc)
Murdock Mfg - Pressure Water Coolers0146 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 224716, Pressure Water Coolers (pdf)
Murdock Mfg - Pressure Water Coolers0219 KB
PDF icon
Brochures/Flyers
PDF icon
Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)
Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)03 MB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

StyleIndoor Rounded Box
Product FeaturesAuto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton
RefrigerationIn-Wall 8 GPH Chiller Provided
MountingWall-Mounted
MaterialStainless Steel
Material DetailAll-Stainless Steel, Bronze, High-Polish Gold, High-Polish Stainless Steel
CompliancesANSI/ASHRAE 18, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada)
ActivationPush Button
No. of Stations2
PatentUS 10,100,933 B2 (Auto-Stop Feature)

Options

Accessories

Model
Description
Downloads
Accessory: 3,000 Gallon PFAS Water Filter
WF3000
Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

Model
Description
Downloads
No available options

Models

Typical models are shown below

Stainless Steel Bowl, Stainless Steel Bubbler

A152408S-VR All-Stainless Steel Lead-Free Stainless Steel Bubbler

Stainless Steel Bowl, Flexible Bubbler

A152408F-VR All-Stainless Steel, Flexible Bubbler

High Polish Stainless Steel B, Stainless Steel Bubbler

A152408S-VR-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler

Bronze Finish

A152208S-VR Bronze Finish with matching finish bubbler

High Polish Gold Finish

A152308S-VR High Polished Gold Finish with matching finish bubbler

Popular Options/Accessories include:

-WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -WF3 | 3000 gallon capacity, NSF 42+53, 1-micron lead reduction filter -RBL | Reverse bi-Level - right fountain high, left fountain low -SK3-18 | Skirt kit for upper fountain -220V | 220 volt/50 Mz compressor (CE compliant)

Other options may available. See Options List and/or Submittal

Note: Mounting frame A0000000-MF5 may be ordered in advance for a pre-mounted rough-in.
