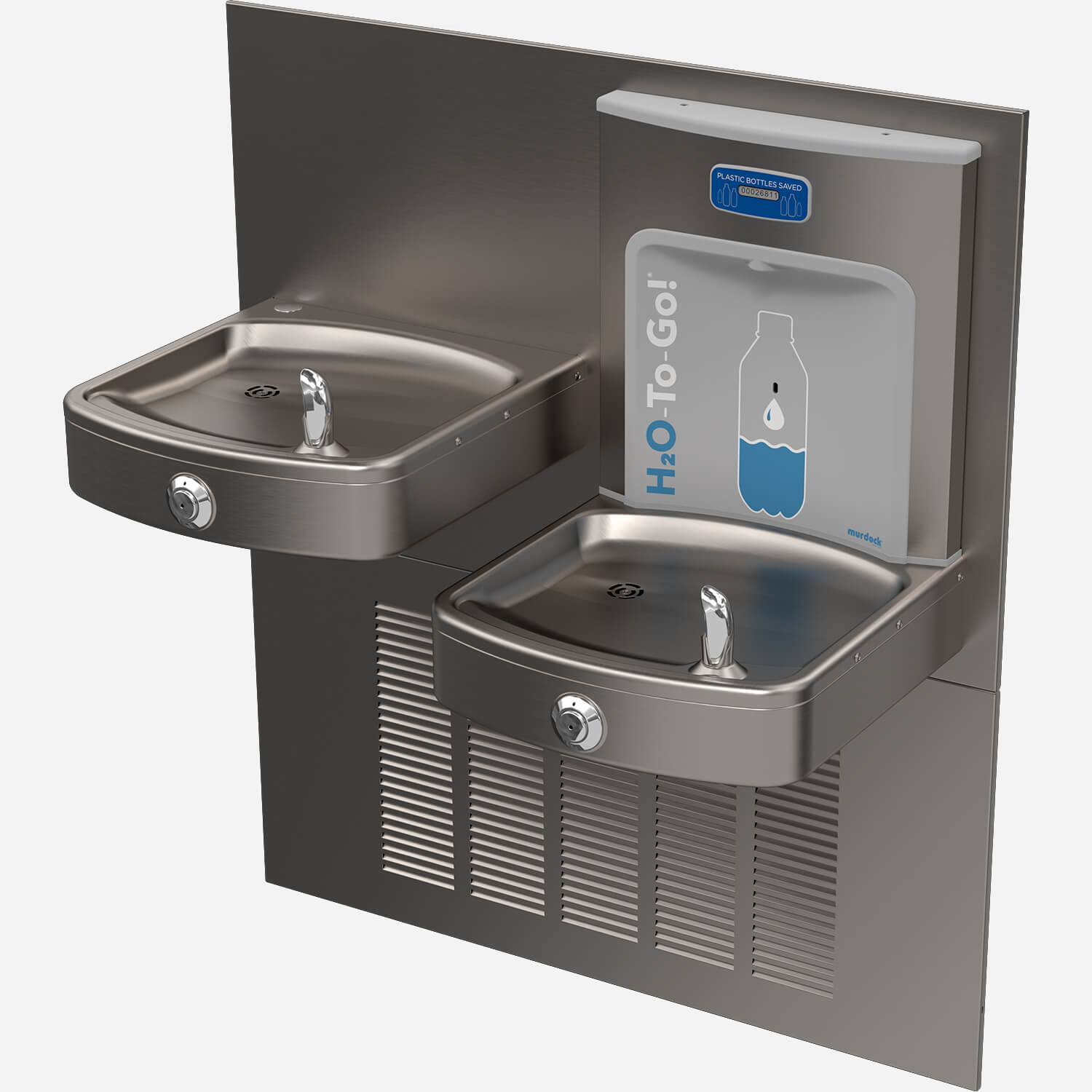

Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Bottle Filling Station - In-Wall Refrigeration (8GPH), ADA, Stainless Steel
This combination unit includes two barrier-free drinking fountain decks similar to Murdock's A17 Series drinking fountains/coolers. Each drinking fountain features a round vandal-resistant push button. It also includes H2O-To-Go!® Bottle Filler that sits on the lower drinking fountain deck.
This unit has an in-wall 8 gallon (30.3 liters) per hour chiller assembly that serves both the fountain and bottle filler. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when installed properly. Accessibility compliance is subject to the local code enforcement authority. The patented push-button auto stop feature seamlessly incorporates the heavy-duty vandal-resistant button for additional security while allowing easy access for routine maintenance. The stream height exiting the bubbler is easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit!
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Barrier-Free Wide Bi-Level Water Cooler with H2O-To-Go!® Deck-Mounted Bottle Filler [A192408S-BF12/-BF11/-BF12-BCD/-BF12-BAT Stainless Steel Bubblers; A192408F-BF12/-BF11/-BF12-BCD/-BF12-BAT Flexible Bubblers] | 0 | 2 MB | ||
| | Barrier-Free, Bi-Level Wide Water Cooler with H2O to go!® Deck Mount Bottle Filler | 0 | 248 KB | ||
 | | Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Bottle Filling Station - In-Wall Refrigeration (8GPH), ADA, Stainless Steel | 0 | 3 MB | ||
| | Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Bottle Filling Station - In-Wall Refrigeration (8GPH), ADA, Stainless Steel | 0 | 1 MB | ||
| | 8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual | 0 | 886 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Pressure Water Coolers | 0 | 146 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 0 | 219 KB | ||
| | Re-Open Safely and Quickly with Commercial Hand Sinks and Water Refill Stations from Murdock Manufacturing. | 0 | 2 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
| | MM - Maintenace Advantage (pdf) | 0 | 6 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Brand | H2O-To-Go!® |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton, Wide Basin, Maintenance Advantage® – Easy Maintenance Design, Bottle Filler Shares Drinking Fountain/Water Cooler Supply |
| Material | Stainless Steel |
| Activation | Push Button, Bottle filler - sensor |
| Mounting | Wall-Mounted |
| No. of Stations | 2 |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| Patent | US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler), US 10,100,933 B2 (Auto-Stop Feature) |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -220V | Option: Electrical 220 Volts | ||
 | -RBL | Option: Reverse Bi-Level - Left Low/Right High | ||
 | BCD | Option: Bottle Counter Display | ||
 | BF11 | Deck-Mounted H2O-to-Go!® Push Button Water Bottle Filling Station (A17 Series Add-On) - ADA, Stainless Steel | ||
 | BF12 | Deck-Mounted H2O-to-Go!® Touchless Water Bottle Filling Station - A17 Series Add-On, ADA, Stainless Steel |
Models
A192408 -
Drinking Fountain Configuration
A192408 S All-Stainless Steel Lead-Free Stainless Steel Bubbler Round Vandal-Resistant Pushbutton
A192408 F All-Stainless Steel Flexible Bubbler Round Vandal-Resistant Pushbutton
Bottle Filler Configuration
-BF12 Plug-in Sensor Activated
-BF12-BAT Battery Powered Sensor Activated
-BF12-BCD Plug-in Sensor Activated Bottle Counter Display
-BF11 Pushbutton Activated (no electrical)
Popular Options include:
-WF1 | 1500-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter-WF3 | 3000-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter-220V | 220 volt / 50 Hz compressor-SK11 | Skirt kit, stainless steel, for upper unit-RBL | Reverse Bi-Level (Bottle Filler Opposite) Mounting Plate
Other options may be available. See Options List and/or Submittal
