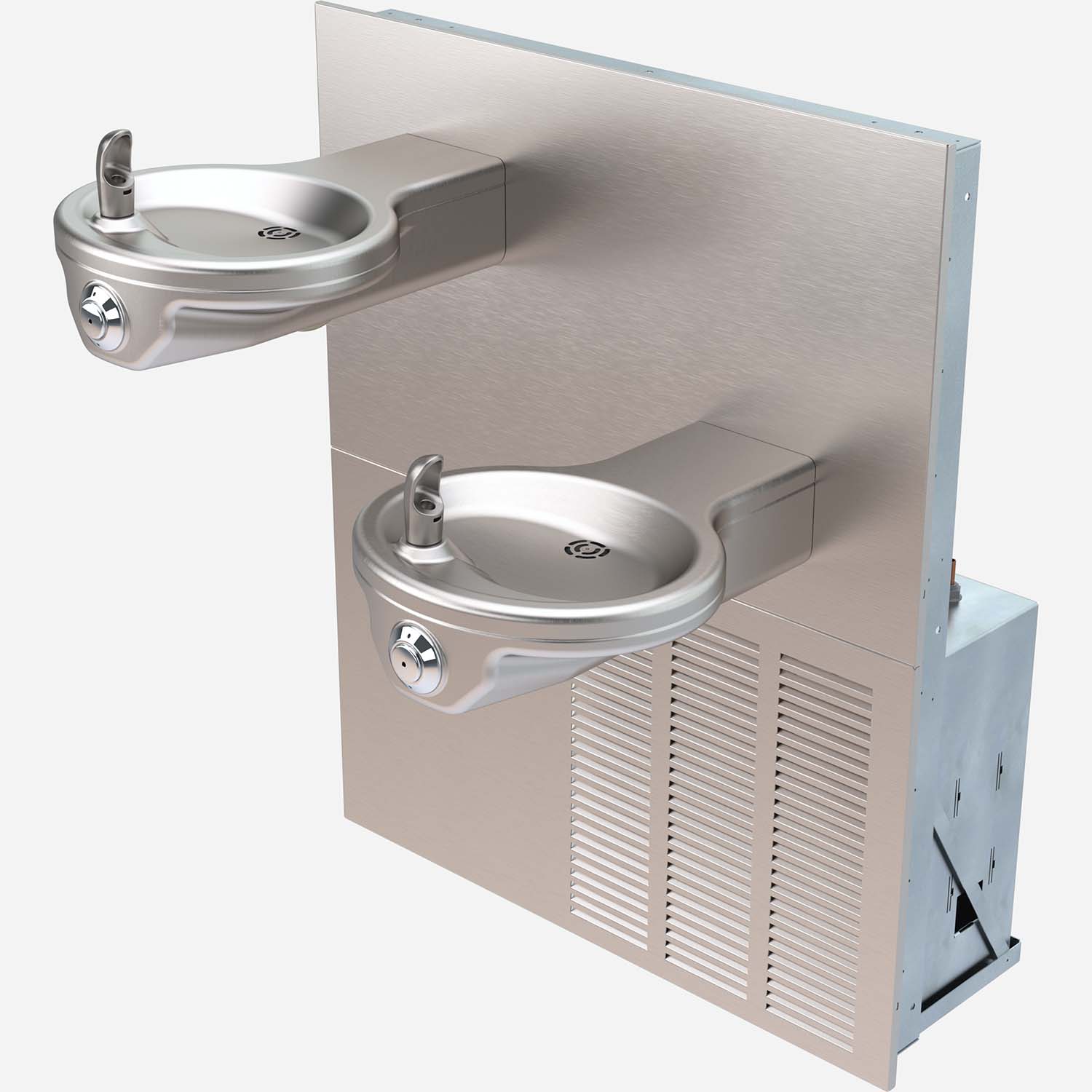

Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Oval Bowl Chilled Barrier-Free Wall Mount Bi-Level Drinking Fountain [Standard Model A132408S-VR]; also includes Sensor Activated [A132408S-SO] | 0 | 1 MB | ||
| | Oval, Barrier-Free, Bi-Level Wall Mount Refrigerated Drinking Fountain with Vandal Resistant Button and Auto Stop | 0 | 212 KB | ||
 | | Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel [A132408F-VR | All-Stainless Steel Fountain - Flexible Bubbler] | 0 | 904 KB | ||
| | Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel [A132408F-VR | All-Stainless Steel Fountain - Flexible Bubbler] | 0 | 350 KB | ||
| | 8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual | 0 | 886 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Pressure Water Coolers | 0 | 146 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 0 | 219 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Bronze, High-Polish Gold, High-Polish Stainless Steel |
| Mounting | Wall-Mounted |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| No. of Stations | 2 |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design |
| Style | Indoor Oval Bowl |
| Compliances | ANSI/ASHRAE 18, CE, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada) |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D546,607 S (Ornamental Design of Oval Fountain) |
Options
Models
Typical models are shown below
A132408S-VR All-Stainless Steel Lead-Free Stainless Steel Bubbler
A132408F-VR All-Stainless Steel, Flexible Bubbler
A132408S-HP-VR High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A132208S-VR Bronze Finish with matching finish bubbler
A132308S-VR High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:
-RBL | Reverse bi-level -SK4-18 | Skirt kit, stainless steel, for upper unit -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -220V | 220 volt / 50 Hz compressor
Other options are available. See Options List and/or Submittal
Note: Mounting frame A0000000-MF5 may be ordered in advance for a pre-mounted rough-in.
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A13-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
