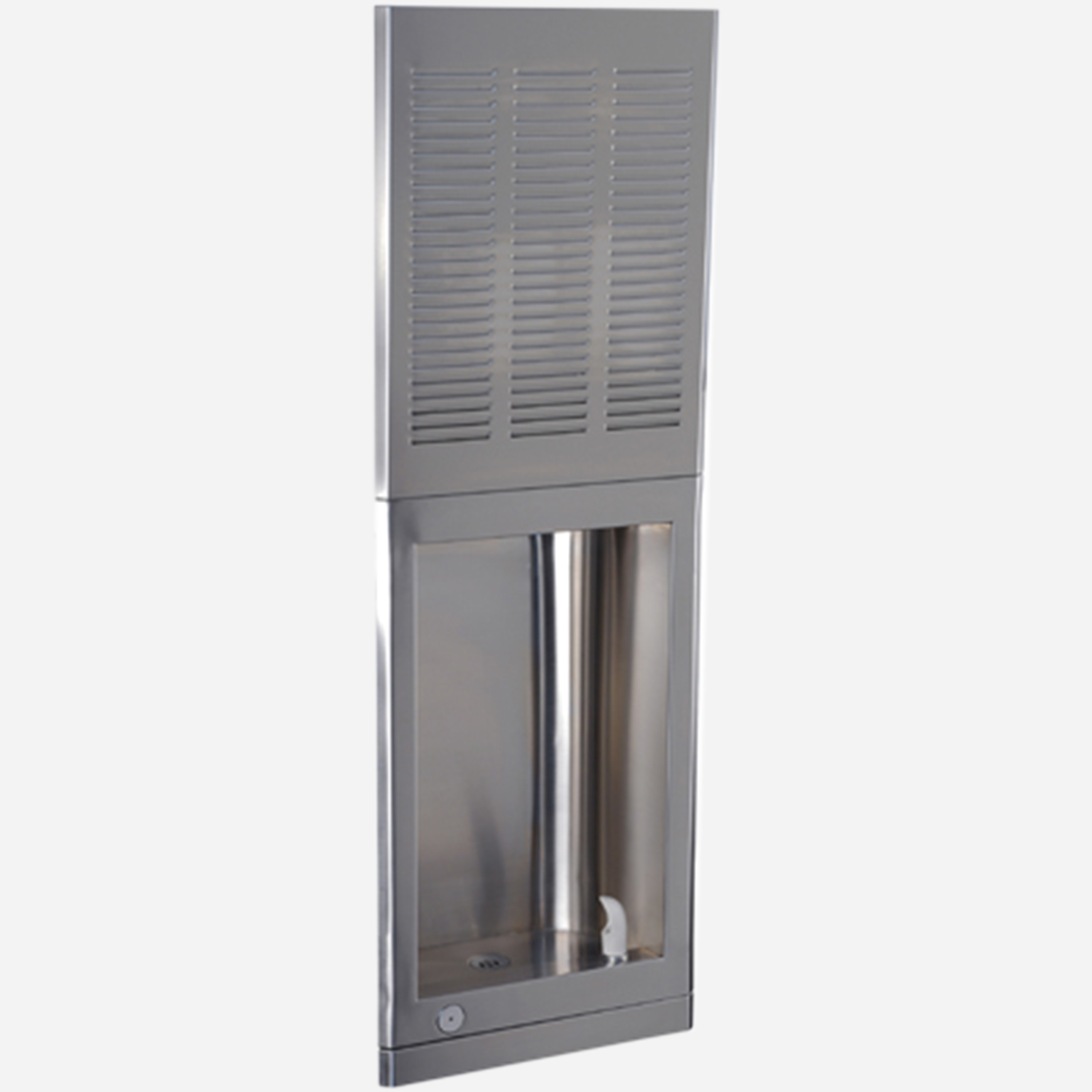

Recessed, Inverted, Stainless Steel Drinking Fountain - In-Unit Refrigeration (8GPH), ADA
This durable barrier-free stainless steel recessed water cooler features an in-wall top mount chiller rated at 8 gallons (30.3 liters) per hour. It is child or adult ADA compliant when properly installed with a knee clearance alcove.

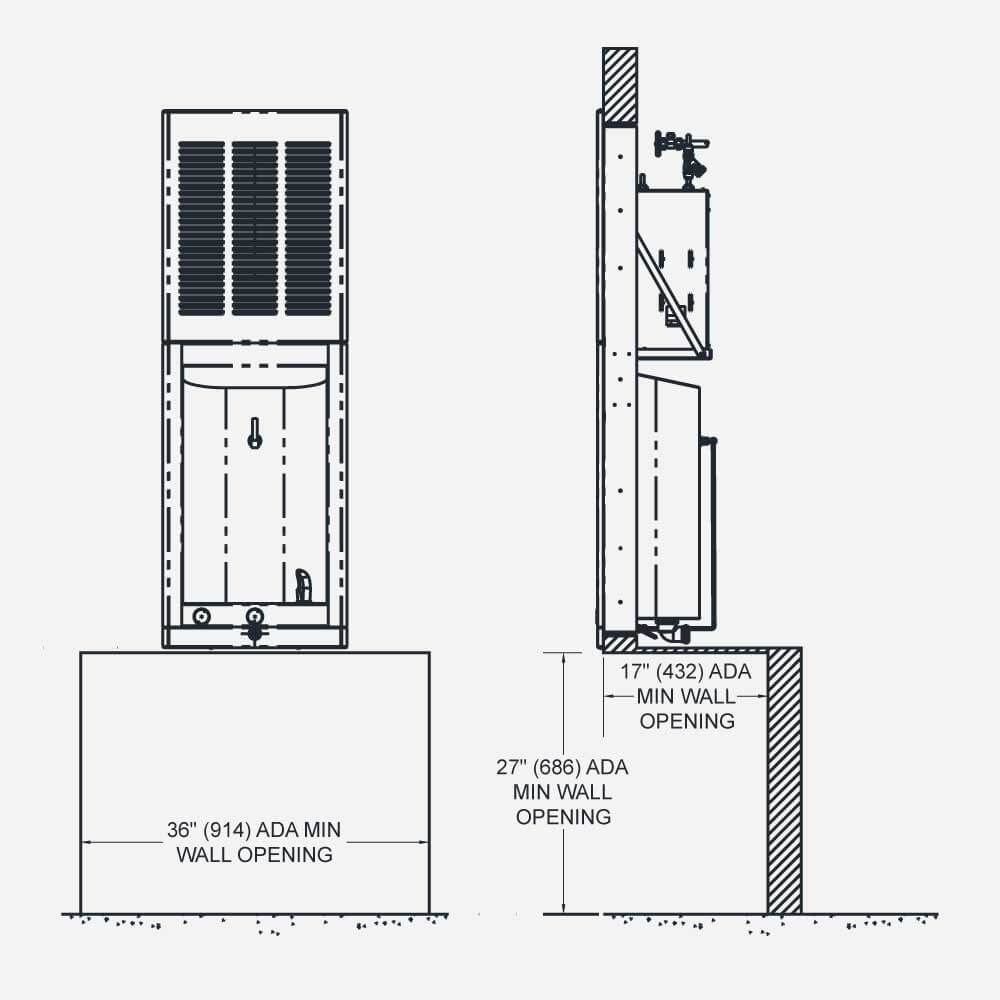

Mounting requirements - 17" (432 mm) width x 53 (1,346 mm) height wall opening for the fountain; Minimum 36" (914 mm) width x 27" (686 mm) height x 17" (432 mm) front-to-back ADA knee-clearance alcove is required.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Barrier-Free (Chiller on Top) Stainless Steel Recessed Chilled Drinking Fountain [Standard Model AI81408S] | 0 | 778 KB | ||
| | Barrier-Free (Chiller on Top) Stainless Steel Recessed Chilled Drinking Fountain [Standard Model AI81408S] | 0 | 186 KB | ||
| | 8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual | 0 | 886 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Pressure Water Coolers | 0 | 146 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 0 | 219 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Recessed |
| Material | Stainless Steel |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| Compliances | ANSI/ASHRAE 18, UL Listed (US and Canada), cUPC, CE complaint for 220 V electrical, Lead-Free Federal Law 111-380 |
| Accessibility | ADA Compliant |
| Usage | Indoor |
| Product Features | Round Vandal-Resistant Pushbutton, Chiller includes Water Leak Detection Auto Shut-Off Valve, Chiller on top, ADA knee clearance alcove required |
Options
Models
AI81408F featuring Flexible Bubbler
AI81408S featuring Lead-Free Stainless Steel Bubbler
Popular Options include:
-GF2 | Horizontal Glass Filler -WF3000 | 3000-gallon PFAS Water Filter
Other options are available. See Options List and/or Submittal
