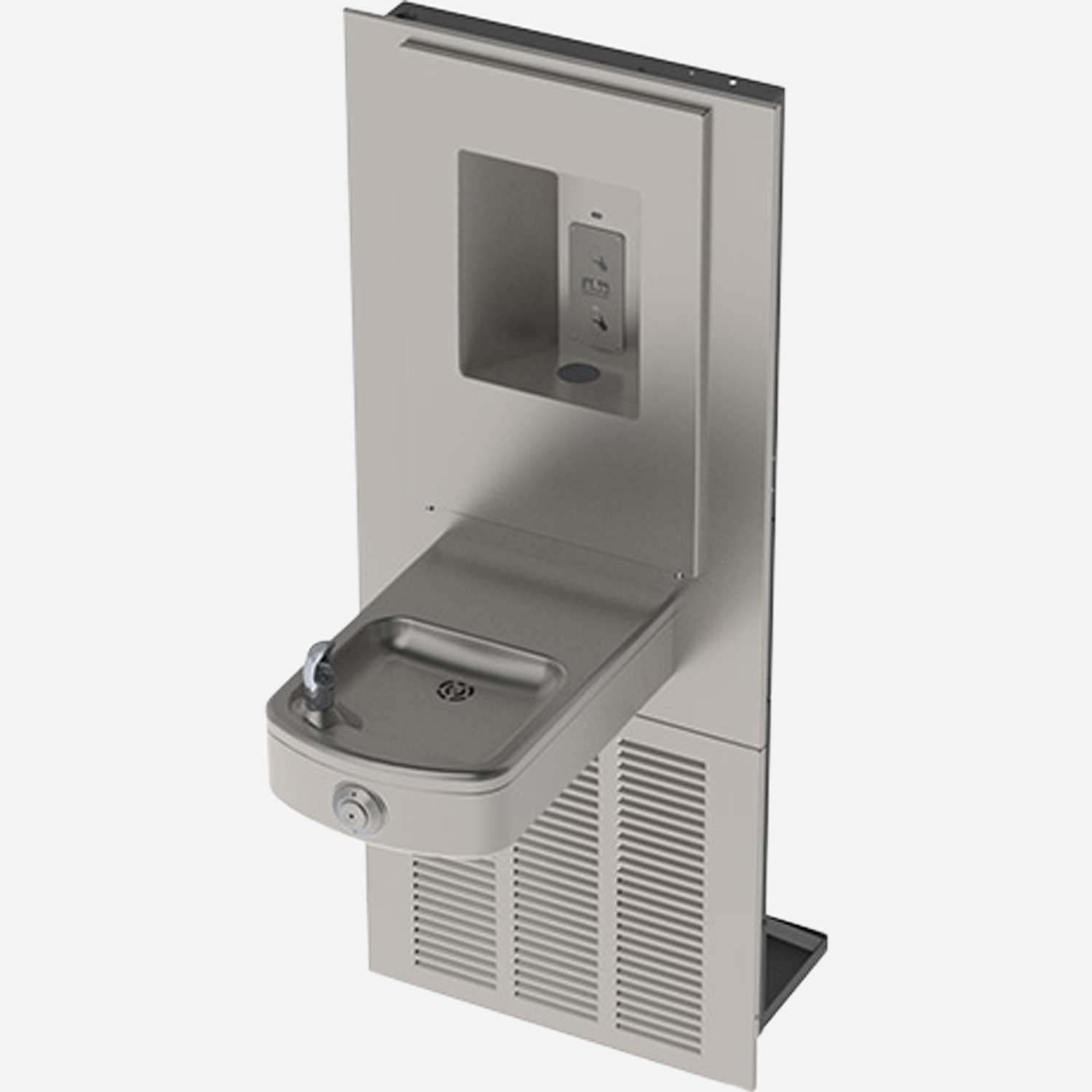

Vandal-Resistant, Wall-Mounted, Square Drinking Fountain with Touchless Water Bottle Filling Station - In-Wall Refrigeration (8GPH), ADA, Stainless Steel

Find A Representative
Model A151.8-VR-BF Series
ANSI/ASHRAE 18
IAPMO tested to NSF/ANSI 61, Section 9
UL Listed (US and Canada)
Installation Instructions
Manual A151.8-VR-BF Series Water Cooler - Bottle Filler
View
Submittal
Submittal A151.8-VR-BF4 Series Water Cooler with (Sensor) Bottle Filler (pdf)
View
Model A151.8-VR-BF Series

Vandal-Resistant, Wall-Mounted, Square Drinking Fountain with Touchless Water Bottle Filling Station - In-Wall Refrigeration (8GPH), ADA, Stainless Steel

This durable, stainless steel, semi-recessed, rounded box water cooler includes a bottle filler and features a round vandal resistant push button with auto stop. The patented push button auto stop feature seamlessly incorporates the heavy-duty vandal resistant button for additional security while allowing easy access to the push button for routine maintenance. The stream height exiting the bubbler is easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit! Fixture meets ADA, ADA Standing Person, and ADA Child requirements when installed properly.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual A151.8-VR-BF Series Water Cooler - Bottle Filler
Rounded Box Chilled Barrier-Free Wall Mount Drinking Fountain with Sensor Activated Bottle Filler [Standard Model A151408S-VR-BF4]; includes Parts Manual02 MB
PDF icon
Submittals
PDF icon
Submittal A151.8-VR-BF4 Series Water Cooler with (Sensor) Bottle Filler (pdf)
Rounded Box Barrier-Free Wall Mount Water Cooler with Vandal Resistant Button and Sensor Bottle Filler [Standard Model A151408S-VR-BF4]0250 KB
PDF icon
Installation Instructions
PDF icon
Manual A9100080-A Chiller (pdf)
8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual0886 KB
PDF icon
Technical Data Sheets
PDF icon
Murdock Care and Cleaning Guide
Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products095 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 224716, Pressure Water Coolers (doc)
Murdock Mfg - Pressure Water Coolers0146 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 224716, Pressure Water Coolers (pdf)
Murdock Mfg - Pressure Water Coolers0219 KB
PDF icon
Brochures/Flyers
PDF icon
Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)
Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)03 MB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

StyleIndoor Rounded Box
Product FeaturesBottle Filler Shares Drinking Fountain/Water Cooler Supply, Round Vandal-Resistant Pushbutton, Auto-Stop (Servicing Strainer Shuts Off Water Supply)
MountingWall-Mounted
MaterialStainless Steel
Material DetailAll-Stainless Steel, Bronze, High-Polish Gold, High-Polish Stainless Steel
ActivationPush Button
RefrigerationIn-Wall 8 GPH Chiller Provided
CompliancesANSI/ASHRAE 18, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada)
PatentUS 10,100,933 B2 (Auto-Stop Feature)

Options

Accessories

Model
Description
Downloads
Accessory: 3,000 Gallon PFAS Water Filter
WF3000
Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

Model
Description
Downloads
No available options

Models

Typical models are shown below

Stainless Steel Bowl, Stainless Steel Bubbler

A151408S-VR-BF4 All-Stainless Steel Lead-Free Stainless Steel Bubbler

Stainless Steel Bowl, Flexible Bubbler

A151408F-VR-BF4 All-Stainless Steel, Flexible Bubbler

High Polish Stainless Steel B, Stainless Steel Bubbler

A151408S-VR-BF4-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler

Bronze Finish

A151208S-VR-BF4 Bronze Finish with matching finish bubbler

High Polish Gold Finish

A151308S-VR-BF4 High Polished Gold Finish with matching finish bubbler

Plug-in

-BF4 Sensor, Plug-in Powered

Battery-Powered

-BF4-BAT Sensor, Battery-Powered

Plug-in,Bottle Counter Display

-BF4-BCD Sensor, Plug-in, Bottle Counter Display

Push Button Activated, no electrical

-BF3 Push Button Activated, No Electrical

Popular Options/Accessories include:-BCD | Bottle Counter Display (Bottle Filler) -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -HP | High polished stainless steel -220V | 220 volt / 50 Hz compressor

Other options are available. See Options List and/or Submittal
