Wall-Mounted, Pushbutton Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel

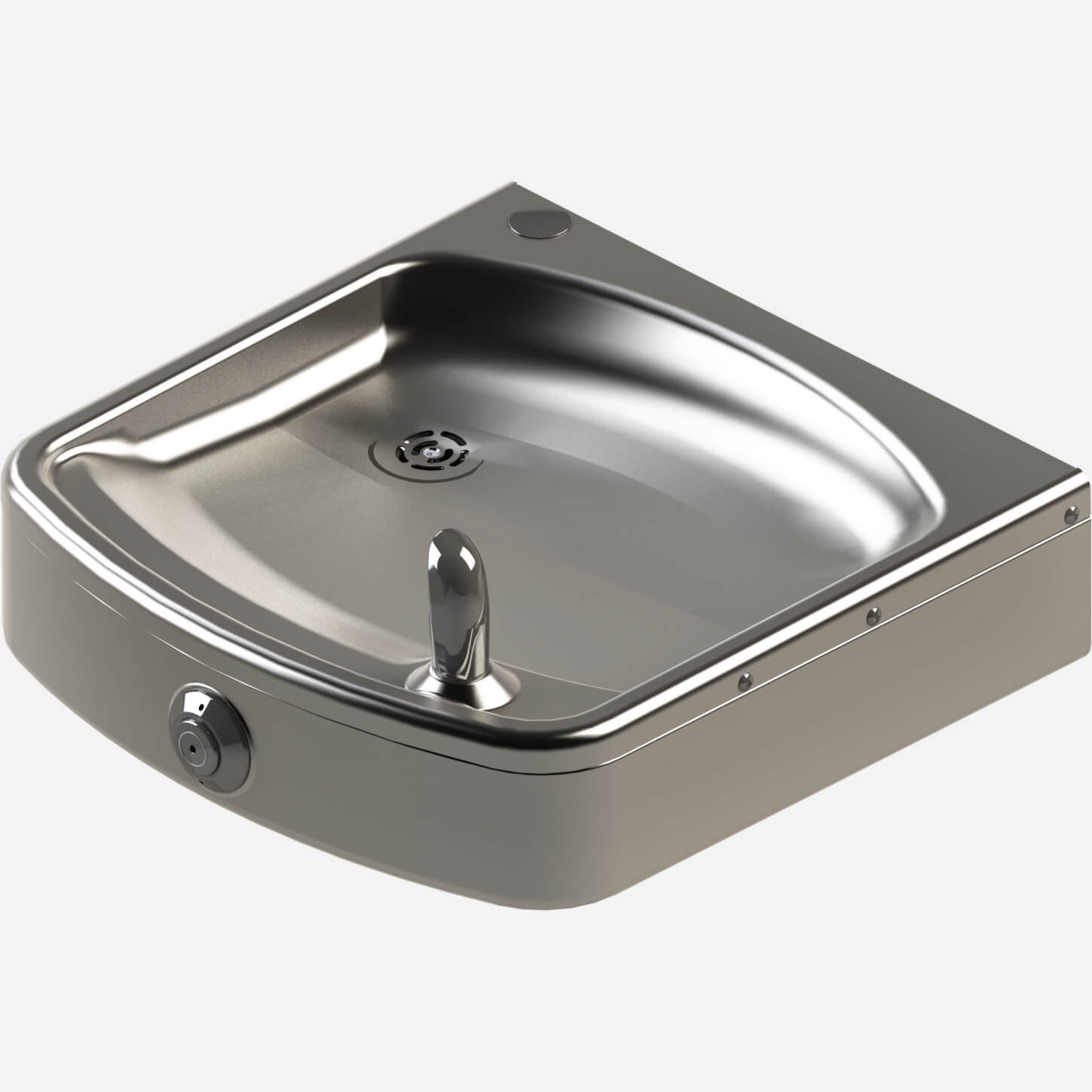

The A191-BF Drinking Fountain shall be constructed from 304 Stainless Steel. The fountain is activated with a round vandal-resistant button with a patented auto-stop feature. Mounted properly the fountain meets ADA, ADA Standing Person, and ADA Child requirements. Accessibility compliance is subject to the local code enforcement authority. A deck-mount H2O-To-Go! Bottle Filler sits on the lower drinking fountain deck. This Drinking Fountain/Bottle Filler is not refrigerated.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wall-Mounted, Pushbutton Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel | 0 | 2 MB | ||
| | Barrier-Free Wide Drinking Fountain with H2O to go!® Deck Mount Bottle Filler | 0 | 196 KB | ||
 | | Barrier-Free Wide Drinking Fountain with H2O-To-Go!® Deck-Mounted Bottle Filler | 0 | 1 MB | ||
| | Barrier-Free Wide Drinking Fountain with H2O-To-Go!® Deck-Mounted Bottle Filler | 0 | 346 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
| | Re-Open Safely and Quickly with Commercial Hand Sinks and Water Refill Stations from Murdock Manufacturing. | 0 | 2 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| Product Features | Wide Basin, Maintenance Advantage® – Easy Maintenance Design, Round Vandal-Resistant Pushbutton, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Bottle Filler Shares Drinking Fountain/Water Cooler Supply |
| Usage | Corporate Campus, Indoor |
| Brand | H2O-To-Go!® |
| Activation | Drinking fountain - round vandal-resistant button, Bottle filler - sensor |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9 |
| Refrigeration | No Refrigeration |
| Patent | US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler), US 10,100,933 B2 (Auto-Stop Feature) |
Options
Models
A191400 -
Drinking Fountain Configuration
A191400 S All-Stainless Steel Lead-Free Stainless Steel Bubbler Round Vandal-Resistant Pushbutton
A191400 F All-Stainless Steel Flexible Bubbler Round Vandal-Resistant Pushbutton
Bottle Filler Configuration

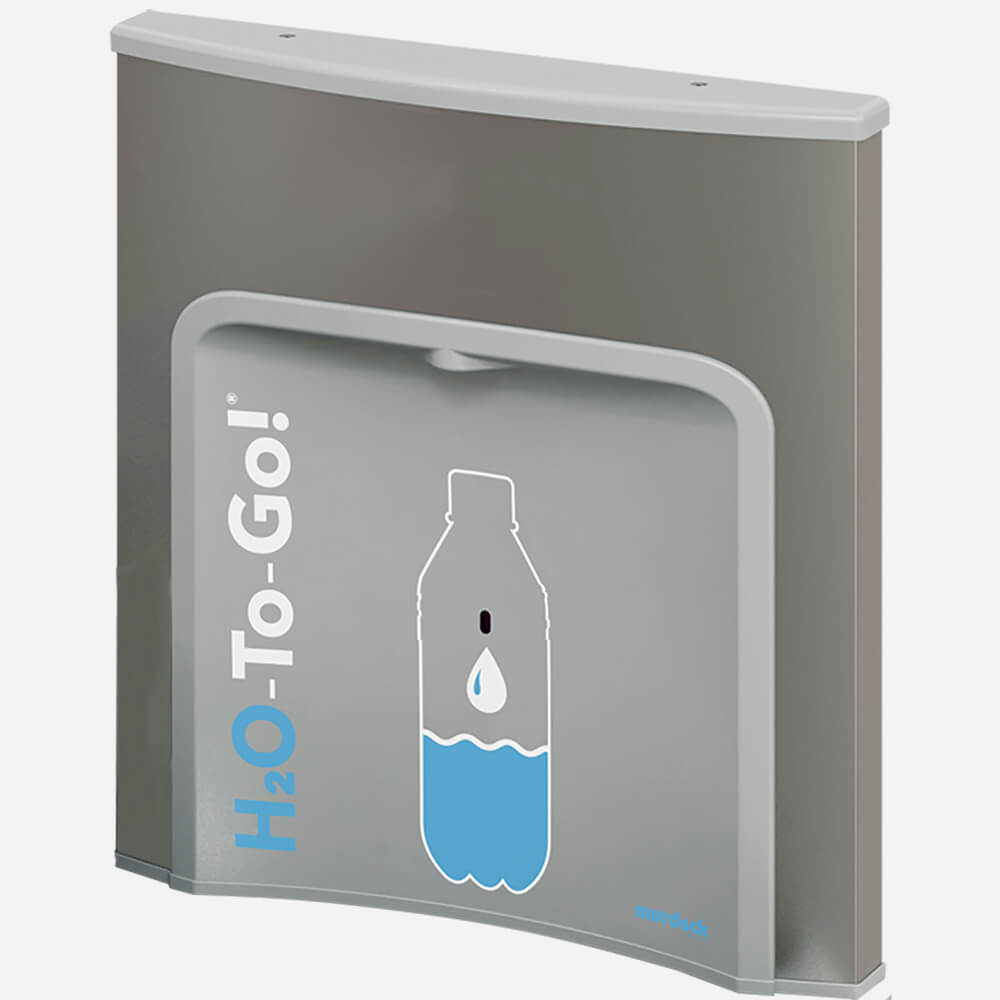

-BF12 Plug-in Sensor Activated
-BF12-BAT Battery Powered Sernser Activated

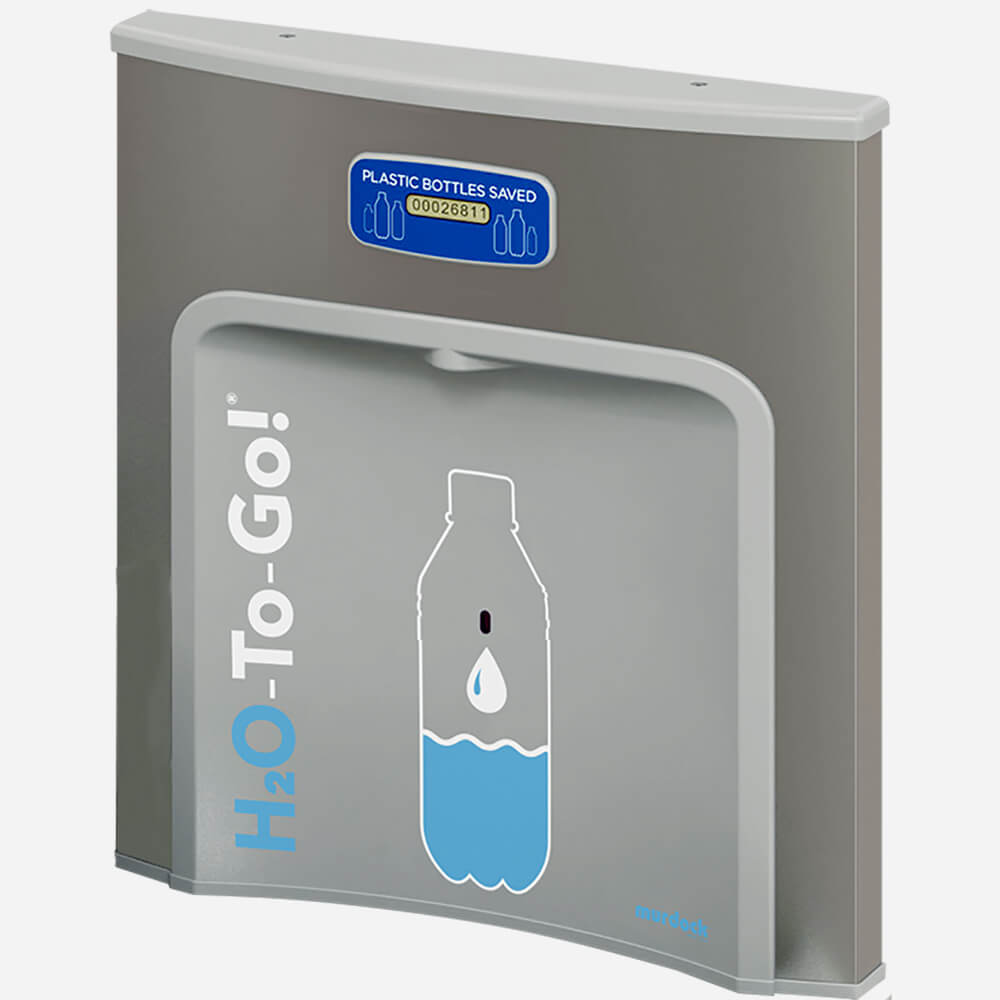

-BF12-BCD Plug-in Sensor Activated Bottle Counter Display
-BF11 Pushbutton Activated (no electrical)
Popular Options include:

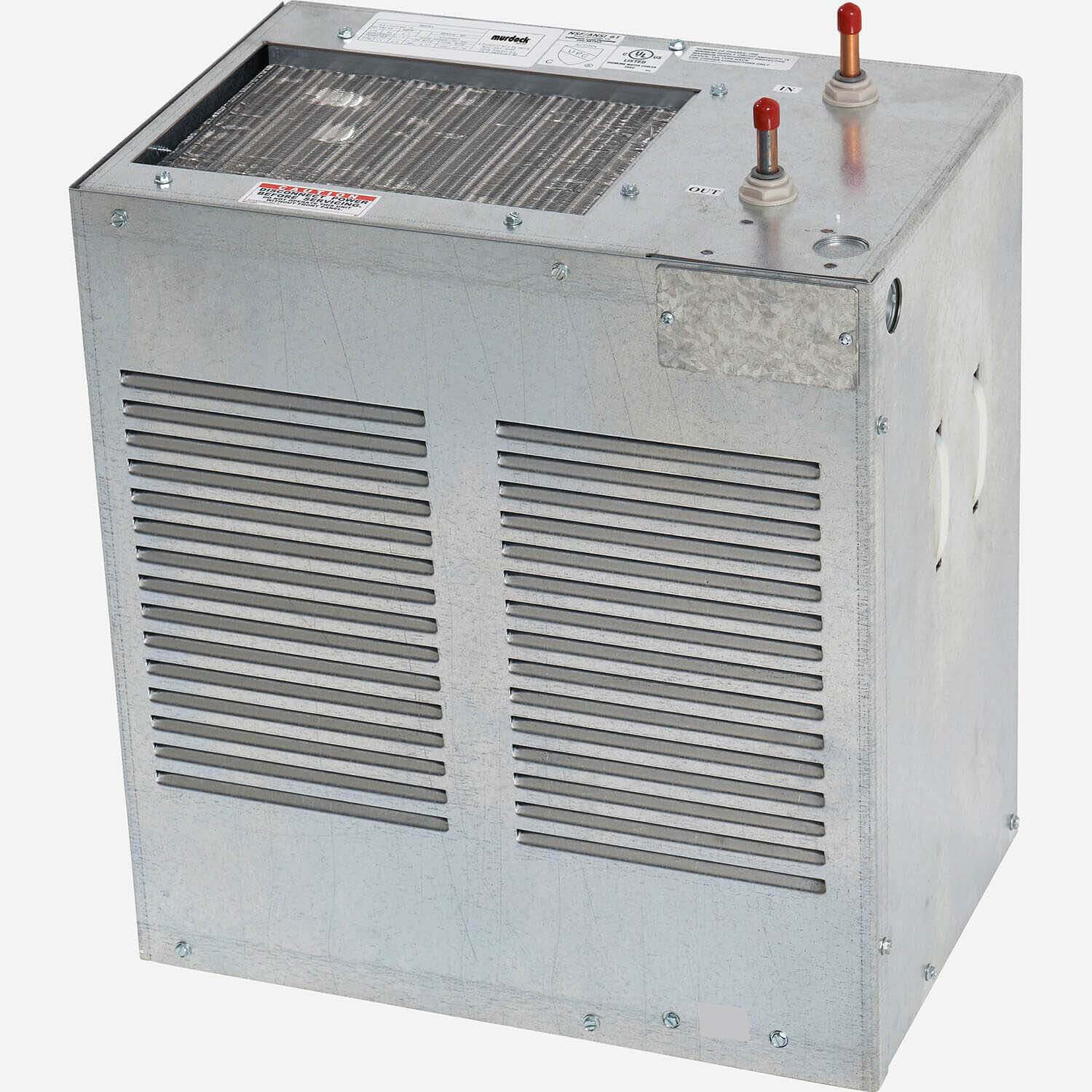

-WF3 | 3000-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter A9100080-A | Remote 8 gallon (30.3liter) per hour Chiller
Other options may be available. See Options List and/or Submittal
