Accessory: Skirt Assembly for Bi-Level Pedestal Drinking Fountain
Accessory -SK10 provides a stainless steel cane detection skirt, intended for use on extended arms where the anchoring pedestal is 12" (305 mm) in diameter. It is intended to meet or exceed accessibility requirements for protruding objects as indicated in ADA Standards for Accessible Design, ANSI Standards.
- Stainless Steel Skirt, available Powder Coated
- Fabricated of 14 gauge Stainless Steel and Polished to a #4 Satin Finish
- #10-32 UNF VR Screws provided
- For use with GYQ84 Series Bottle Filler/Drinking Fountain
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Accessory: Skirt Assembly for Bi-Level Pedestal Drinking Fountain | 0 | 85 KB | ||
| | Skirt Assembly – Pedestal Bottle Filler with Bi-Level Drinking Fountain (e.g., GYQ84) [A0004000-SK10 | All-Stainless Steel; A0005000-SK10 | Textured Fairway Green; A0006000-SK10 | Textured Firehouse Red; A0007000-SK10 | Textured Alpine Blue] | 0 | 118 KB |
Models

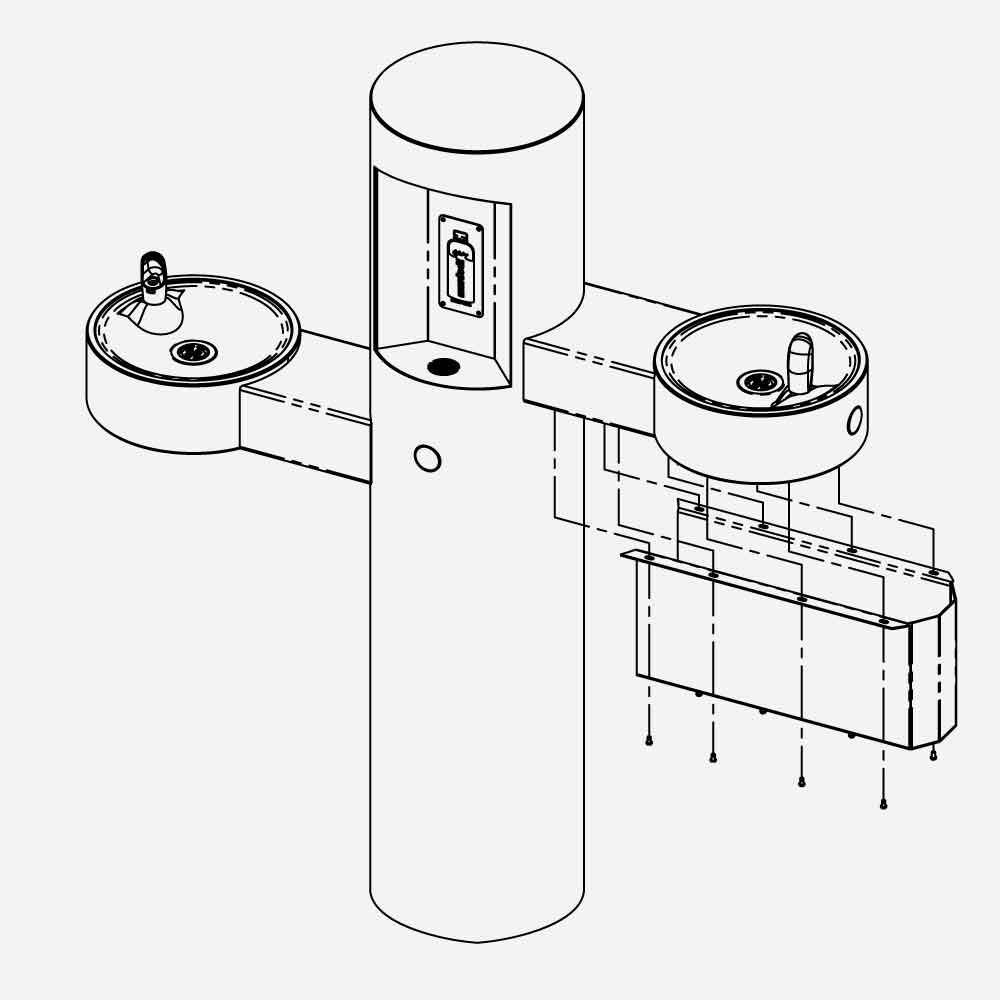

Typical models are shown below with their color configurations. The skirt measures 8-1/4" (210 mm) tall x 18-3/8" (467 mm) front-to-back x 5" (127 mm) with 15/16" (23.8 mm) side mounting flanges. The back end is designed to fit the contour of the GYQ84 bottle filler.
A000 4 000 -SK10 All-Stainless Steel
A000 5 000 -SK10 Textured Fairway Green
A000 6 000 -SK10 Textured Firehouse Red
A000 7 000 -SK10 Textured Alpine Blue
