Accessory: Mounting Plate for Bi-Level Non-Refrigerated Indoor Fountain

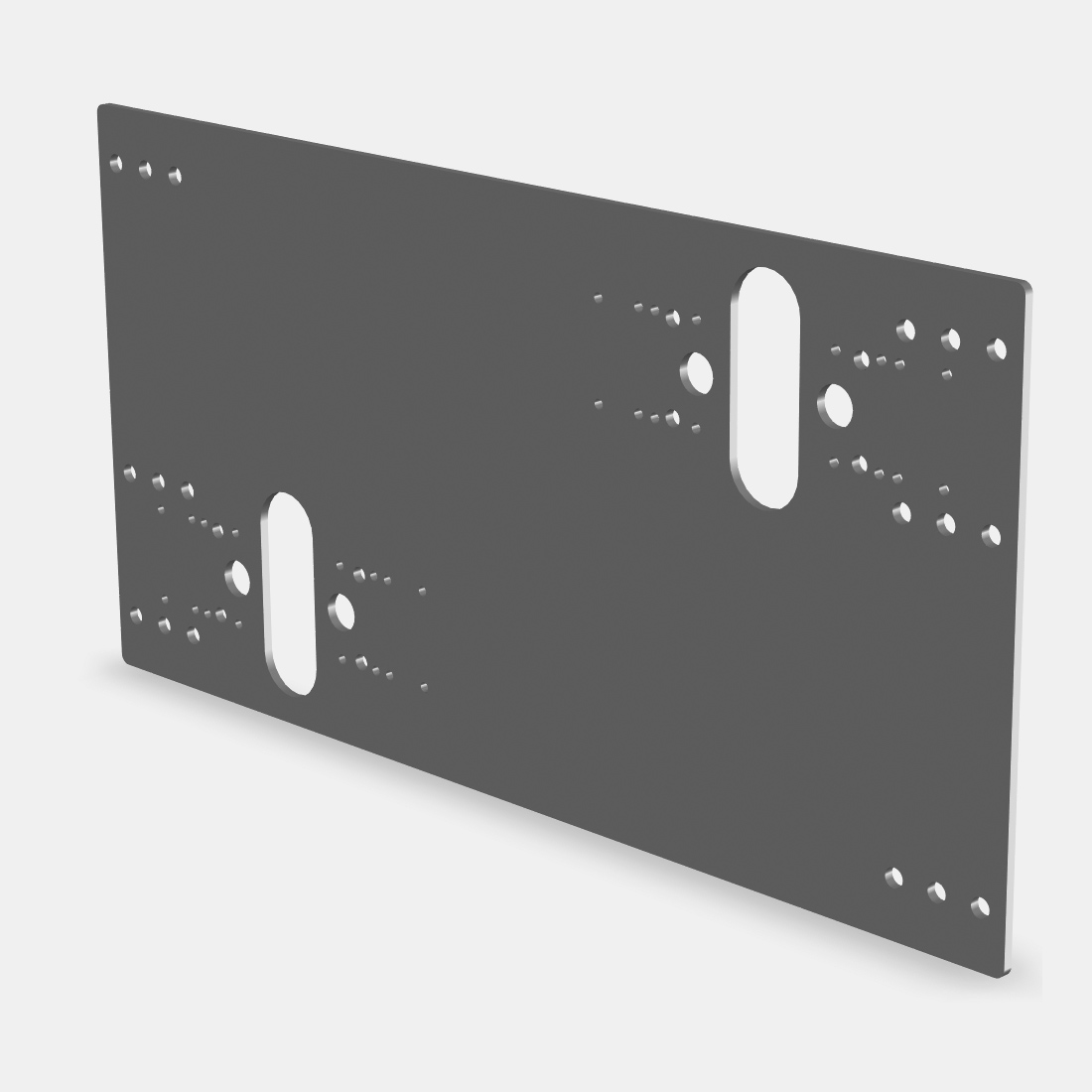

Model A0000000-MP2-W32 is a Mounting Plate for the installation of all Bi-Level, Non-Refrigerated Drinking Fountains. The Plate is mounted in the wall with the Studs that have been provided, prior to the wall being finished. This allows the Fountain to be easily and quickly mounted. If additional support is required, the Plate can be used with model A0000000-CSC concealed support carrier.
The plate is 29.875" (759 mm) side-to-side x 15-3/8" (390 mm) height. The mounting centers of the individual drinking fountain is 16" (406.4 mm) apart. The plate is typically used on A132-VR and A152-VR Bi-Level Drinking Fountains.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Mounting Plate – Bi-Level, Indoor Non-Refrigerated Drinking Fountains for Drinking Fountains (Typically for A132-VR and A152-VR Fountains) | 0 | 216 KB | ||
| | Mounting Plate – Bi-Level, Indoor Non-Refrigerated Drinking Fountains for Drinking Fountains (Typically for A132-VR and A152-VR Fountains) | 0 | 724 KB |
Details
The plate can be specified with -RBL if the lower ADA fountain is desired to be mounted on the left side.
