Accessory: Skirt Assembly, Bi-Level Round Outdoor Drinking Fountain
Accessory SK7 Series: This accessory is designed for Outdoor Round Bowl Bi-Level Drinking Fountain, typically for GRD65-BP6 Series or M-OBR4-GRD (with Bottle Filler) Series. The skirt is in compliance with ANSI Accessibility Guidelines for the blind on Bi-Level Handicap Drinking Fountains. When properly installed, the skirt also complies with ADA Standards. The unit includes all mounting hardware.
- Stainless Steel Skirt, available Powder Coated
- Fabricated of 16 gauge Stainless Steel and Polished to a #4 Satin Finish
- #10-32 UNF VR Screws provided
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Accessory: Skirt Assembly, Bi-Level Round Outdoor Drinking Fountain | 0 | 79 KB | ||
| | Stainless Steel Skirt Assembly – Bi-Level, Outdoor Drinking Fountains (e.g., GRD75-BP6 or M-OBR4-GRD) [A0004000-SK7 | All-Stainless Steel; A0005000-SK7 | Textured Fairway Green; A0006000-SK7 | Textured Firehouse Red; A0007000-SK7 | Textured Alpine Blue] | 0 | 564 KB |
Models

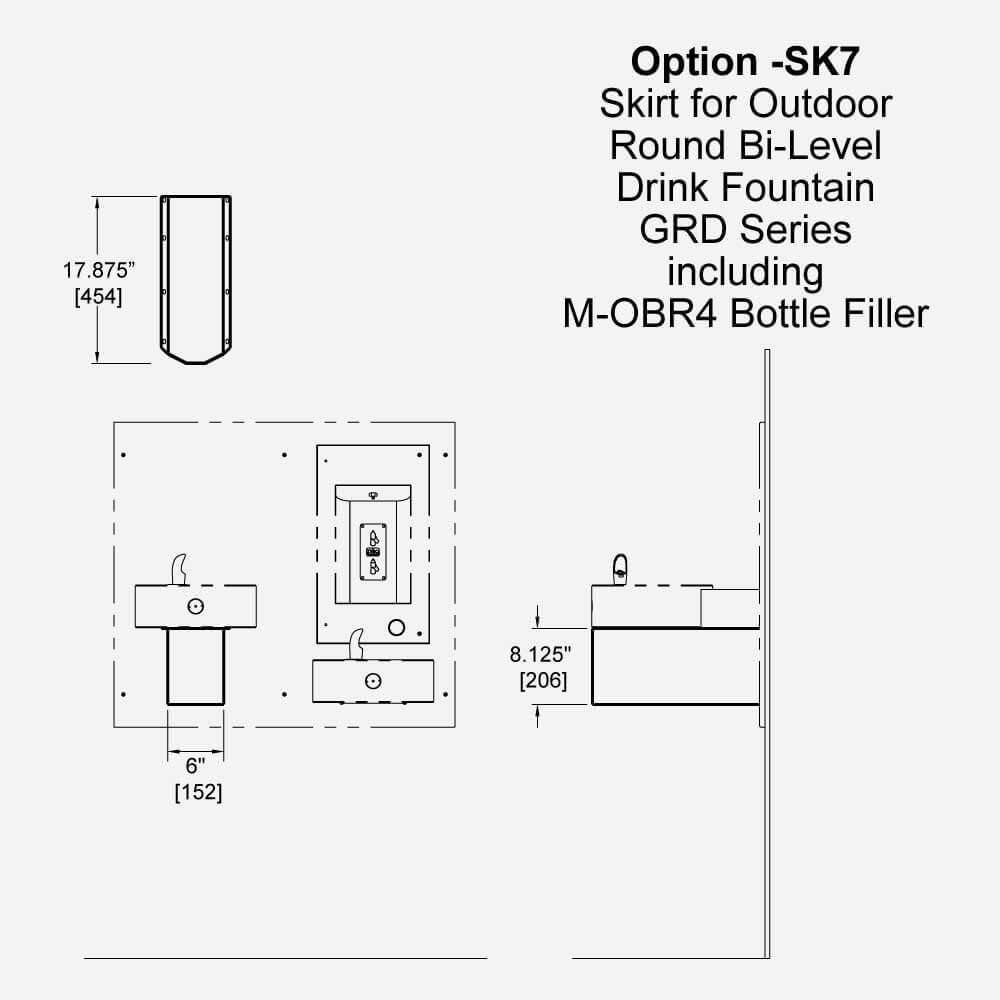

Typical models are shown below with their color configurations. The skirt measures 8-1/8" (206 mm) tall x 18-7/8" (454 mm) front-to-back x 6" (152 mm) width. The back end meets flat against the coverplate for the drinking fountain.
A000 4 000 -SK7 Use below upper drink ftn on All-Stainless Steel GRD64-BP6 Bi-Level Drink Ftn M-OBR4-GRD Bottle Filler/Bi-Level Drink Ftn
A000 5 000 -SK7 Use below upper drink ftn on Textured Green GRD65-BP6 Bi-Level Drink Ftn M-OBR5-GRD Bottle Filler/Bi-Level Drink Ftn
A000 6 000 -SK7 Use below upper drink ftn on Textured Red GRD66-BP6 Bi-Level Drink Ftn M-OBR6-GRD Bottle Filler/Bi-Level Drink Ftn
A000 7 000 -SK7 Use below upper drink ftn on Textured Blue GRD67-BP6 Bi-Level Drink Ftn M-OBR7-GRD Bottle Filler/Bi-Level Drink Ftn
