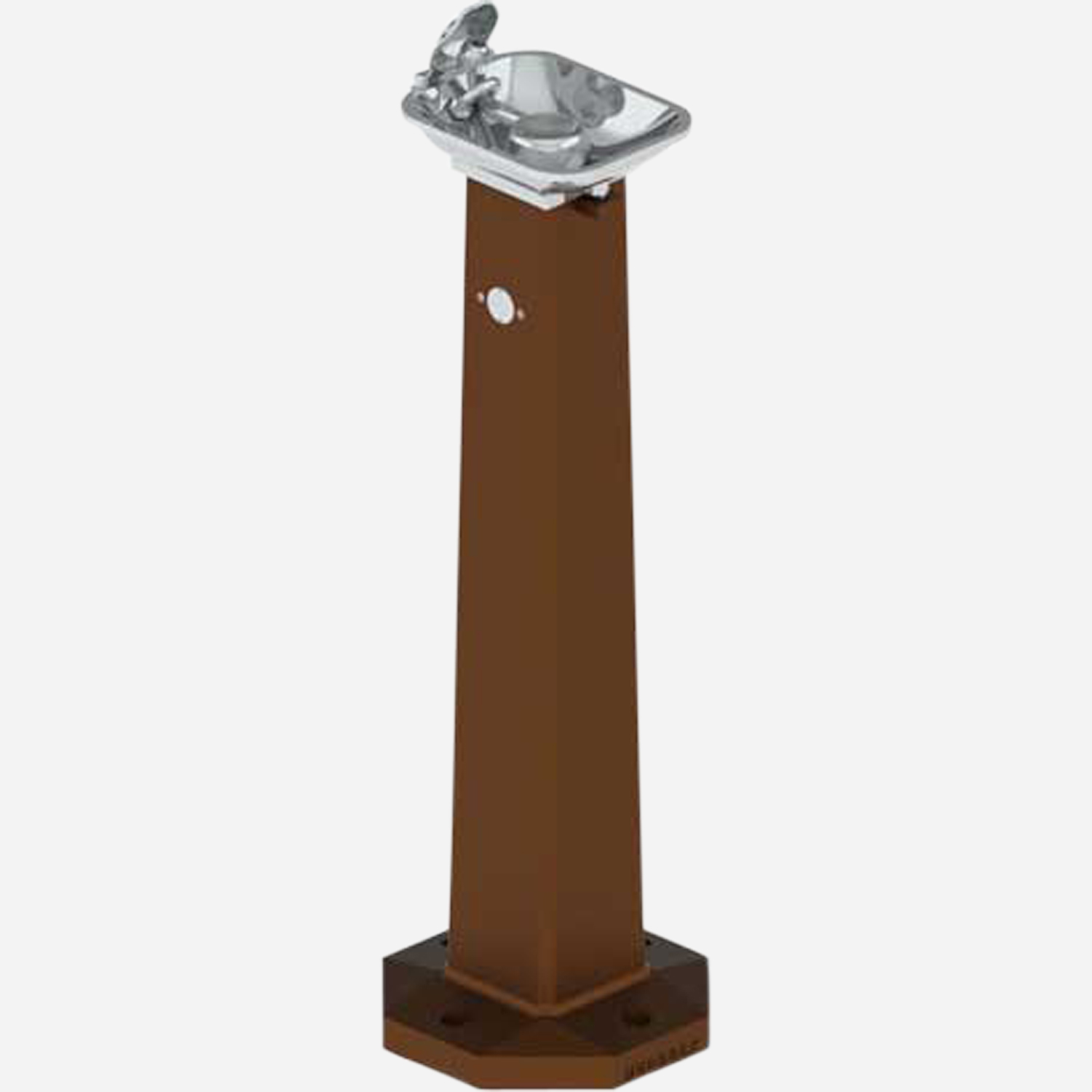

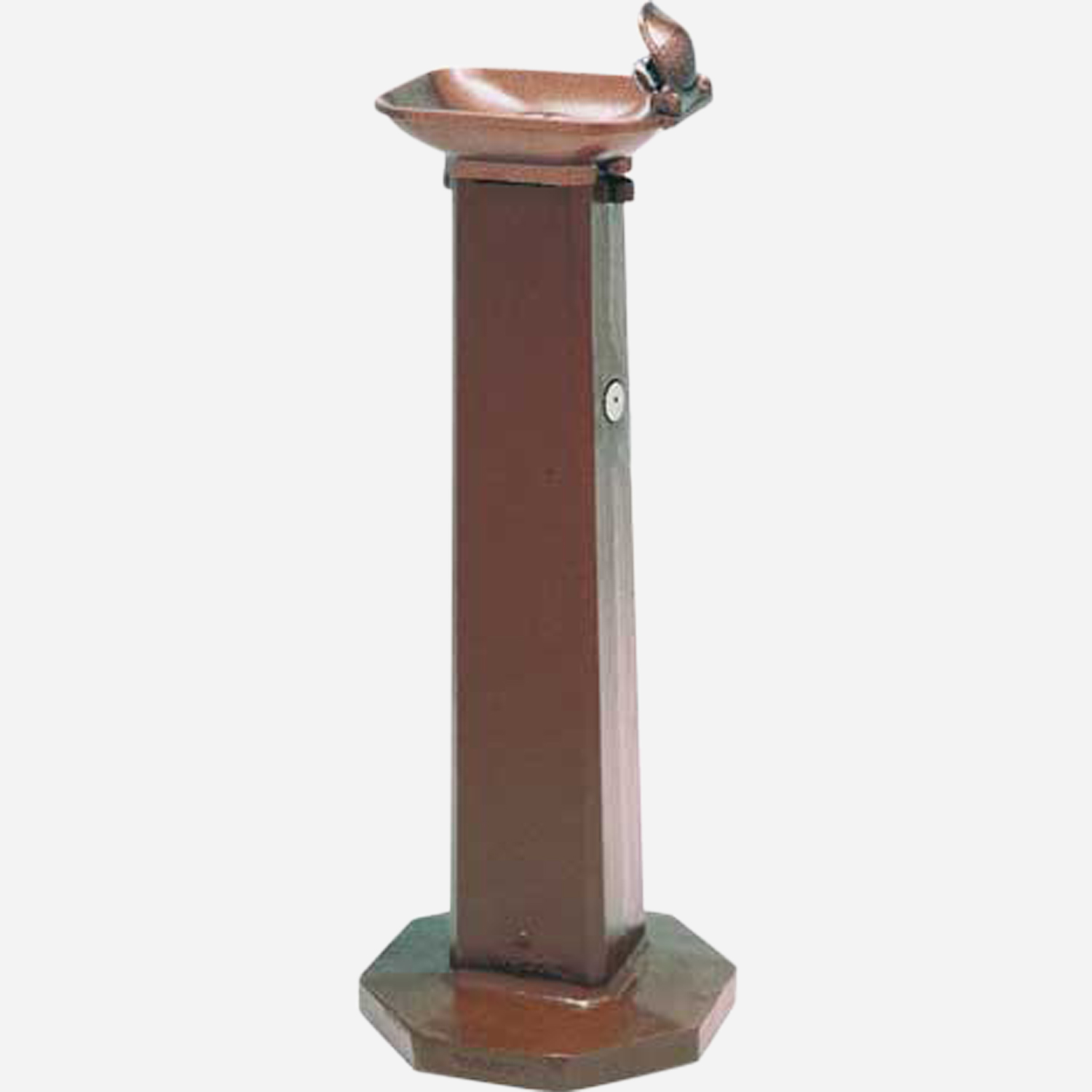

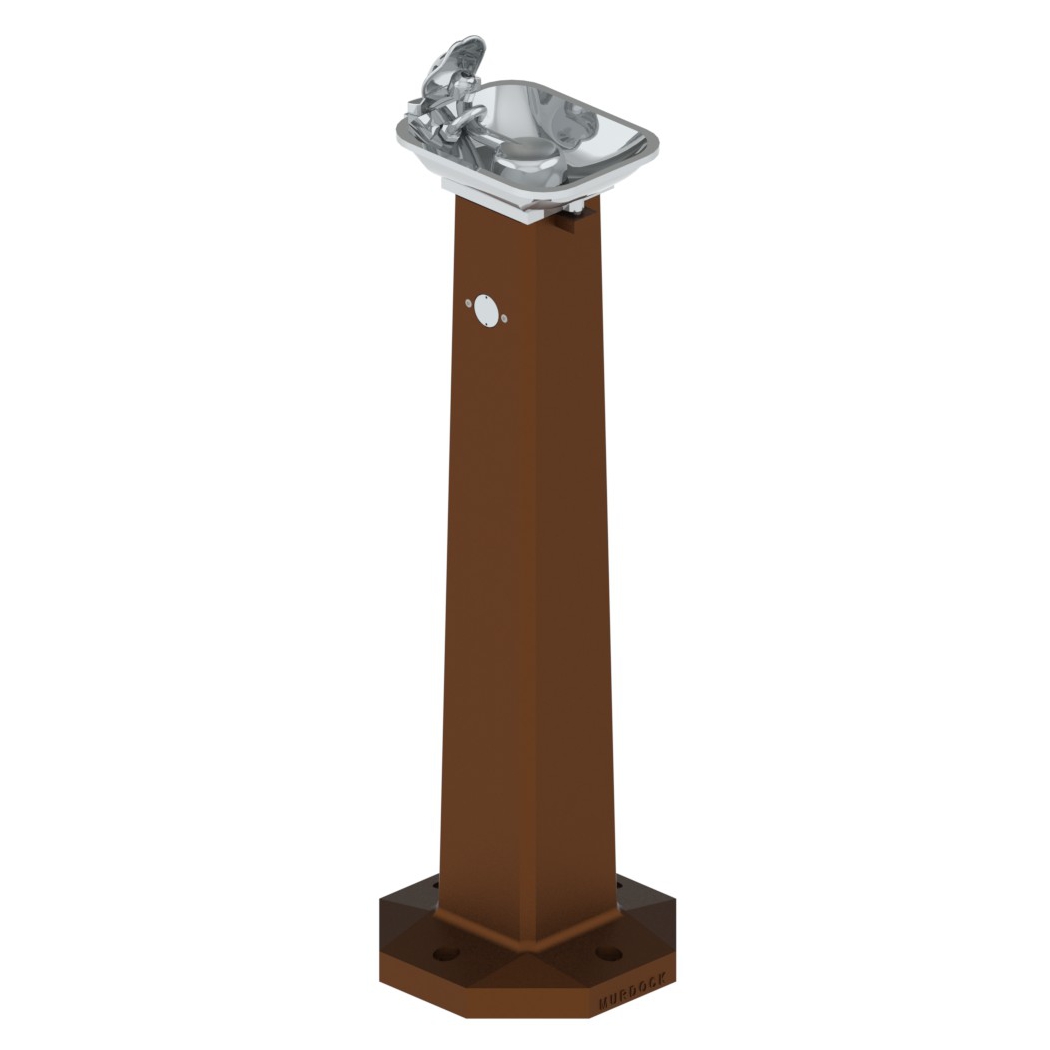

Model M-23C
Bowl-on-Pedestal Select Style Drinking Fountain
This single drinking fountain unit includes a pedestal-mounted bowl and bubbler operated by push button control. Heavy-duty construction ensures durability, and all field-serviceable components are easily accessible. The standard model is seasonal, not freeze-resistant.Solid brass castings for the bowl and mouth guard are Penny Vein powdercoated, and the base is finished in Chestnut Brown.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Bowl-on-Pedestal Select Style Drinking Fountain | 0 | 725 KB | ||
| | Select Series with Bowl on Pedestal | 0 | 144 KB | ||
| | -FRU1, -FRU2, -FRU3, -FRU4 Below Ground Freeze-Resistance - Document #9938-340-0M1 | 0 | 2 MB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 0 | 106 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB | ||
 | | Select Style with Bowl on Pedestal (shown with chrome bowls) | 0 | 95 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB | ||
| | How to Service an Outdoor Drinking Fountain | 0 | 133 KB |
Specifications
| Mounting | Pedestal |
| Material | Cast Iron Pedestal, Cast Brass Bowl |
| Pet-Friendly | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Push Button |
| Style | Select Style |
| Material Detail | Brown, Black, Green |
| Legacy Model | M-54 |
| Compliances | cUPC, Lead-Free Federal Law 111-380 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -CH30 | Option: Child 30" Bubbler Height Drinking Fountain | ||
 | -FRU1 | Option: Below Ground, Freeze Resistant Valve, Single Station | ||
 | -FRU2 | Option: Below Ground, Freeze Resistant Valve, Two Station | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -JF1 | Option: Jug Filler with Lever Handle | ||
 | -JF2 | Option: Recessed Jug Filler with Push Button | ||
 | -PF (Traditional) | Traditional Style Pet Fountain with Push Button | ||
 | -PFS | Option: Traditional Style Pet Fountain with Spigot |
