Outdoor Pedestal Bottle Filler with Barrier-Free Drinking Fountain
GYM74 Series is an outdoor, pedestal mounted water refill station with a barrier-free arm drinking fountain. Bottle filler shall be activated by a 9 volt sensor or a push button as standard. Unit shall contain a 100 mesh inlet strainer, lead and cyst filter, 6-AA battery pack and laminar flow spout.
A pet fountain version is available with a -PF suffix option.
Available and Ready to Ship! Fill out this form to start an order or get more information.Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Barrier-Free Round Pedestal Bottle Filler with One Arm Drink Fountain Arm (GYM74 Series) and Bi-Level Arm Drink Fountains (GYQ84 Series) | 0 | 2 MB | ||
| | Pedestal Bottle Filler with Barrier-Free Drink Fountain [GYM74 | All-Stainless Steel; GYM75 | Textured Fairway Green; GYM76 | Textured Fire House Red; GYM77 | Textured Alpine Blue)] | 0 | 173 KB | ||
| | Installing Freeze-Resistant, Non-Pollutable Valve Option [Options -NP1 (1-station); -NP2 (2-station); -NP3 (3-station); -NP4 (4-station); Includes Repair Parts | 0 | 2 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 0 | 106 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Wash-N-Go!® Hand Washing Station Flyer (pdf) | 0 | 520 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB | ||
| | Outdoor Hand Washing, Drinking Fountains, and Shower Stations for National Parks | 0 | 1 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
 | | Barrier-Free Round Pedestal Stainless Steel Drinking Fountain with Bottle Filler and Pet Fountain | 0 | 128 KB | ||
| | Barrier-Free Round Pedestal Stainless Steel Drinking Fountain with Bottle Filler | 0 | 3 MB | ||
 | | How to Service an Outdoor Drinking Fountain | 0 | 133 KB | ||
| | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Pedestal |
| Material | Stainless Steel |
| Pet-Friendly | Available Option |
| Sanitary Product | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Push Button, Bottle filler - sensor |
| Material Detail | Green, All-Stainless Steel, Blue, Red |
| Variations | GYM74: Satin Stainless Steel, GYM75: Green Powder Coated Stainless Steel, GYM76: Red Powder Coated Stainless Steel, GYM77: Blue Powder Coated Stainless Steel |
| Legacy Model | GYM55, GYM54, GYM56, GYM57 |
| Accessibility | ADA Compliant |
| Usage | Outdoor |
| Compliances | cUPC, Lead-Free Federal Law 111-380, NSF/ANSI/CAN 61 |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -CH30 | Option: Child 30" Bubbler Height Drinking Fountain | ||
 | -FRU1 | Option: Below Ground, Freeze Resistant Valve, Single Station | ||
 | -FRU2 | Option: Below Ground, Freeze Resistant Valve, Two Station | ||
 | -FRU3 | Option: Below Ground, Freeze Resistant Valve, Three Station | ||
 | -FRU4 | Option: Below Ground, Freeze-Resistant Valve, Four-Station | ||
 | -FS | Option: Foot Spray, Outdoor Pedestal Drinking Fountain/Hand Wash/Shower | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -HB3 | Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Steel Box | ||
 | -IAP (Drinking Fountain) | Option: In-Ground Anchor Plate for Drinking Fountain | ||
 | -IGM | Option: In-ground 14" mounting | ||
 | -JF1 | Option: Jug Filler with Lever Handle | ||
 | -JF2 | Option: Recessed Jug Filler with Push Button | ||
 | -JFFR1 | Option: Freeze-Resistant Recessed Jug Filler with Push Button | ||
 | -MO | Bottle Filler Activated by Push Button Only | ||
 | -NP2 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Two Station | ||
 | -NP3 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Three Station | ||
 | -NP4 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Four Station | ||
 | -PF | Option: Contemporary Round Pet Fountain | ||
 | LOGO | Option: Customize Graphics | ||
 | LSR | Option: Leaf and Debris Strainer for Round Outdoor Drinking Fountains | ||
 | SLPT | Option: 10° Bottle Filler Sloped Top |
Models
Typical models are shown below

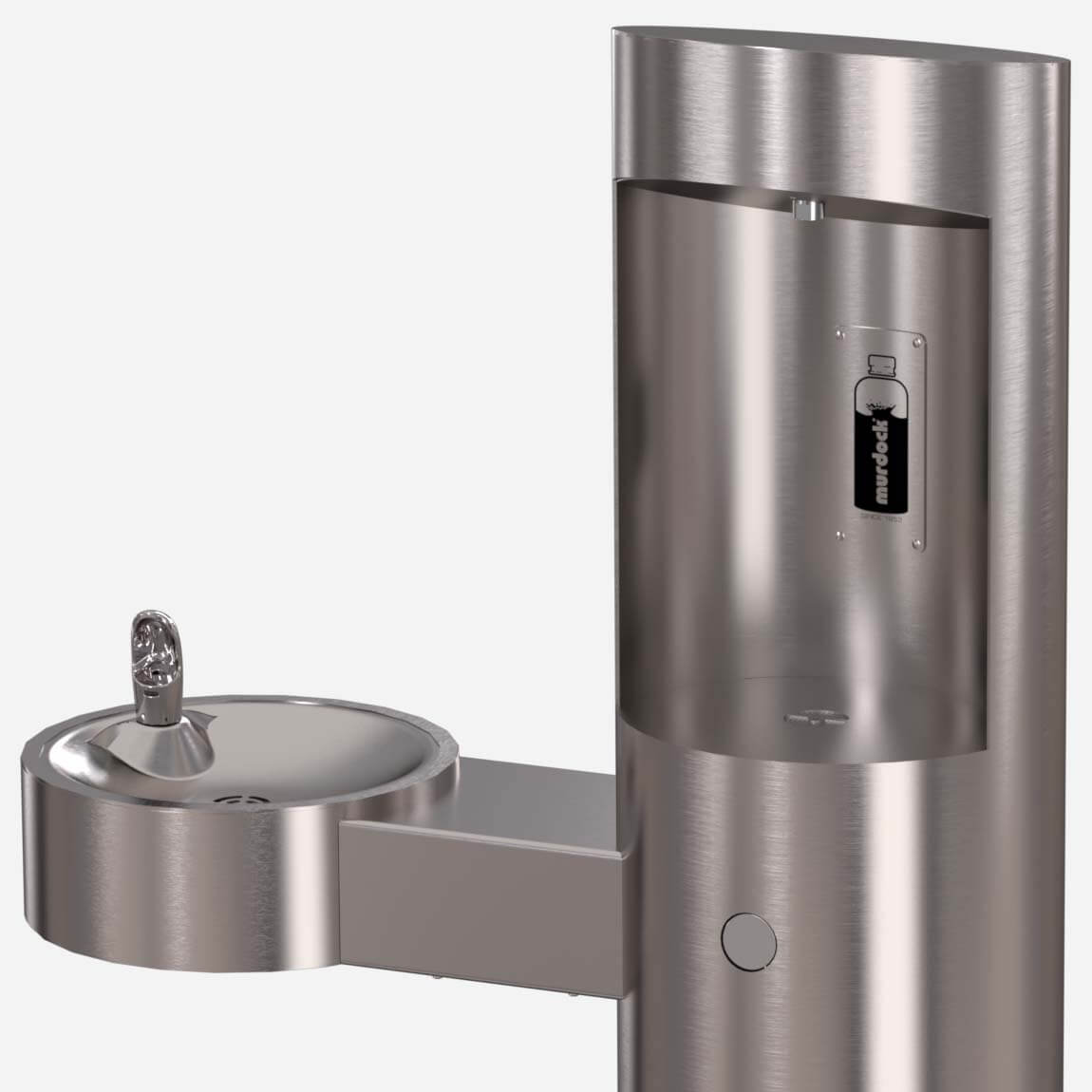

GYM74 All-Stainless Steel

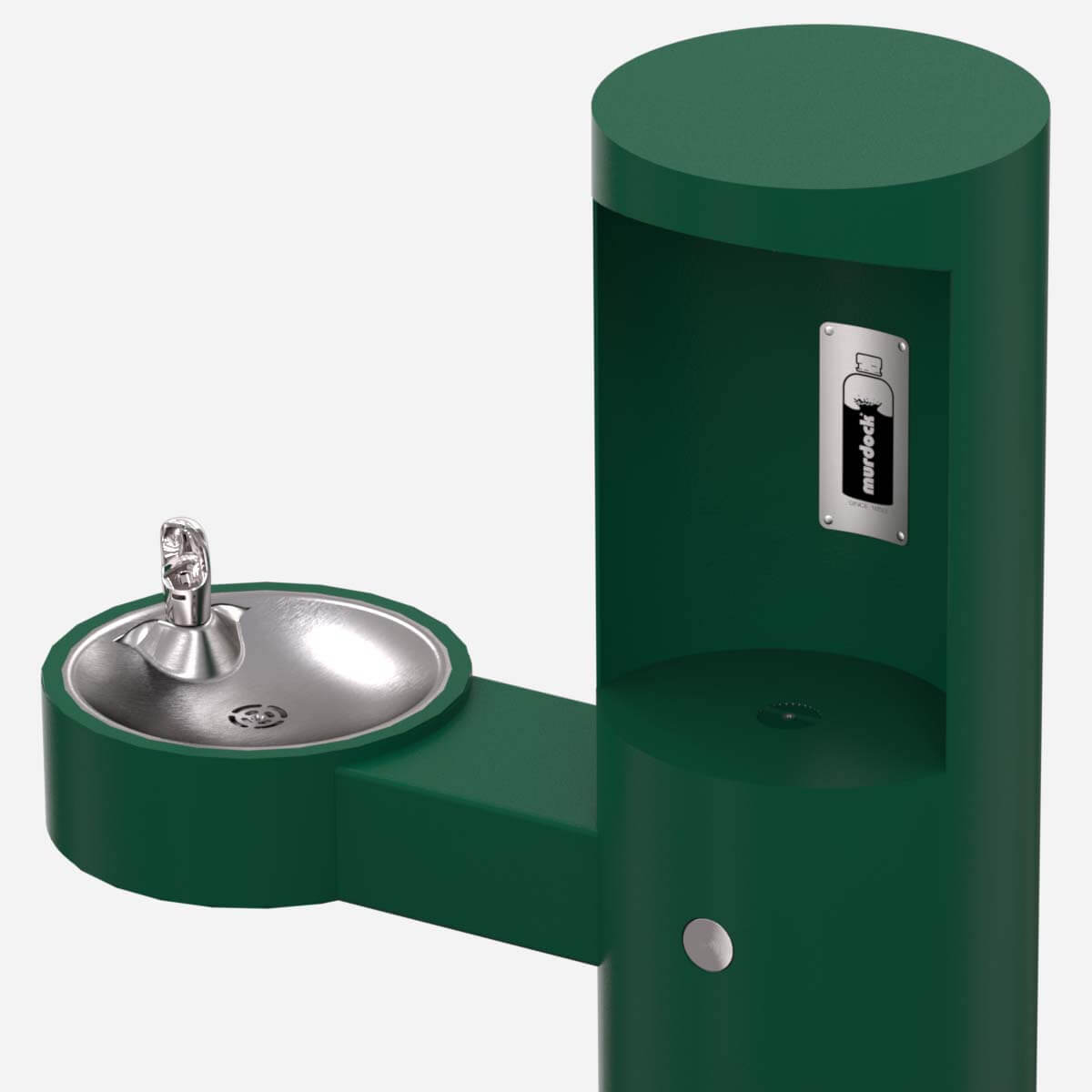

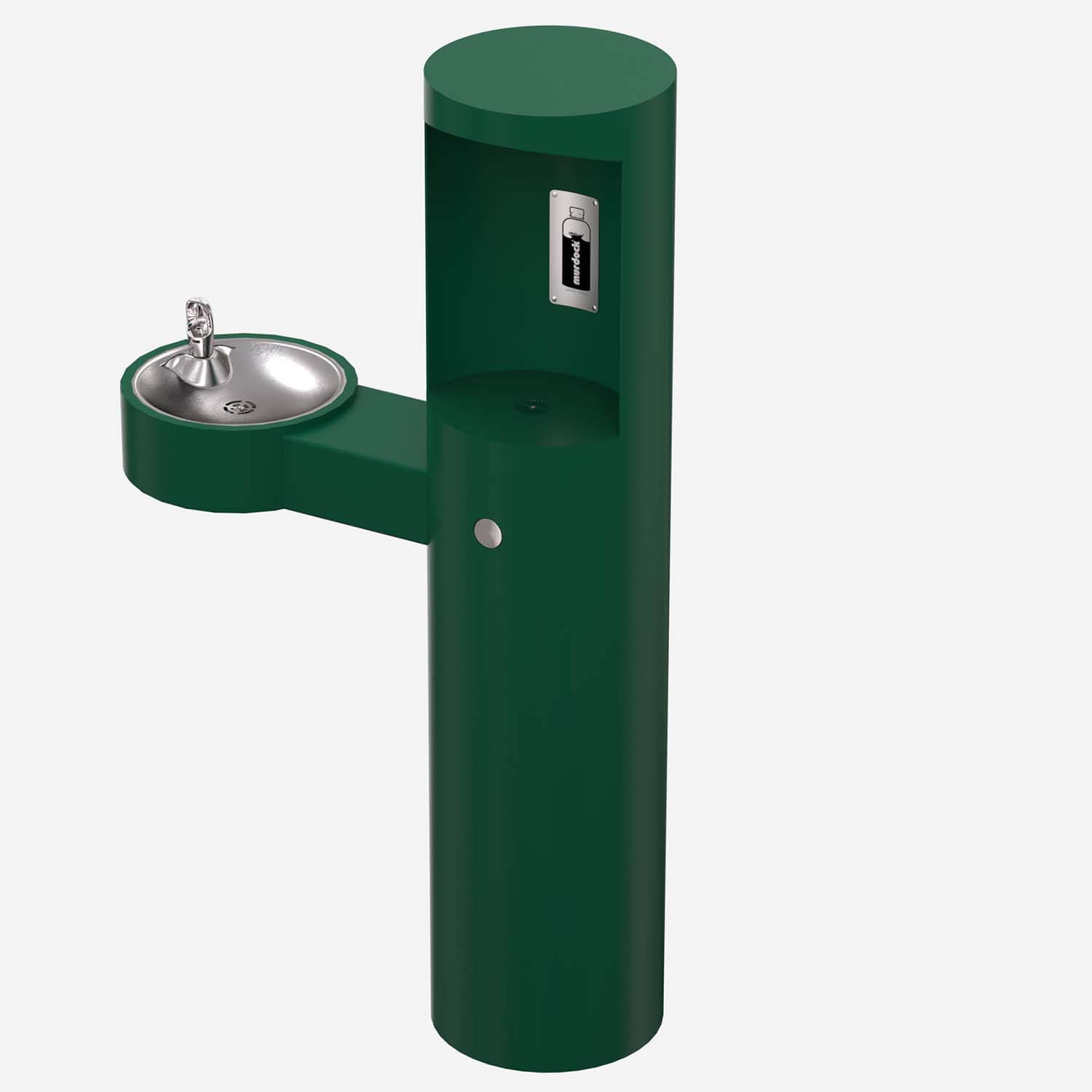

GYM75 Textured Fairway Green
GYM76 Textured Firehouse Red
GYM77 Textured Alpine Blue
Option -SLTP 10° Sloped Bottle Filler Top (Shown in Stainless Steel)

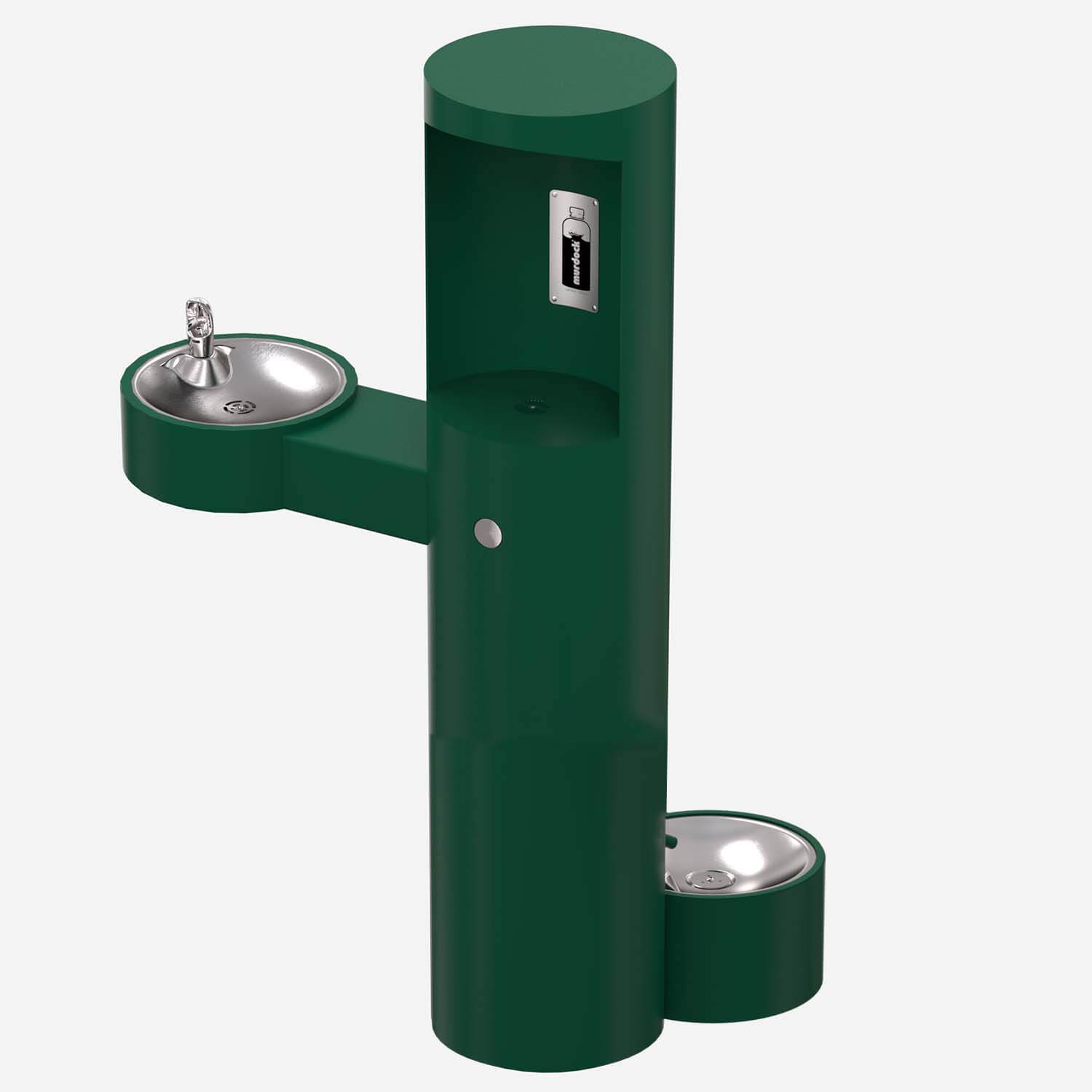

Option -PF Pet Fountain (Shown in Stainless Steel)
Popular Options/Accessories include:
-AP | Auto-Purge Sensor Function Controller -CH30 | Child height, 30" bubbler height -FRU2, -FRU3, -FRU4 | Freeze-Resistance -NP2, -NP3, -NP4 | Non-Polutable Freeze-Resistance -FS | Foot shower -HB1, -HB3 | Hose bibbs -JF1,-JF2, -JFFR1 | Jug filler -LSR | Leaf and Debris Strainer for Round Outdoor Drinking Fountains -MO | Bottle filler operated by pushbutton only (Standard with freeze-resistant valves) -PF | Pet Fountain -SLPT | 10º Bottle Filler Sloped Top -WF3000 | 3000-Gallon PFAS Water Filter1 NSF/ANSI, PFAS,Lead, Bacteria, Chlorine, Microplastics
Other options may be available. See Options List and/or Submittal
Model GYM54, GYM55, GYM56, GYM57 are legacy models
