Round Pedestal Push Button Pet Fountain Receptor

In StockThis product is available for quick shipment nationwide.
Find A Representative
Model M-PM34 Series
cUPC
Lead-Free Federal Law 111-380
Installation Instructions
Install Guide M-PM34 Pet Fountain (pd)
View
Submittal
Submittal M-PM34 Pet Fountain (pdf)
View
Model M-PM34 Series

Round Pedestal Push Button Pet Fountain Receptor

The Pet fountain shall be Murdock model M-PM34 Series, single-station pet fountain. Pet Fountain Pushbutton shall be self-closing requiring less than 5 pounds (2.27 kg) of force to activate the internally mounted valve. The spout water outlet shall be stainless steel tube and operate on a water pressure range of 20-105 psig.

Unit shall be constructed of 14 gauge type 304 stainless steel polished to a satin finish with 18 gauge pet fountain bowl. The bottom plate shall be 3/16" thick and include three mounting holes with two additional mounting holes for the pet fountain. 1/2" expansion anchor bolts shall be furnished. All other exposed fasteners shall be vandal-resistant stainless steel screws.

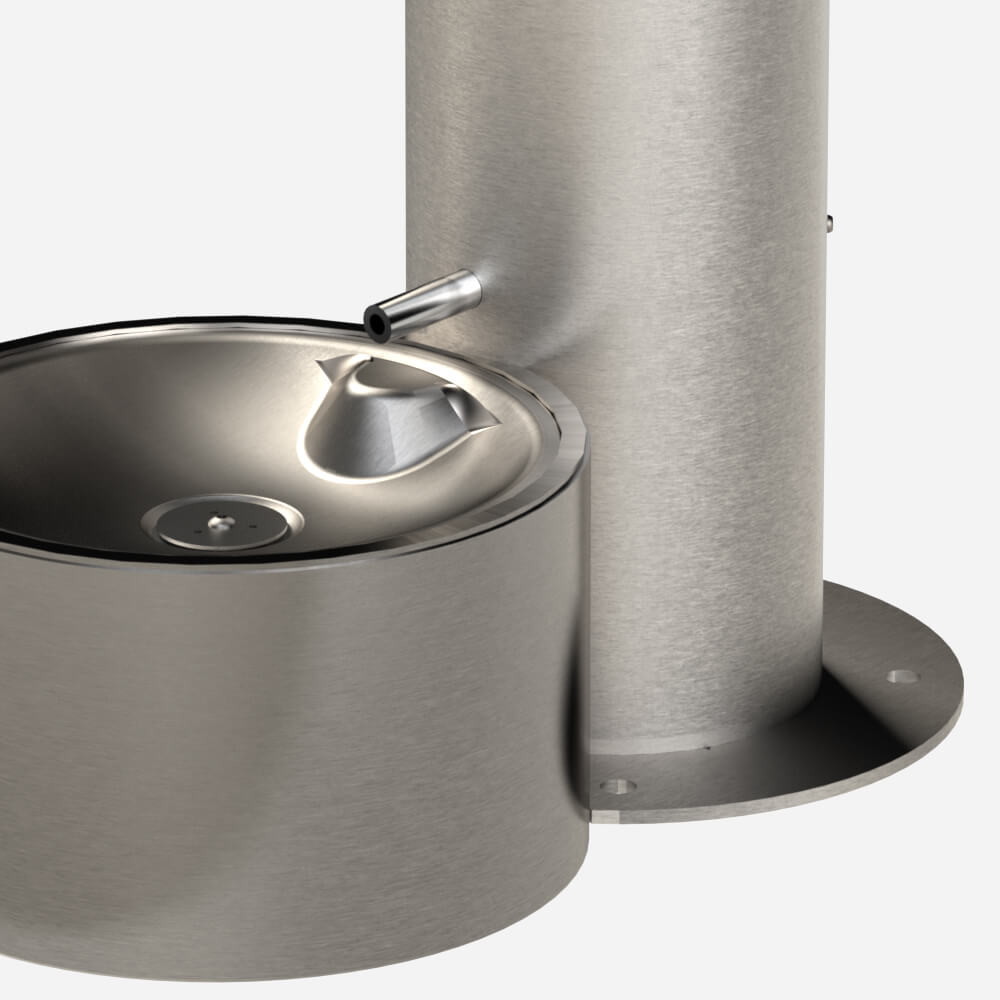

Note: New improved design as of November 2022 includes pet fountain bowl immediately next to pedestal and a spout from the pedestal instead of a bubbler

STANDARD FEATURES

  • 100 mesh inlet strainer
  • Pushbutton requiring less than 5 pounds (2.27 kg) for activation
  • Vandal resistant stainless steel Access Panel
  • 18 gauge, 304 stainless steel basin
  • Heavy duty, type 304 stainless steel housing
  • Available polished to a #4 satin finish
Shipping IconAvailable and Ready to Ship! Fill out this form to start an order or get more information.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Install Guide M-PM34 Pet Fountain (pd)
Pedestal Pet Fountain [M-PM34 | All-Stainless Steel; M-PM35 | Green; M-PM36 | Red; M-PM37 | Blue]0346 KB
PDF icon
Submittals
PDF icon
Submittal M-PM34 Pet Fountain (pdf)
Pedestal Pet Fountain [M-PM34 | All-Stainless Steel; M-PM35 | Green; M-PM36 | Red; M-PM37 | Blue]0153 KB
RFA icon
Revit/BIM/CAD Drawings
RFA icon
M-PM34 Series Pet Fountain (rfa)
Pedestal Pet Fountain [M-PM34 | All-Stainless Steel; M-PM35 | Green; M-PM36 | Red; M-PM37 | Blue]0516 KB
RFA icon
Revit/BIM/CAD Drawings
RFA icon
M-PM34 Series Pet Fountain (dwg/zip)
Pedestal Pet Fountain [M-PM34 | All-Stainless Steel; M-PM35 | Green; M-PM36 | Red; M-PM37 | Blue]0268 KB
PDF icon
Installation Instructions
PDF icon
Install Guide Freeze-Resistant Pedestal Drinking Fountains (pdf)
-FRU1, -FRU2, -FRU3, -FRU4 Below Ground Freeze-Resistance - Document #9938-340-0M102 MB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 224713, Drinking Fountains (doc)
Murdock Mfg - Drinking Fountains0164 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 224713, Drinking Fountains (pdf)
Murdock Mfg - Drinking Fountains0169 KB
PDF icon
Brochures/Flyers
PDF icon
Murdock Outdoor Drinking Fountains, Bottle Fillers Brochure (pdf)
Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers06 MB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MaterialStainless Steel
Pet-FriendlyYes
ActivationPush Button
Material DetailGreen, Red, Blue, All-Stainless Steel
VariationsM-PM34: Stainless Steel, M-PM35: Green Powder Coated Stainless Steel, M-PM36: Red Powder Coated Stainless Steel, M-PM37: Blue Powder Coated Stainless Steel
MountingPedestal
UsageOutdoor
CompliancescUPC, Lead-Free Federal Law 111-380

Options

Miscellaneous

Model
Description
Downloads
Option: Below Ground, Freeze Resistant Valve, Single Station
-FRU1
Option: Below Ground, Freeze Resistant Valve, Single Station
Option: In-Ground Anchor Plate for Drinking Fountain
-IAP (Drinking Fountain)
Option: In-Ground Anchor Plate for Drinking Fountain
Option: Customize Graphics
LOGO
Option: Customize Graphics

Models

Typical models are shown below

All-Stainless Steel

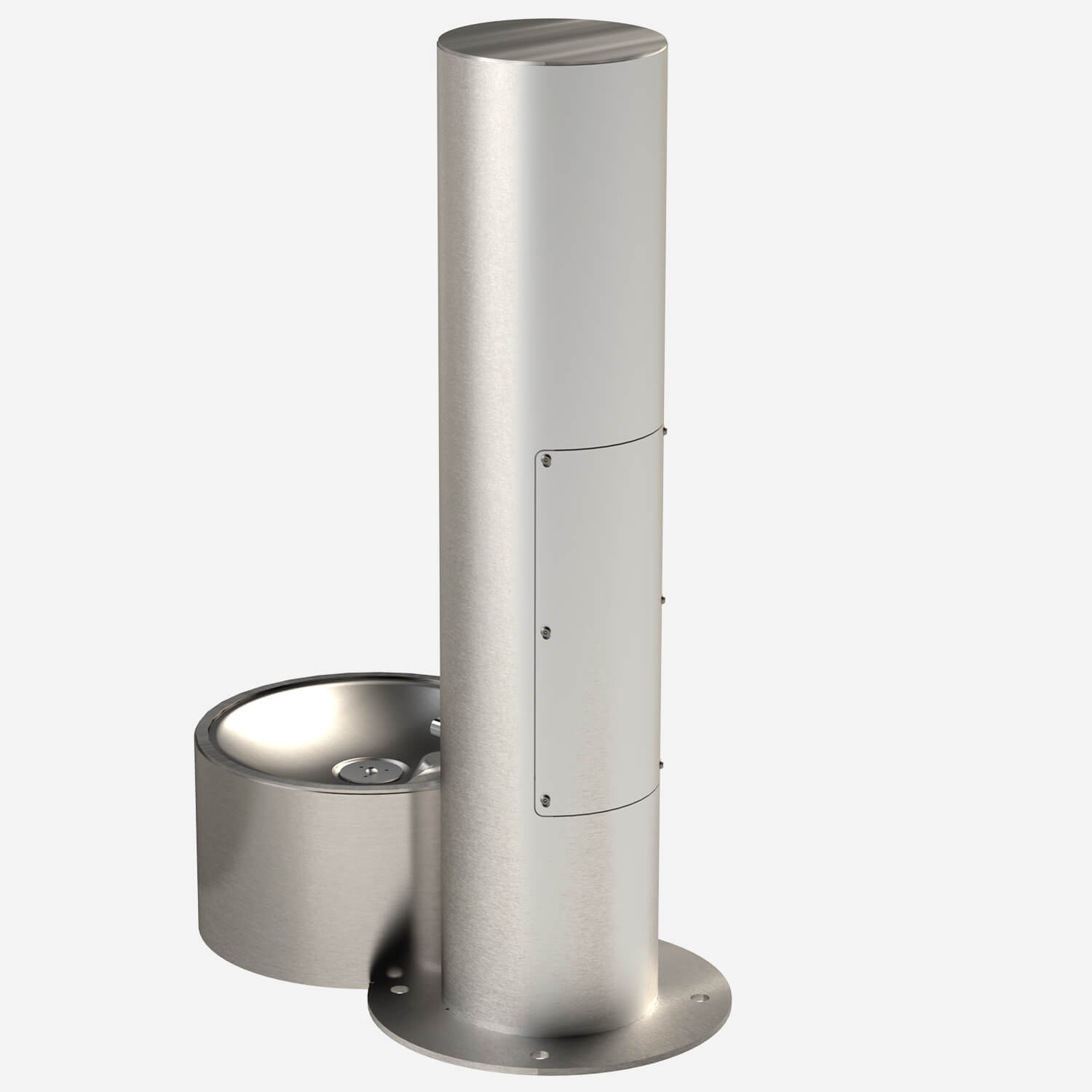

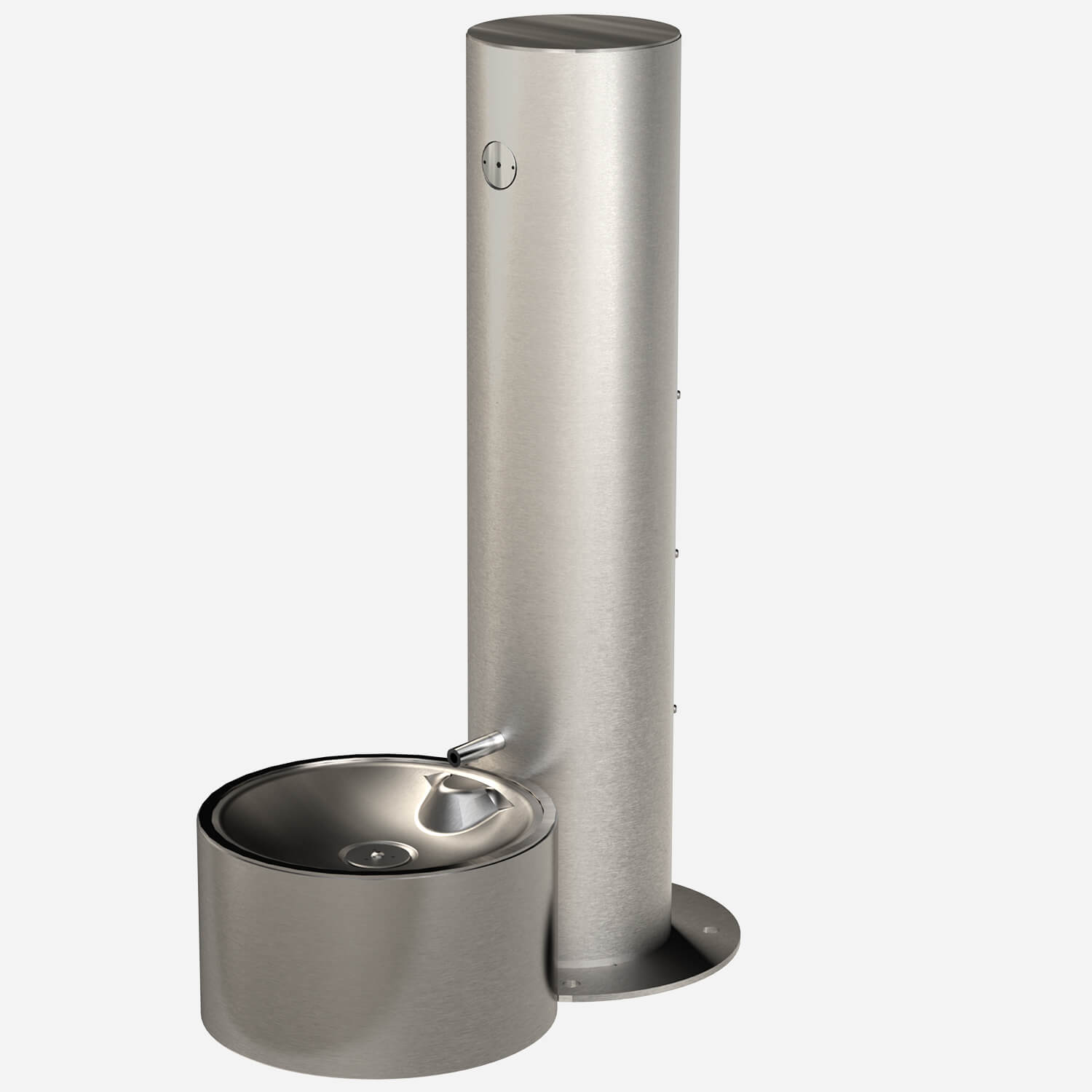

M-PM34 All-Stainless Steel

Green

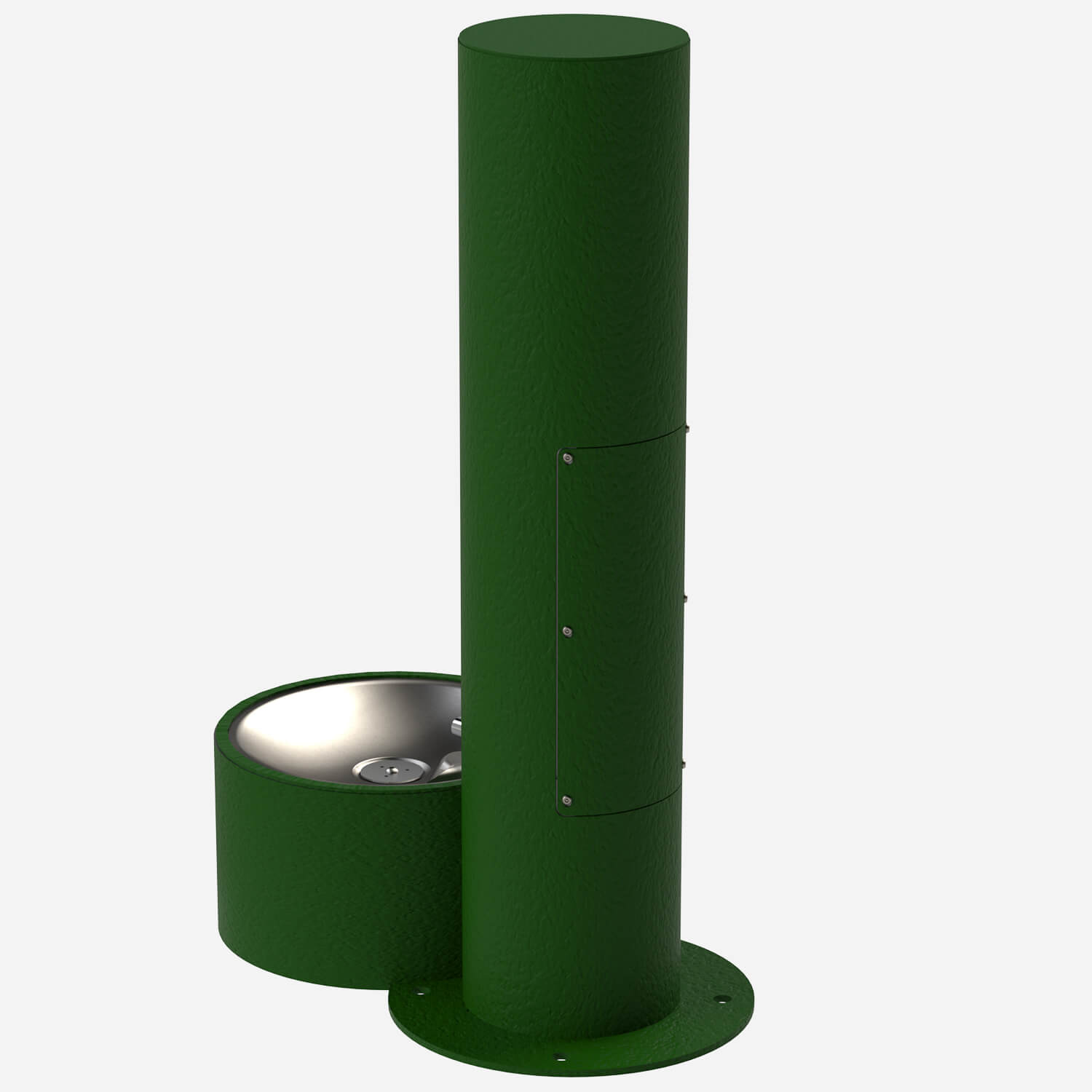

M-PM35 Textured Fairway Green powder coating IN STOCK

Red

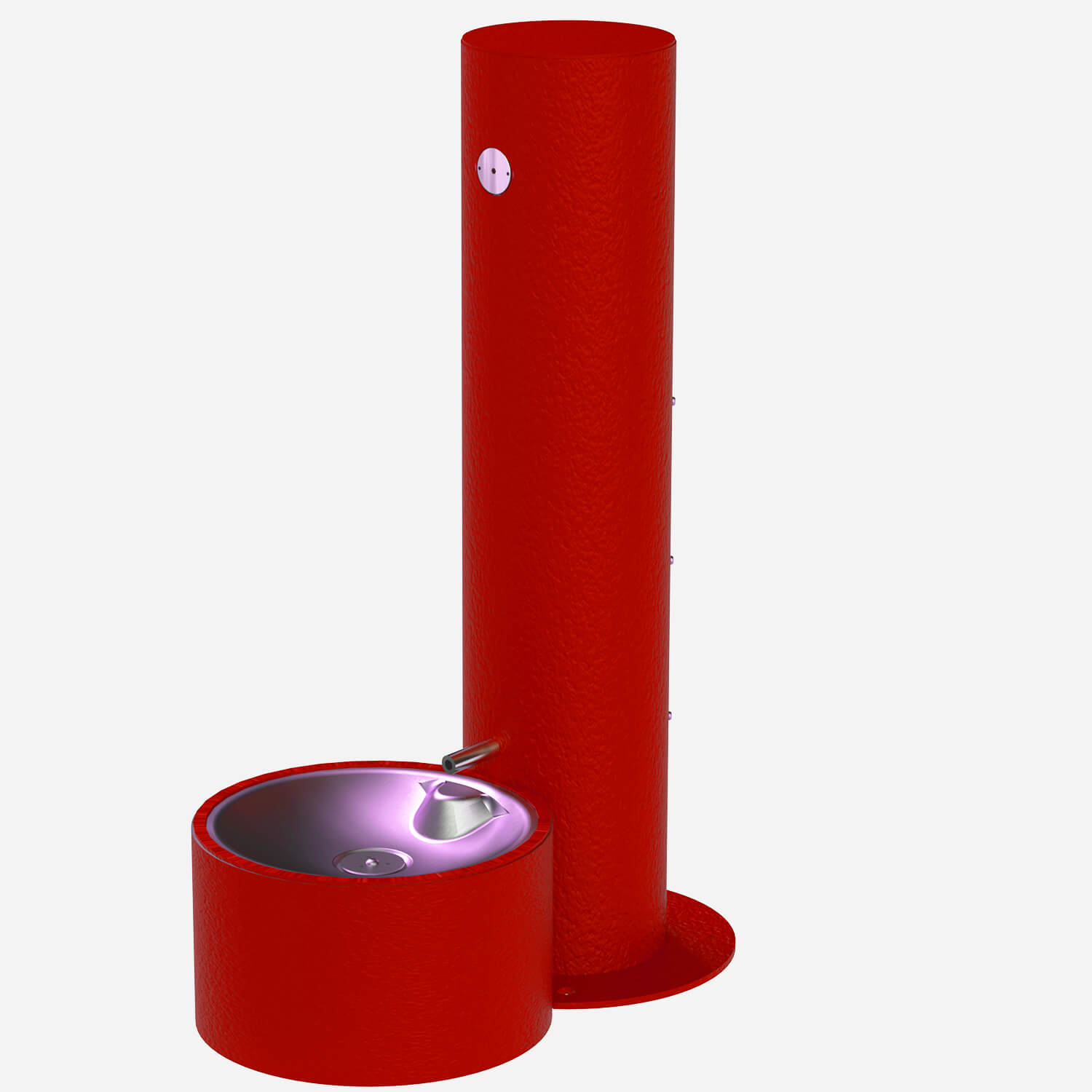

M-PM36 Textured Firehouse Red powder coating

Blue

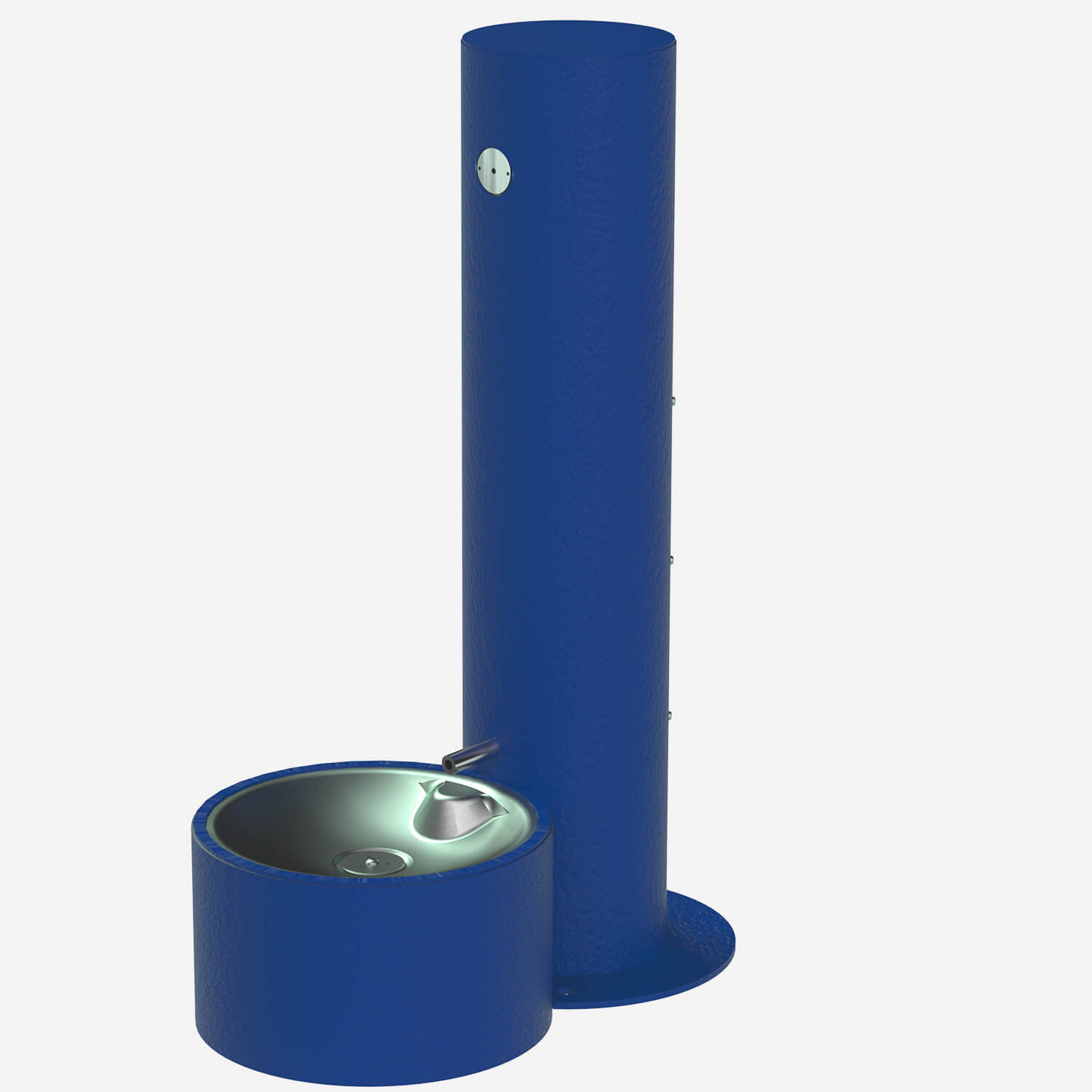

M-PM37 Textured Alpine Blue powder coating

Popular Options include:

-FRU1 |Freeze Resistant Valve -IAP | In-Ground Anchor Plate -LSR | Leaf and Debris Strainer for Round Outdoor Drinking Fountains Other options are available. See Options List and/or Submittal
