Model 1013B Series

Lavatory for Deck Mounted Valve, Enclosed Bottom

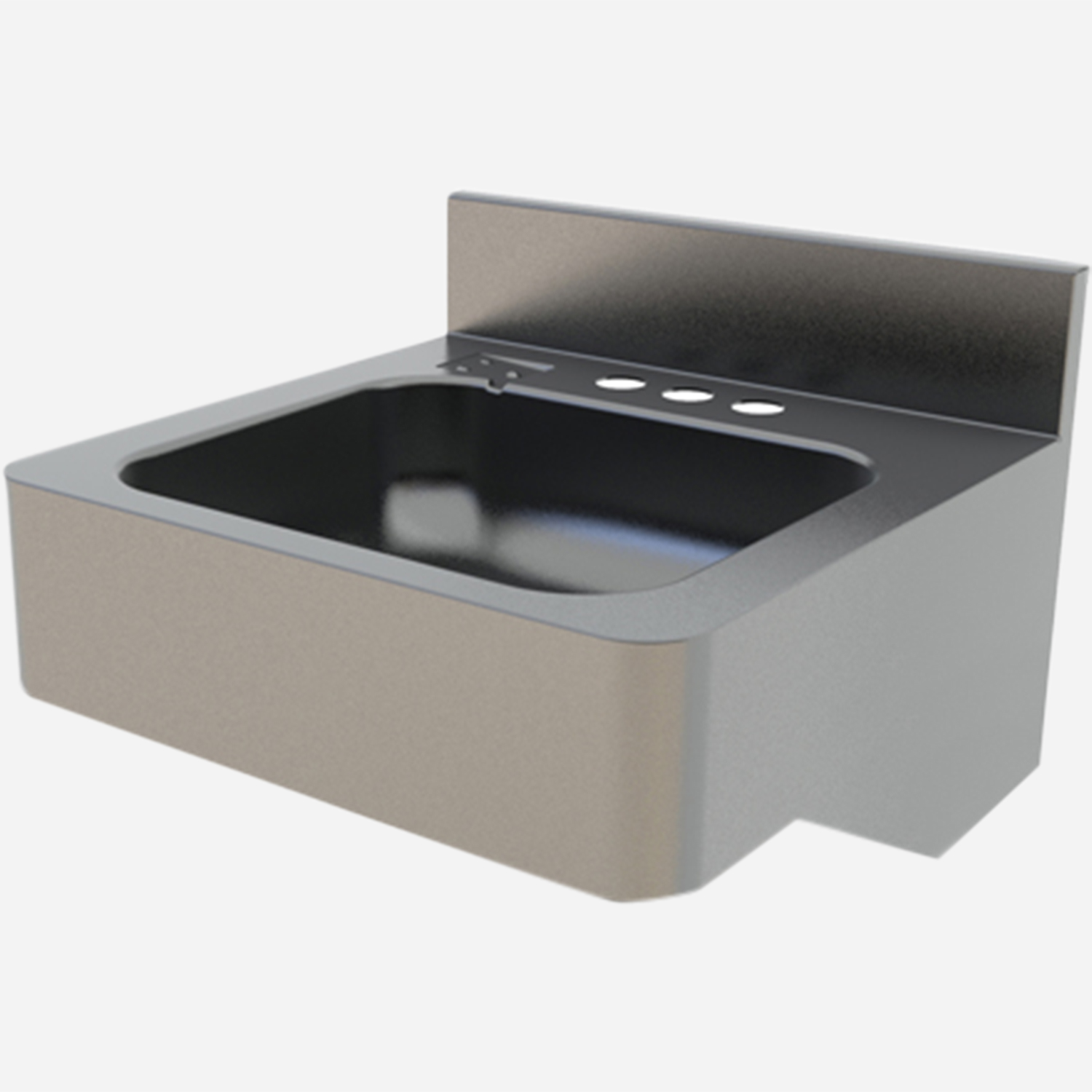

This 18 inch, vandal resistant, stainless steel security lavatory features a deck mounted valve and enclosed bottom. The rectangular bowl has a self-draining soap dish, and is designed to be serviced from an accessible plumbing chase. It mounts off-floor, and has a wall waste outlet. This unit is ADA compliant when properly installed.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Submittals
PDF icon
Submittal/Rough-In 1013B Lavatory
Lavatory for Deck Mounted Valve, Enclosed Bottom0592 KB
PDF icon
Submittals
PDF icon
Submittal/Rough-In 1013B Lavatory
Lavatory for Deck Mounted Valve, Enclosed Bottom0592 KB
RFA icon
Revit/BIM/CAD Drawings
RFA icon
1013B Lavatory (rfa)
Lavatory for Deck Mounted Valve, Enclosed Bottom0468 KB
RFA icon
Revit/BIM/CAD Drawings
RFA icon
1013B Lavatory (dwg/zip)
Lavatory for Deck Mounted Valve, Enclosed Bottom0112 KB
PDF icon
Technical Data Sheets
PDF icon
Murdock Care and Cleaning Guide
Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products095 KB
JPG icon
Images
JPG icon
1013B-9 Lavatory (hi res jpg)
With Enclosed Bottom, Pre-punched 4 Inch Center Set Holes0584 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MountingRear-Mounted (Chase)
MaterialStainless Steel
StyleSuper-Secur
Variations1013B-H1: With Single Hole for Valve, 1013B-H34: With Three Holes for Valve

Options

Miscellaneous

Model
Description
Downloads
Option: Enviro-Glaze® Powder Coating
EG
Option: Enviro-Glaze® Powder Coating
