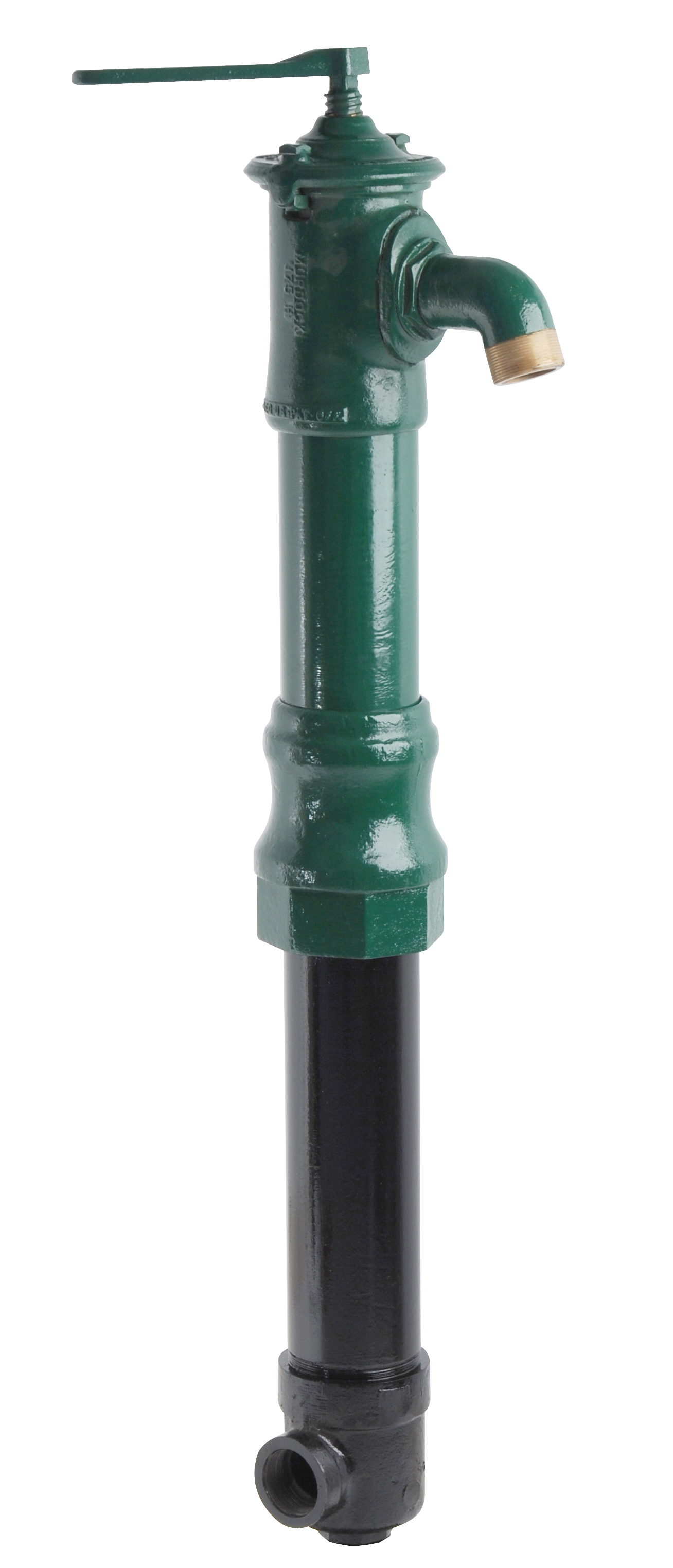

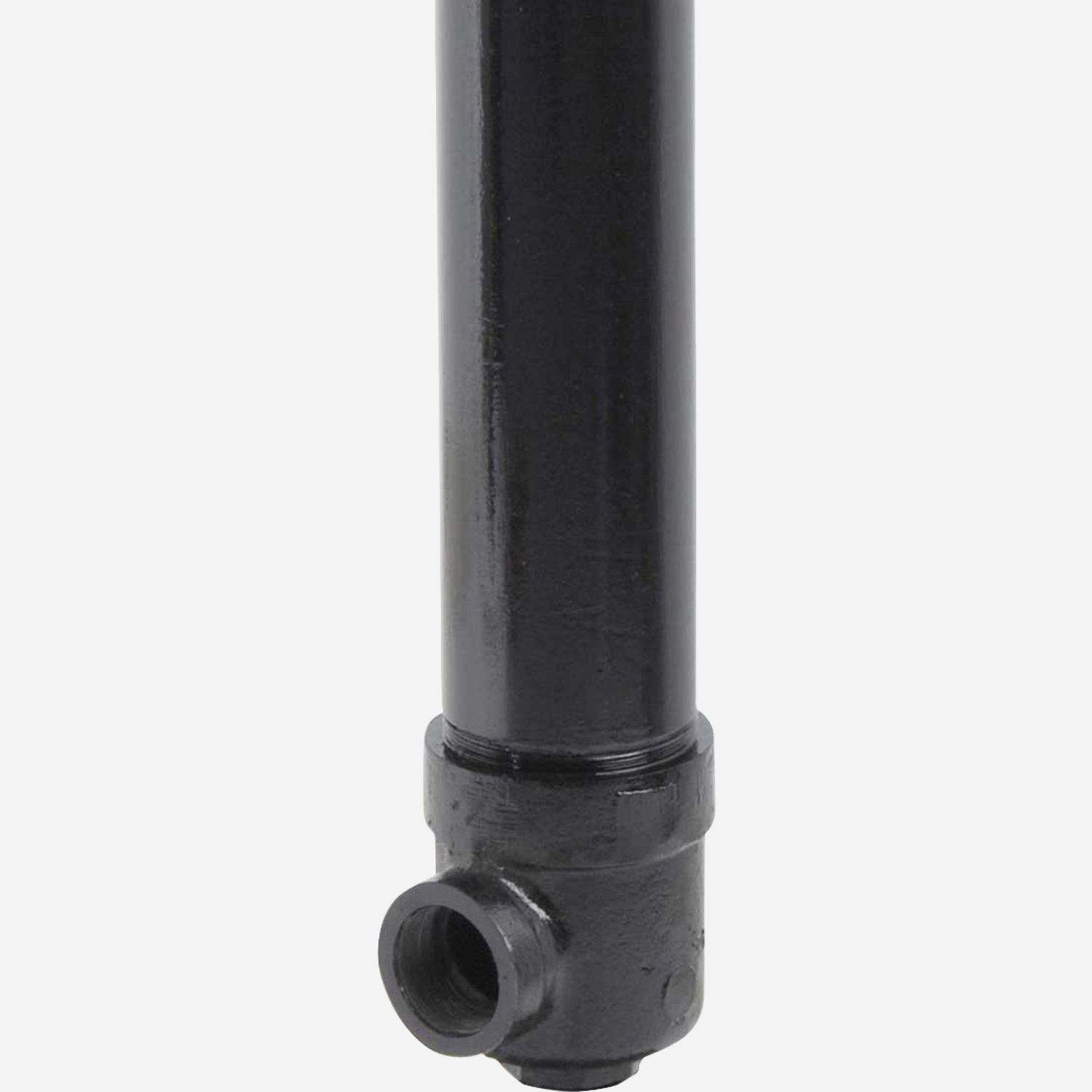

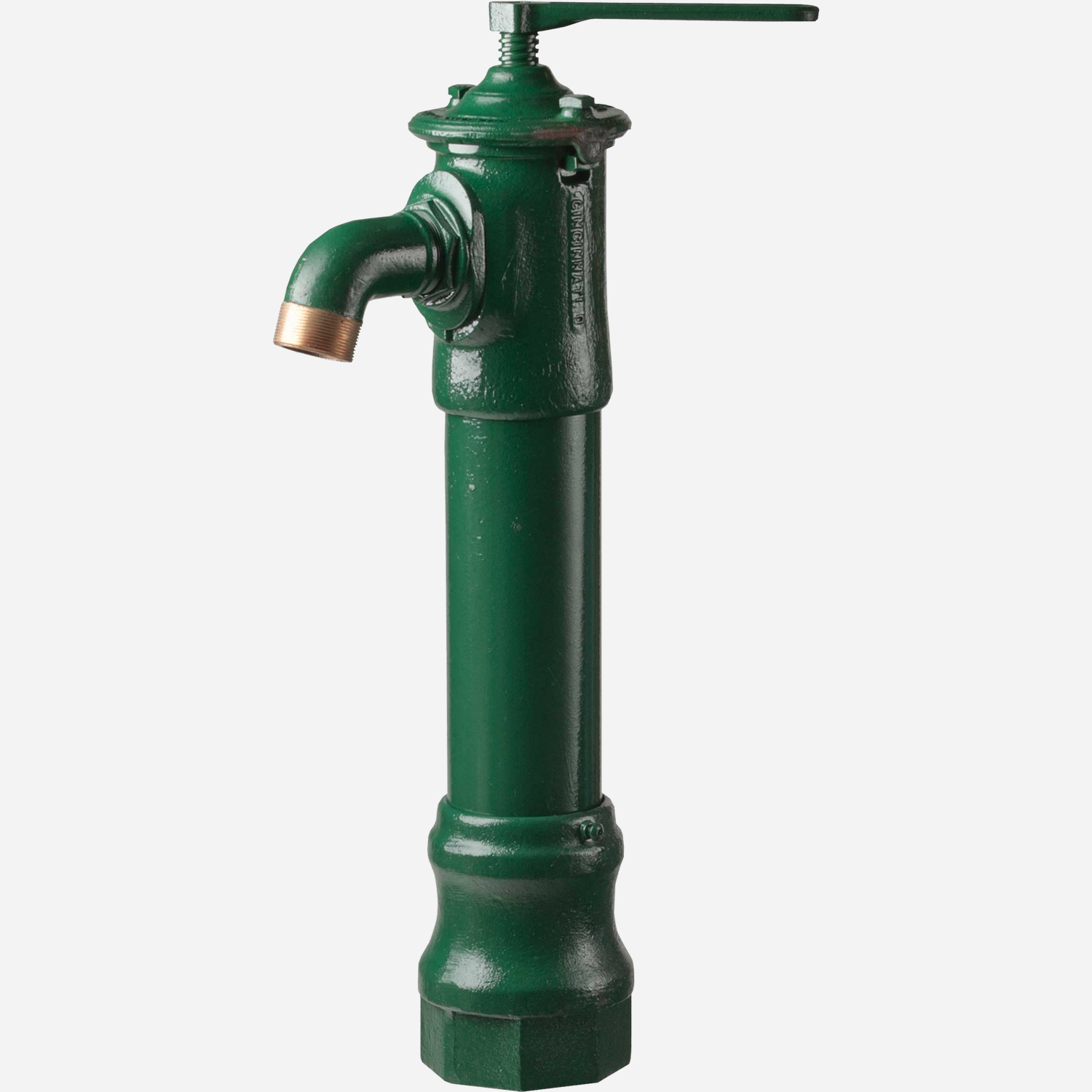

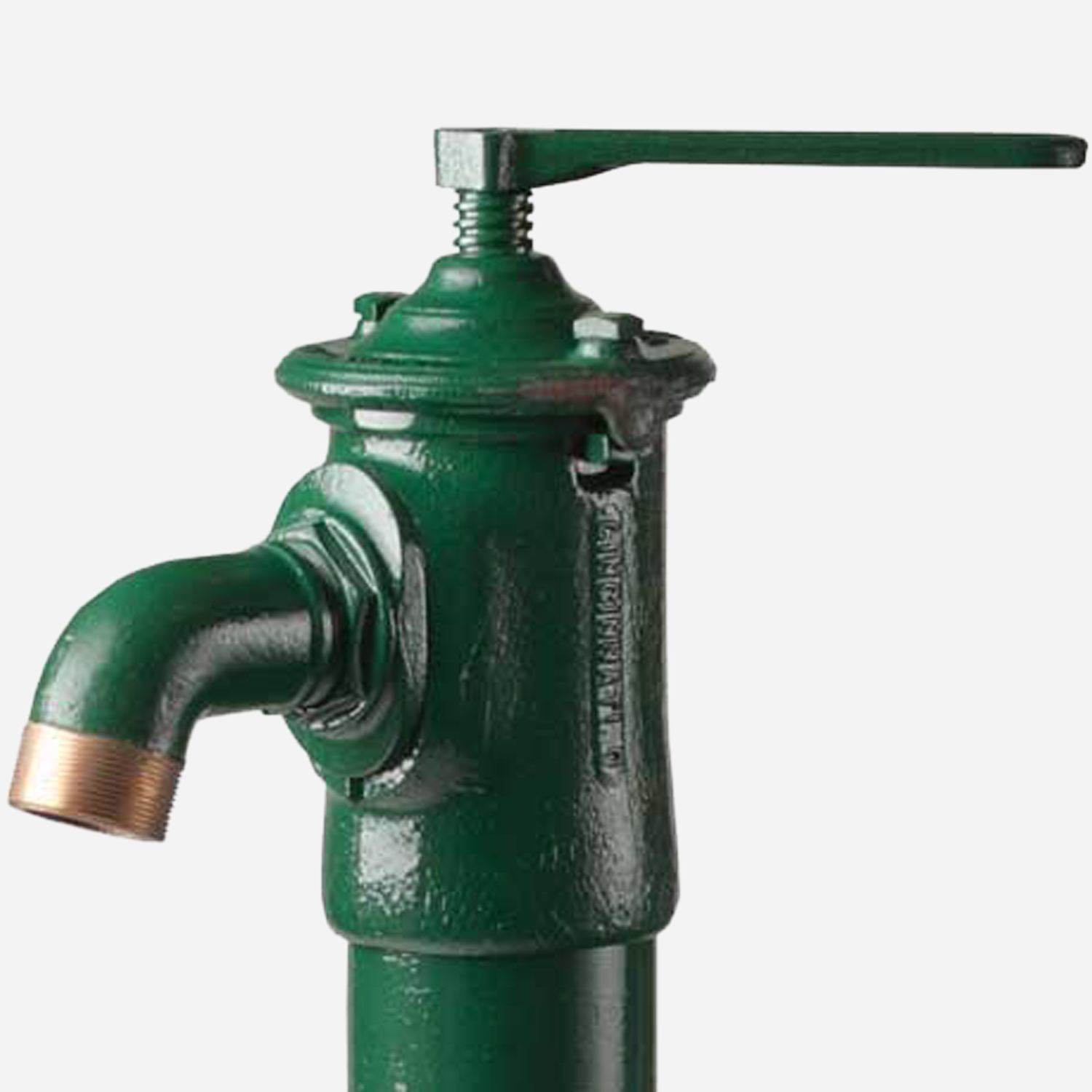

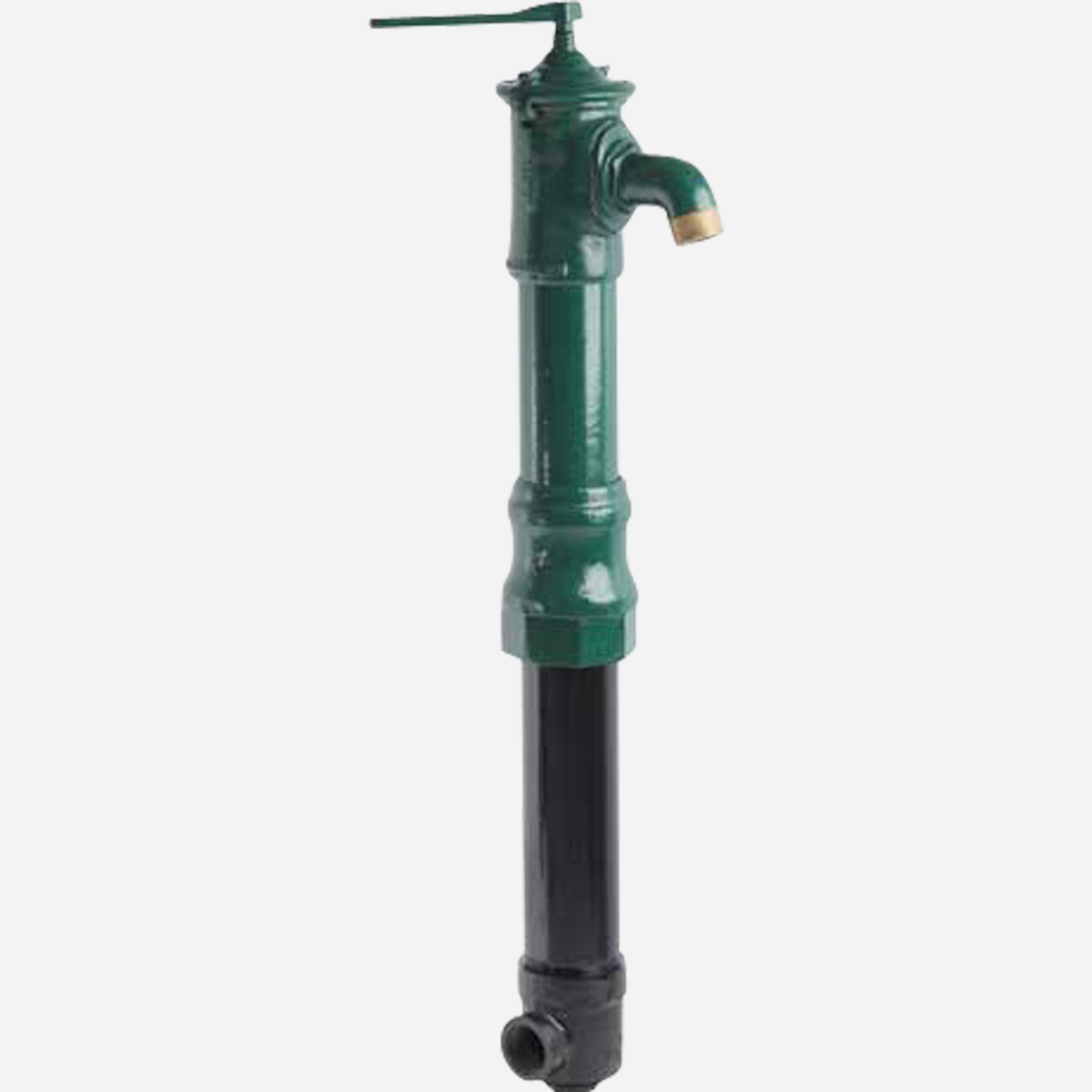

Model M-200
2" Compression Hydrant
This large volume compression hydrant with lever handle delivers year-round service outside or in unheated buildings. This compression hydrant is ideal for auxiliary fire protection, wastewater treatment plants, railroads and other areas requiring a large volume of water. It is designed for trouble-free reliability and easy maintenance. To provide freeze resistant functionality, the control valve is located below the frost line. Turning the wheel-handle raises or lowers the internal supply-line assembly, controlling the valve. Hydrant must be operated fully "on." Constructed of heavy brass, premium-quality gray iron and steel, the M-200 is designed for trouble-free reliability and easy maintenance.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 2" Compression Hydrant | 0 | 514 KB | ||
| | 2" Compression Hydrant | 0 | 211 KB | ||
| | Cast Iron Hydrants | 0 | 24 KB | ||
| | Discharge Rates for Murdock Cast Iron Hydrants | 0 | 28 KB | ||
 | | Murdock Mfg - Domestic Water Piping Specialties | 0 | 251 KB | ||
| | Murdock Mfg - Domestic Water Piping Specialties | 0 | 291 KB | ||
| | Hydrants-Wall, Ground, Yard and Roof | 0 | 5 MB | ||
 | | 2 Inch Compression Hydrant | 0 | 789 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Post-Mounted |
| Material | Cast Iron |
| Bury Depth | 2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft |
| Freeze-Resistance | Yes |
| Inlet Size | 2" |
| Activation | Lever |
| Material Detail | Green |
| Hydrant Inlet Type | Female Threaded Side Inlet |
Options
Models
Depth of Bury2 feet (610 cm), 3 feet (91.4 cm), 4 feet (121.9 cm), 5 feet (152.4 cm), 6 ft (182.9 cm)Additional OptionsWheel handle, Plain end spout, 1-1/2" NPSM hose outlet, 2-1/2" NPSM hose outlet, 2-1/2" NPT inlet
