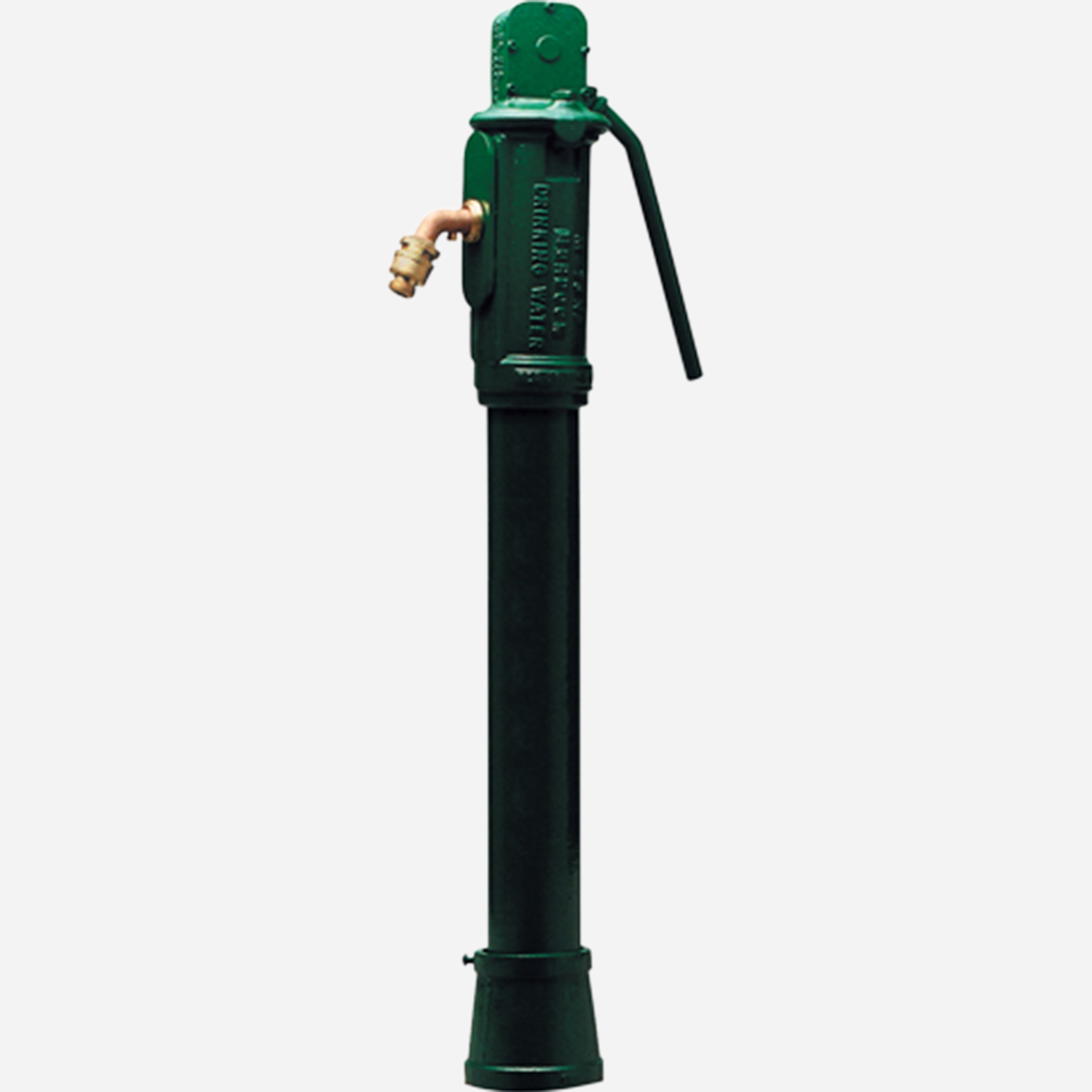

SafeWater® 3/4" ADA-Compliant Non-Pollutable Lever-Handle Cast Iron Post Hydrant

This SafeWater® hydrant delivers year-round service outside or in unheated buildings. The control valve is located below the frost line. Raising the lever opens the valve and lowering the lever shuts water off. The lever may be locked closed with a padlock (not included).

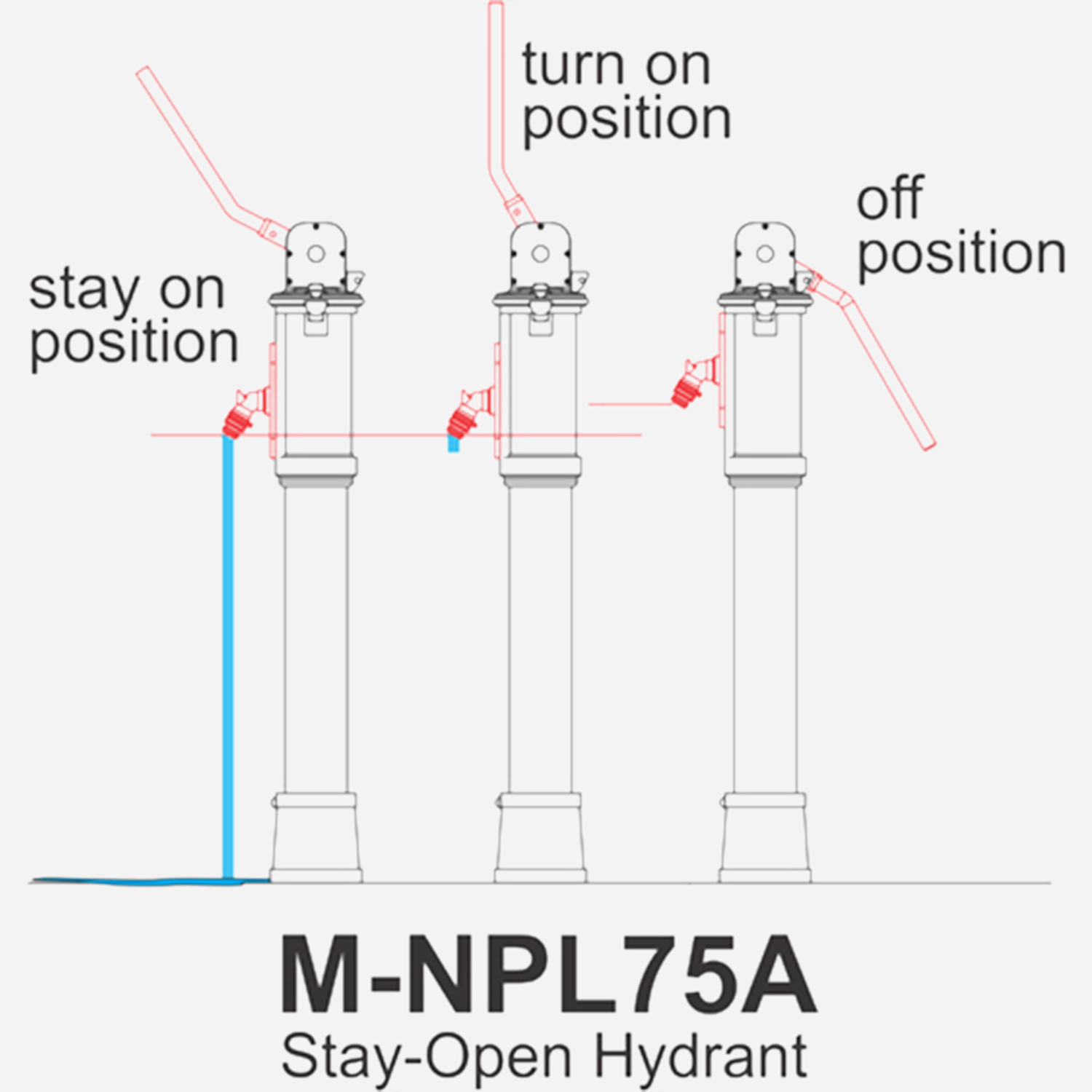

Model M-NPL75A is turned on by raising the handle straight up. The hydrant will stay open if the handle is turned further to the left. After use, water inside the supply column is stored in a reservoir below the frost line and is expelled through the nozzle at the beginning of the next usage. Potable hydrants add protection against surface or underground contamination when all safe water practices are enforced. Recommended maximum operating pressure is 80 psi.

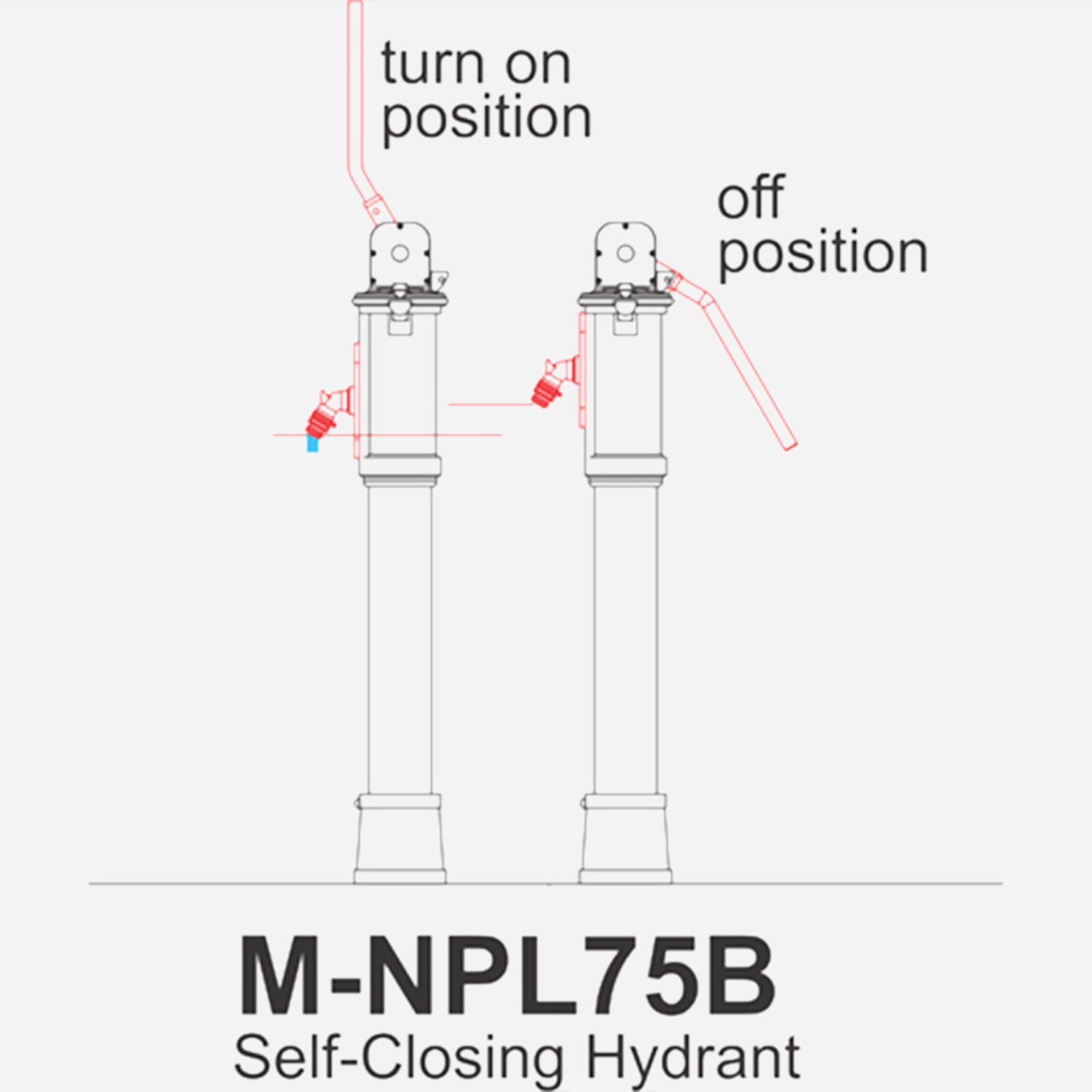

Model M-NPL75B is turned on by raising the handle straight up. The handle will not go to the stay-open position and the water will turn off if the user lets go of the handle. These models meet ADA requirements with the handle taking less than 5 pounds of force. The nozzle is located 28 inch (711 mm) minimum above the ground.
