3/4" Cast Bronze Box Ground Hydrant with Vacuum Breaker

Find A Representative
Model M-V477
Installation Instructions
Installing M-V477 Hydrant
View
Submittal
Submittal M-V477 Hydrant (pdf)
View
Model M-V477

3/4" Cast Bronze Box Ground Hydrant with Vacuum Breaker

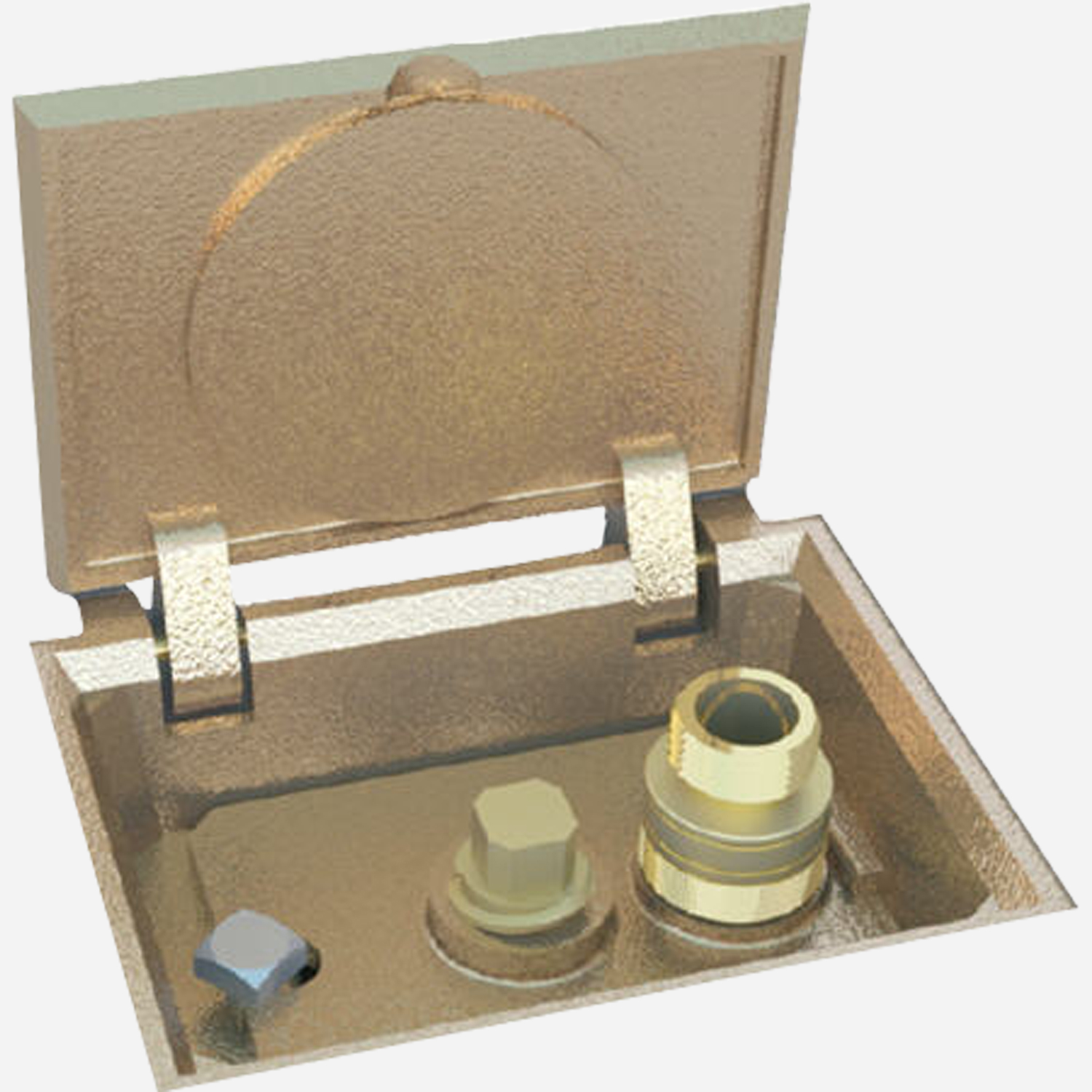

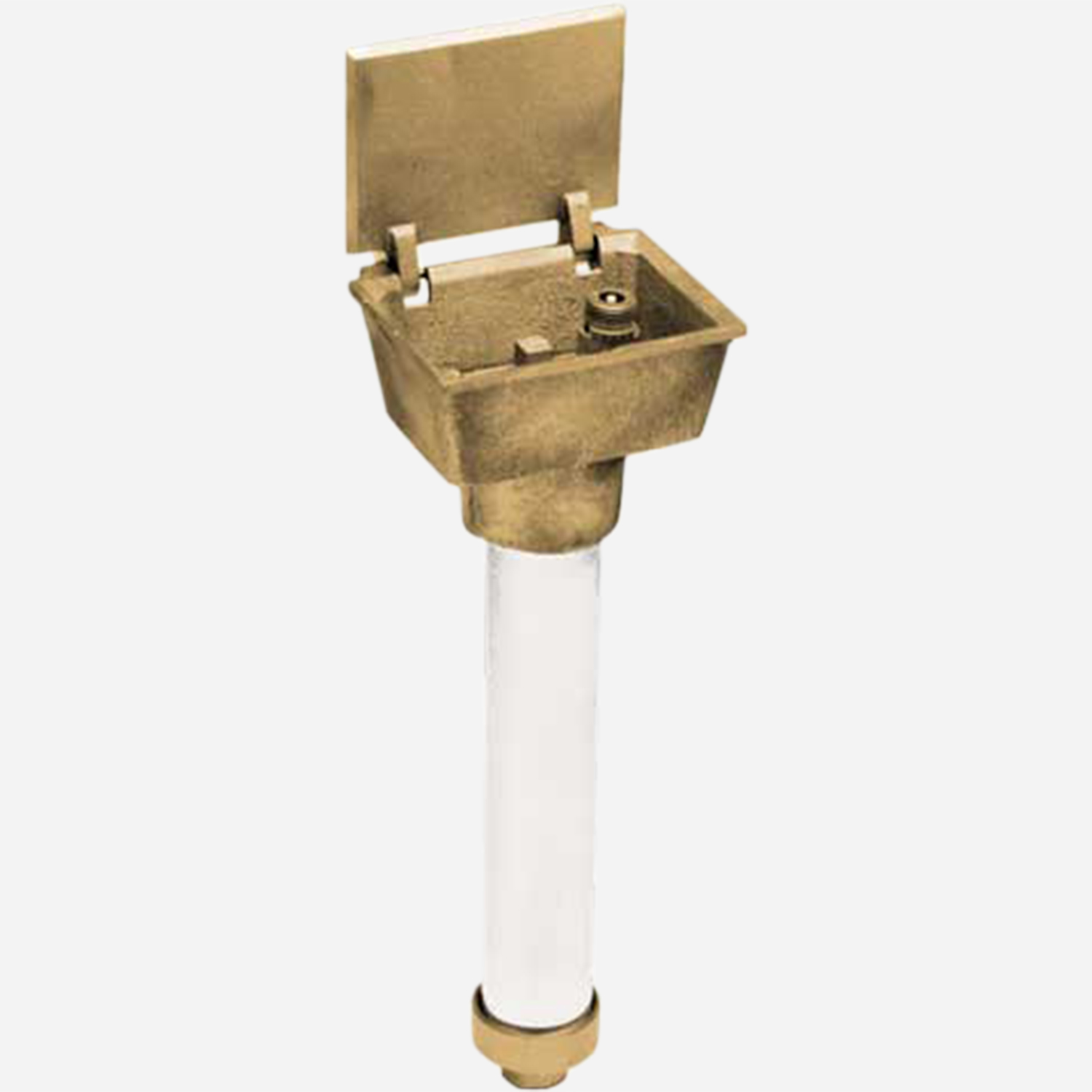

Flush box hydrants are ideal for year-round source of water for commercial, industrial, recreational, and residential installations. These units feature the two-pipe design for long-term use and ease of maintenance. They feature flush-type, freeze resistant hose outlets designed to prevent vandalism and waste of water. The vacuum breaker prevents back siphonage and the danger of pollution to the water supply. The operating key works both the operation of the hydrant. This hydrant features galvanized pipe casting, bottom inlet and bronze box and lid.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing M-V477 Hydrant
3/4" Boxed Ground Hydrant with Bronze Box and Vacuum Breaker0165 KB
PDF icon
Submittals
PDF icon
Submittal M-V477 Hydrant (pdf)
3/4" Freeze-Resistant, Flush-Mounted Box Hydrant with Hinged Lid, Vacuum Breaker, Heavy Duty Bronze Casting, 3/4" Bottom Supply Connection0186 KB
drawing/dwg icon
Revit/BIM/CAD Drawings
drawing/dwg icon
M-V477 Hydrant (dwg)
3/4" Boxed Ground Hydrant with Bronze Box and VB0100 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants024 KB
PDF icon
Technical Data Sheets
PDF icon
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Discharge Rates for Murdock Cast Iron Hydrants028 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 221119, Domestic Water Piping Specialties (doc)
Murdock Mfg - Domestic Water Piping Specialties0251 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)
Murdock Mfg - Domestic Water Piping Specialties0291 KB
PDF icon
Brochures/Flyers
PDF icon
Hydrants Brochure (pdf)
Hydrants-Wall, Ground, Yard and Roof05 MB
JPG icon
Images
JPG icon
M-V477 Hydrant (hi res)
0.75 Inch Cast Bronze Box Ground Hydrant with Vacuum Breaker0699 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MountingFlush Floor/Ground-Mounted
MaterialCast Bronze Box
Bury Depth2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Freeze-ResistanceYes
Inlet Size3/4"
ActivationLoose Key

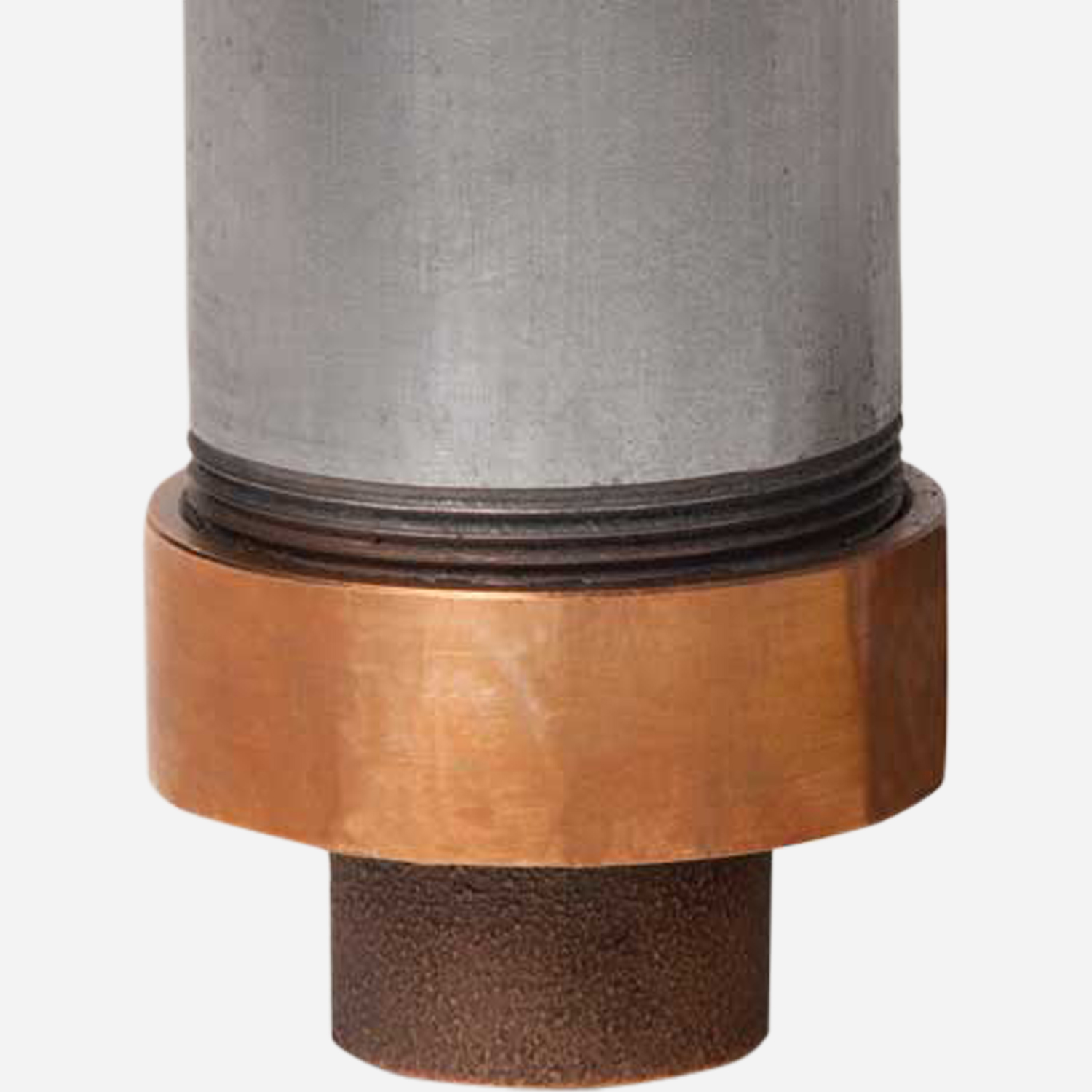

Hydrant Inlet TypeFemale Threaded (Econo) Bottom Inlet
