3/4" Econo Cast Iron Box Ground Hydrant with Locking Lid

Find A Representative
Model M-E575
Installation Instructions
Installing M-E575 Hydrant
View
Submittal
Submittal M-E575 Hydrant (pdf)
View
Model M-E575

3/4" Econo Cast Iron Box Ground Hydrant with Locking Lid

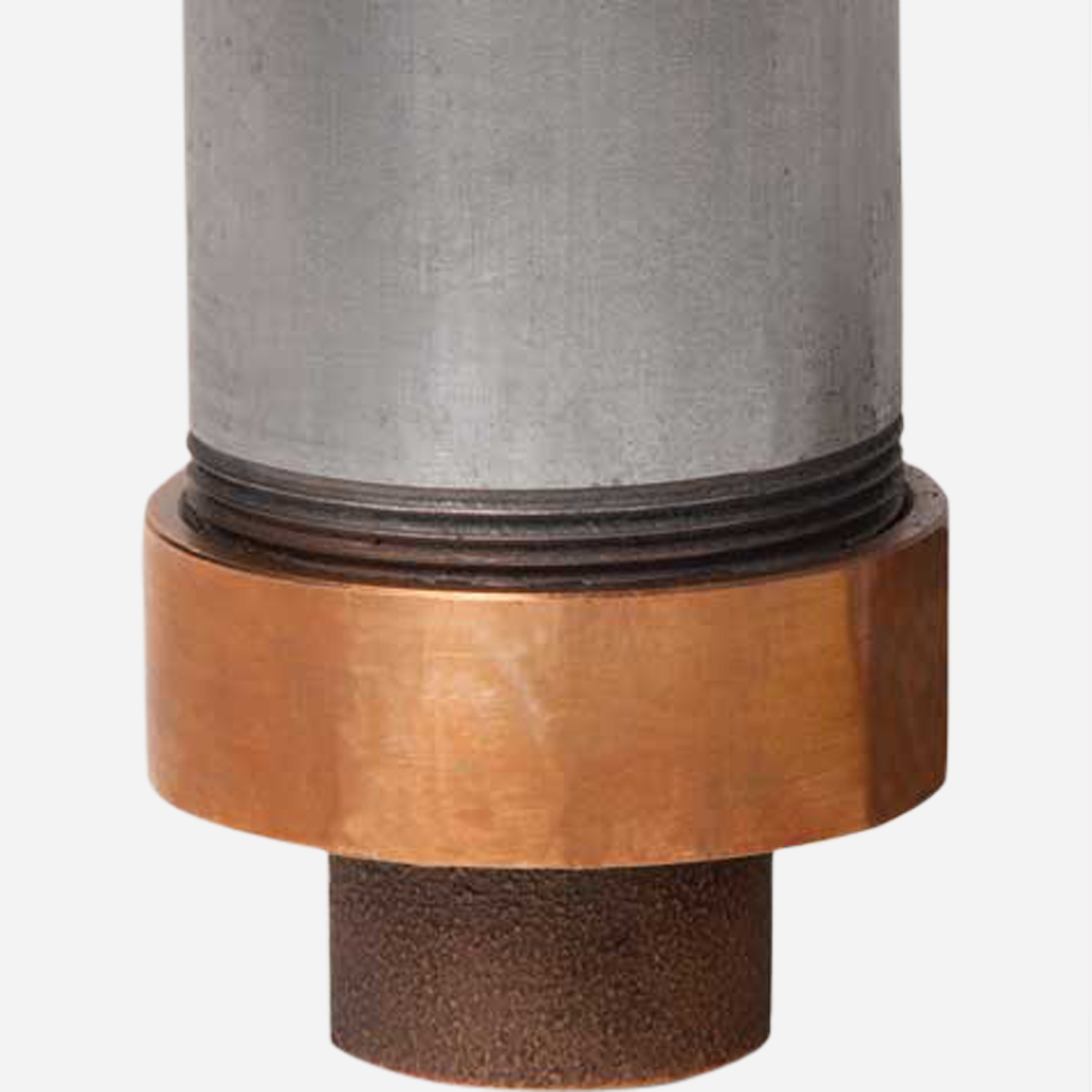

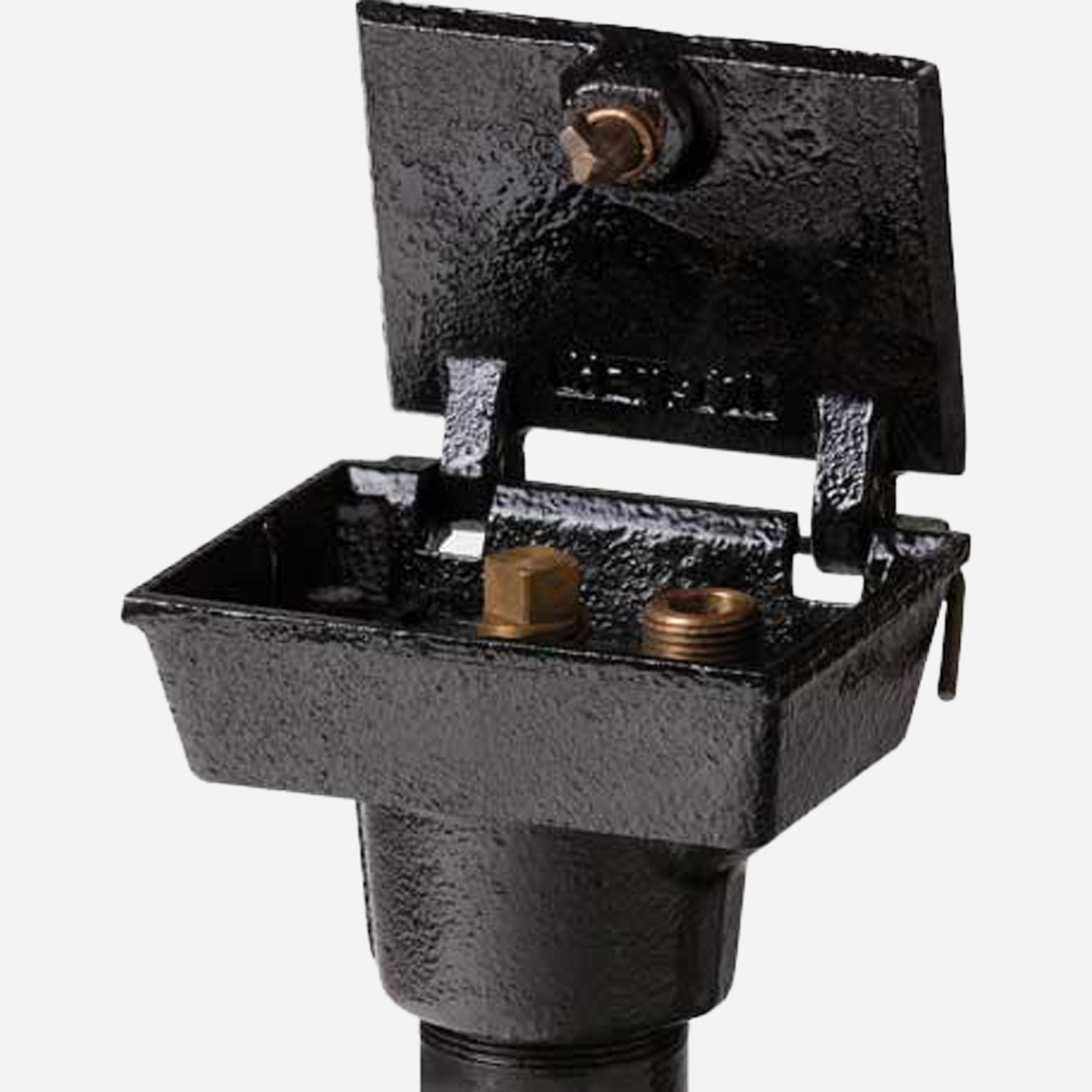

The flush box hydrants are for use where a flush type hose outlet is desired. The hydrant box can be installed in sod, pavement or concrete. The top of the unit is installed flush with surrounding surface and all working parts are located below grade, perfectly concealed and out of the way when the lid is closed. When the lid is lifted and hose is connected, the water supply is turned on with a loose key. Features a one-piece brass bottom connection with inlet and outlet connection. The working parts are removable without digging. These hydrants are ideal for parks, playgrounds, city streets, recreational areas, cemeteries, railroad terminals and lawns. It features a locking lid and bottom inlet.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing M-E575 Hydrant
3/4" Econo Boxed Ground Hydrant with Locking Lid089 KB
PDF icon
Submittals
PDF icon
Submittal M-E575 Hydrant (pdf)
3/4" Econo Boxed Ground Hydrant0196 KB
drawing/dwg icon
Revit/BIM/CAD Drawings
drawing/dwg icon
M-E475, M-E575 Hydrant (dwg)
3/4" Econo Boxed Ground Hydrant, with Cast Iron Box0100 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants024 KB
PDF icon
Technical Data Sheets
PDF icon
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Discharge Rates for Murdock Cast Iron Hydrants028 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 221119, Domestic Water Piping Specialties (doc)
Murdock Mfg - Domestic Water Piping Specialties0251 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)
Murdock Mfg - Domestic Water Piping Specialties0291 KB
PDF icon
Brochures/Flyers
PDF icon
Hydrants Brochure (pdf)
Hydrants-Wall, Ground, Yard and Roof05 MB
JPG icon
Images
JPG icon
M-575, M-6100, M-E575 Hydrant (hi res jpg)
0.75 Inch Econo Cast Iron Box Ground Hydrant with Locking Lid (photo may be used for M-575 or M-6100)0216 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MountingFlush Floor/Ground-Mounted
MaterialCast Iron
Bury Depth2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Freeze-ResistanceYes
Inlet Size3/4"
ActivationLoose Key
Hydrant Inlet TypeFemale Threaded (Econo) Bottom Inlet
