Model M-3812 Series

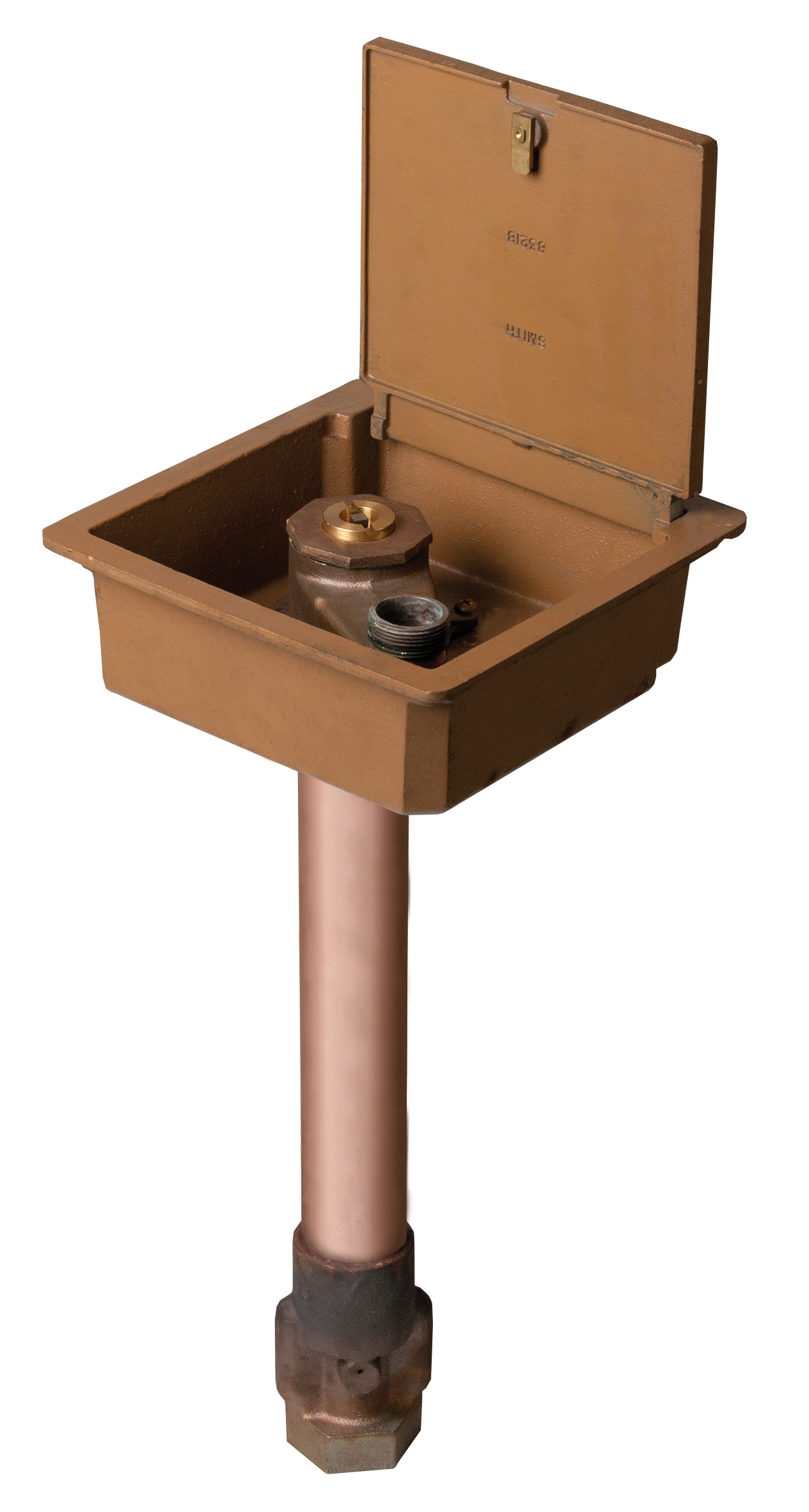

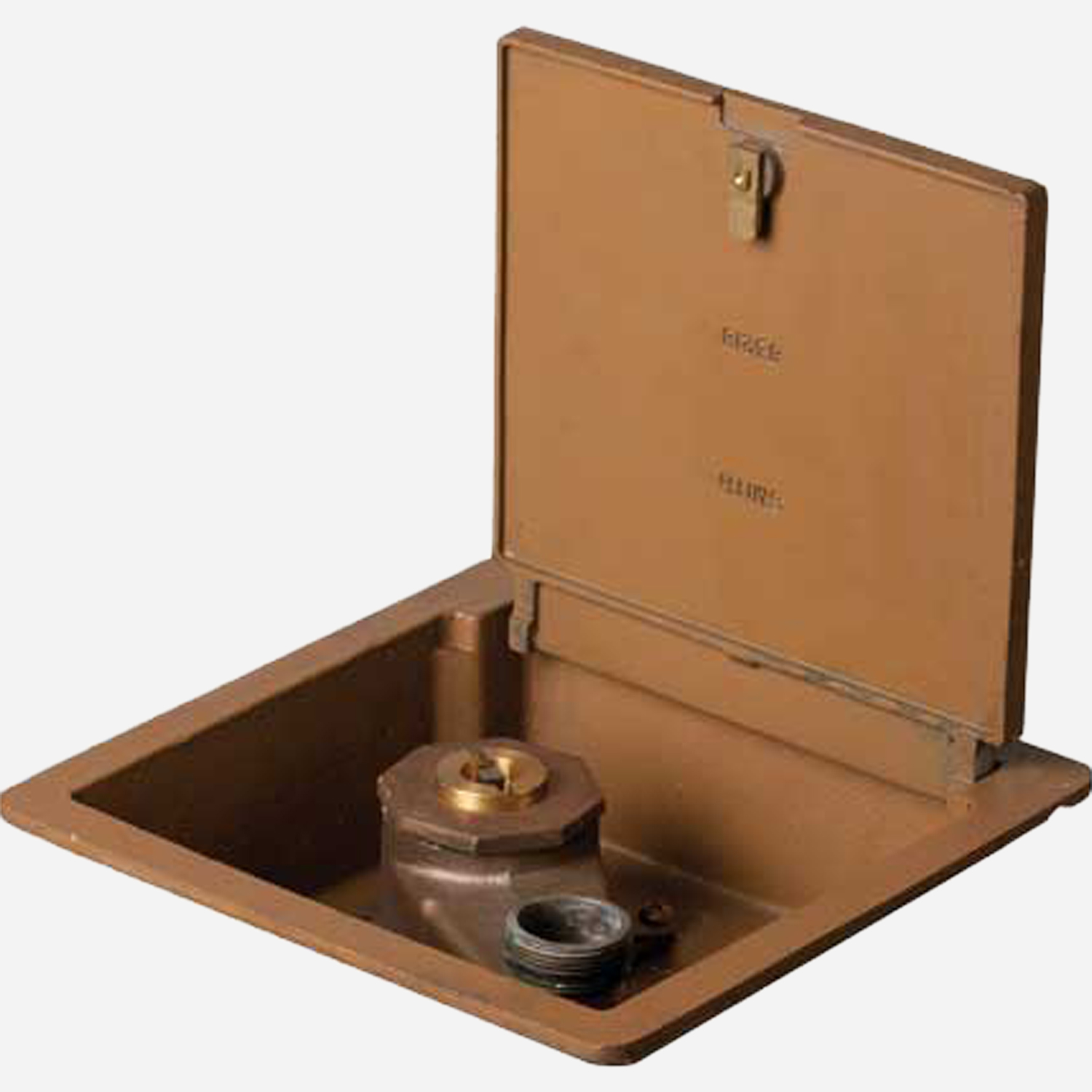

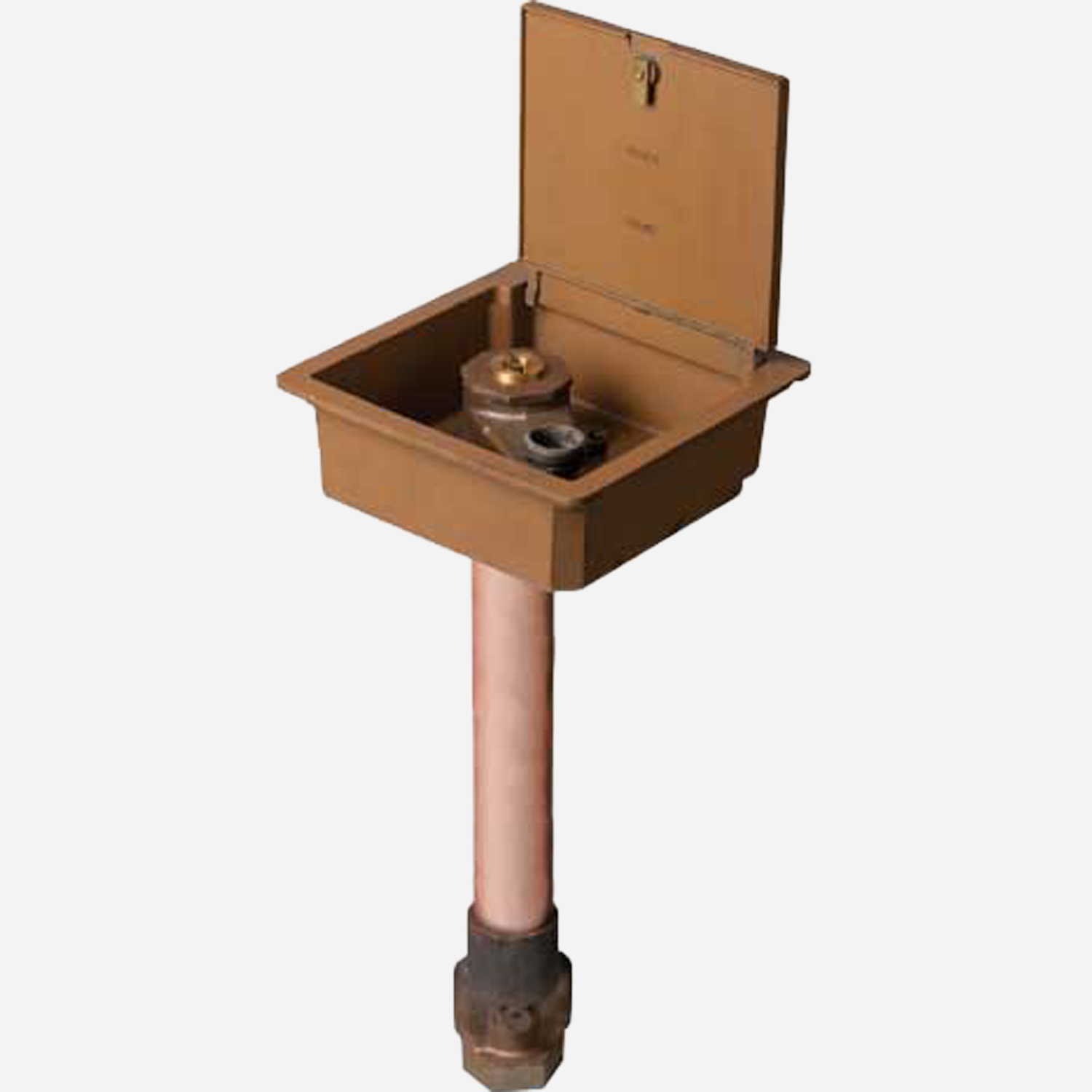

Bronze Ground Hydrant with Shallow Box and Large Inlets

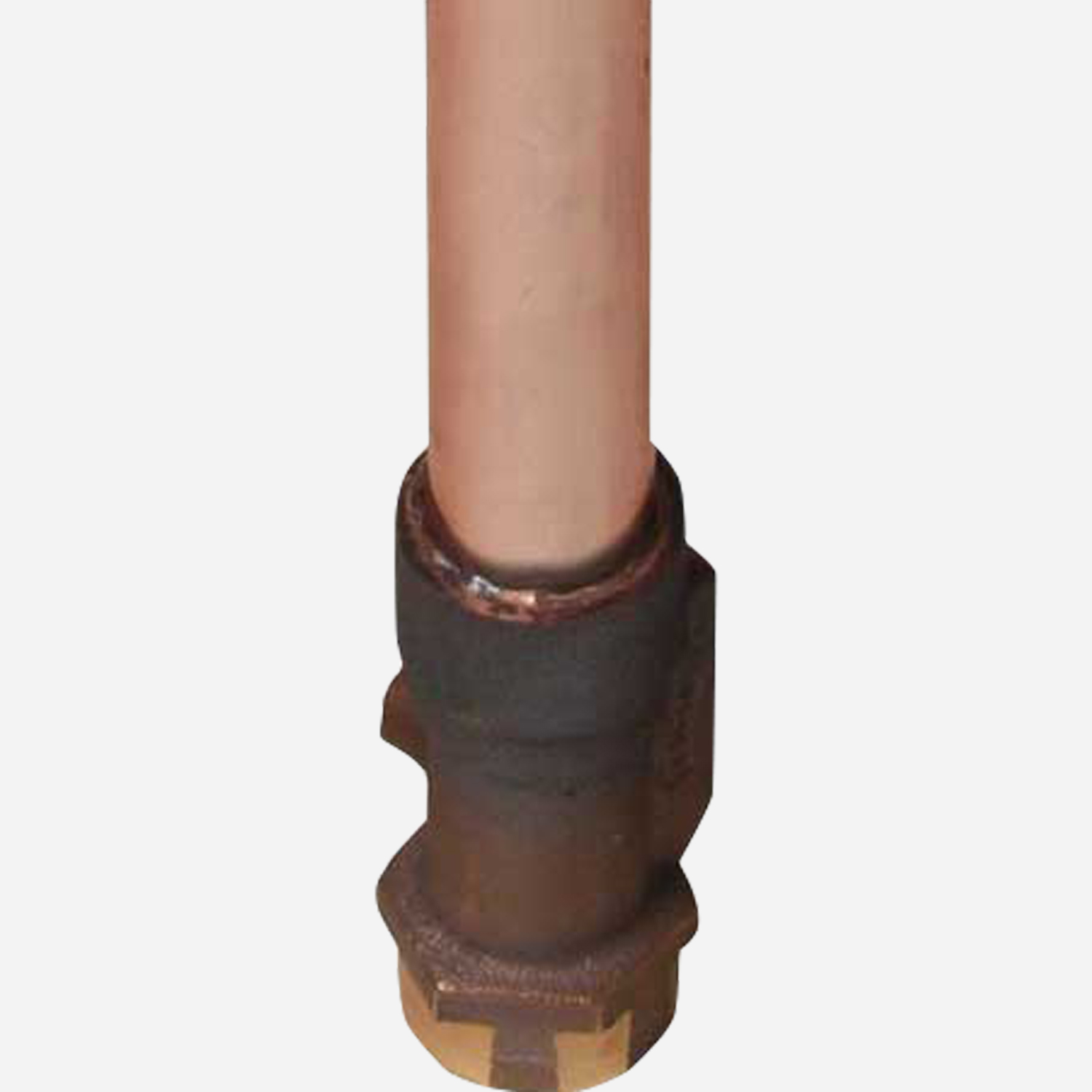

A hydrant with a hinged covered box, for positive protection against freezing when buried outside or in unheated areas and the closing valve is located below the frost line. When hydrant is shut off, water is drained from the casting through the drain hole in the valve housing. The locking cover prevents unauthorized use.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Non-Freeze Ground Box Hydrant [M-3812 | 1-1/4" NPT Inlet and Hose Connection; M-3813 | 1-1/2" NPT Inlet and Hose Connection; M-3813 | 2" NPT Inlet and Hose Connection] | 0 | 575 KB | ||
 | | Boxed Ground Hydrant - 1-1/2" Inlet Connection | 0 | 240 KB | ||
 | | Boxed Ground Hydrant - 1-1/4" Inlet Connection | 0 | 123 KB | ||
 | | Murdock Mfg - Domestic Water Piping Specialties | 0 | 251 KB | ||
| | Murdock Mfg - Domestic Water Piping Specialties | 0 | 291 KB | ||
| | Hydrants-Wall, Ground, Yard and Roof | 0 | 5 MB | ||
 | | 0.75 Inch Bronze Ground Hydrant with Shallow Box with Flashing Flange (M-3811F has 1 inch inlet) | 0 | 801 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Flush Floor/Ground-Mounted |
| Material | Cast Iron, Bronze |
| Inlet Size | 1-1/4" |
| Activation | Loose Key |
| Variations | M-3812: 1-1/4" Inlet, M-3813: 1-1/2" Inlet, M-3814: 2" Inlet |
