3/4" Cast Bronze Box Ground Hydrant with Locking Lid

Find A Representative
Model M-577
Installation Instructions
Installing M-577 Hydrant
View
Submittal
Submittal M-577 Hydrant (pdf)
View
Model M-577

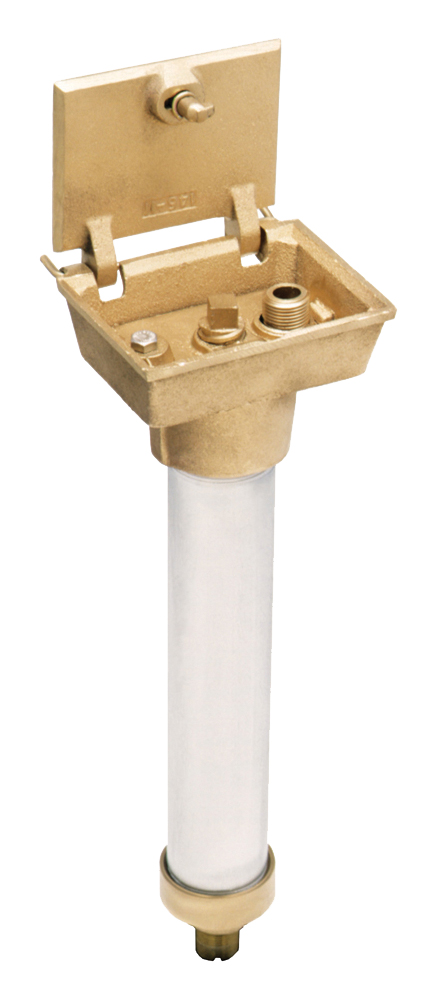

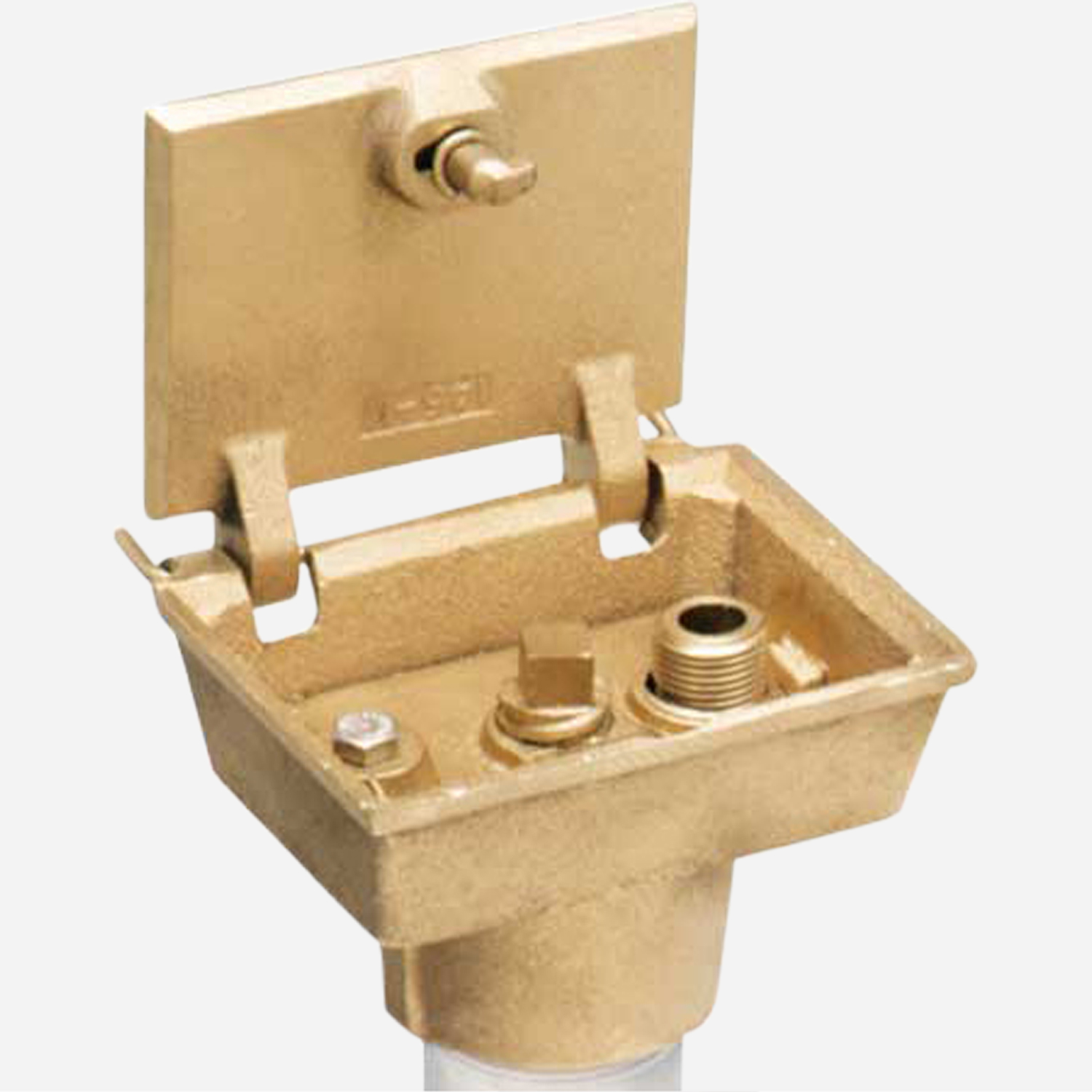

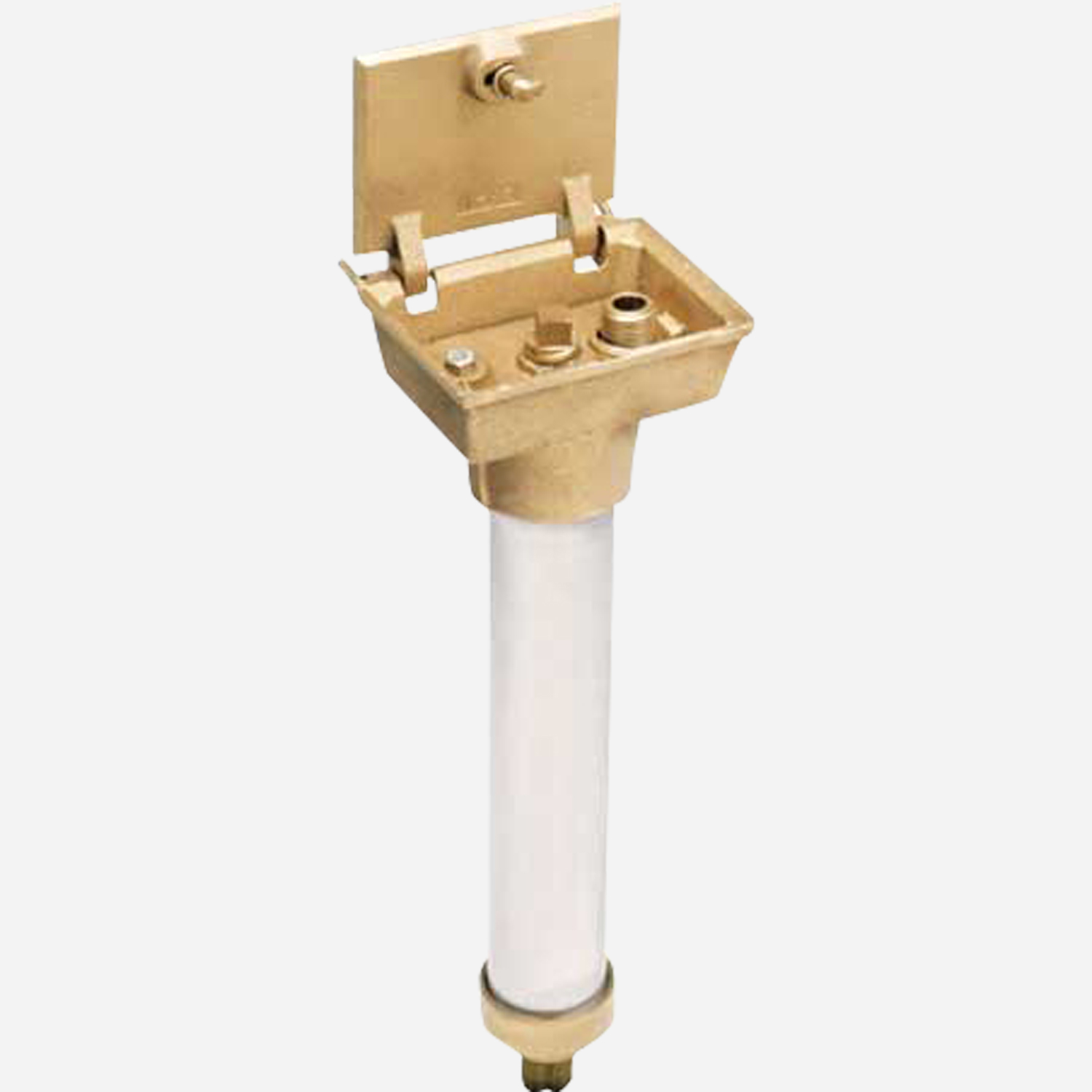

3/4" Cast Bronze Box Ground Hydrant with Locking Lid

3/4" Boxed Ground Hydrant with Bronze Box, Galvanized Casing, Bottom Inlet Flush box hydrants are ideal for year round water access that is inconspicuous and unobtrusive. These units feature the two-pipe design for long-term use and ease of maintenance. The top of the unit is installed flush with surrounding surface and all working parts are located below grade, perfectly concealed and out of the way when the lid is closed. When the lid is lifted and hose is connected, the water supply is turned on with a loose key. Features a one-piece brass bottom connection and inlet and outlet connection. The working parts are removable without digging. These hydrants are ideal for parks, playgrounds, city streets, recreational areas, cemeteries, railroad terminals and lawns. This unit features a locking lid.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing M-577 Hydrant
3/4" Boxed Ground Hydrant with Bronze Box and Locking Lid089 KB
PDF icon
Submittals
PDF icon
Submittal M-577 Hydrant (pdf)
3/4" Boxed Ground Hydrant0148 KB
drawing/dwg icon
Revit/BIM/CAD Drawings
drawing/dwg icon
M-6150 Hydrant (dwg)
1-1/2" Boxed Ground Hydrant and Locking Lid098 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants024 KB
PDF icon
Technical Data Sheets
PDF icon
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Discharge Rates for Murdock Cast Iron Hydrants028 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 221119, Domestic Water Piping Specialties (doc)
Murdock Mfg - Domestic Water Piping Specialties0251 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)
Murdock Mfg - Domestic Water Piping Specialties0291 KB
PDF icon
Brochures/Flyers
PDF icon
Hydrants Brochure (pdf)
Hydrants-Wall, Ground, Yard and Roof05 MB
JPG icon
Images
JPG icon
M-577 Hydrant (hi res jpg)
0.75 Inch Cast Bronze Box Ground Hydrant with Locking Lid0159 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MountingFlush Floor/Ground-Mounted
MaterialCast Bronze Box
Bury Depth2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Freeze-ResistanceYes
Inlet Size3/4"
ActivationLoose Key
Hydrant Inlet TypeFemale Threaded (Econo) Bottom Inlet
